1 Bảng Mạch Bảo Vệ Pin Lithium 3s 11.1v 12.6v 25a 18650 Li-Ion
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Dụng cụ điện và thiết bị lớn > Thiết bị khác > 1 Bảng Mạch Bảo Vệ Pin Lithium 3s 11.1v 12.6v 25a 18650 Li-Ion
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Giới thiệu 1 Bảng Mạch Bảo Vệ Pin Lithium 3s 11.1v 12.6v 25a 18650 Li-Ion
❄ Welcome To Chitengyesuper ❄Brand new

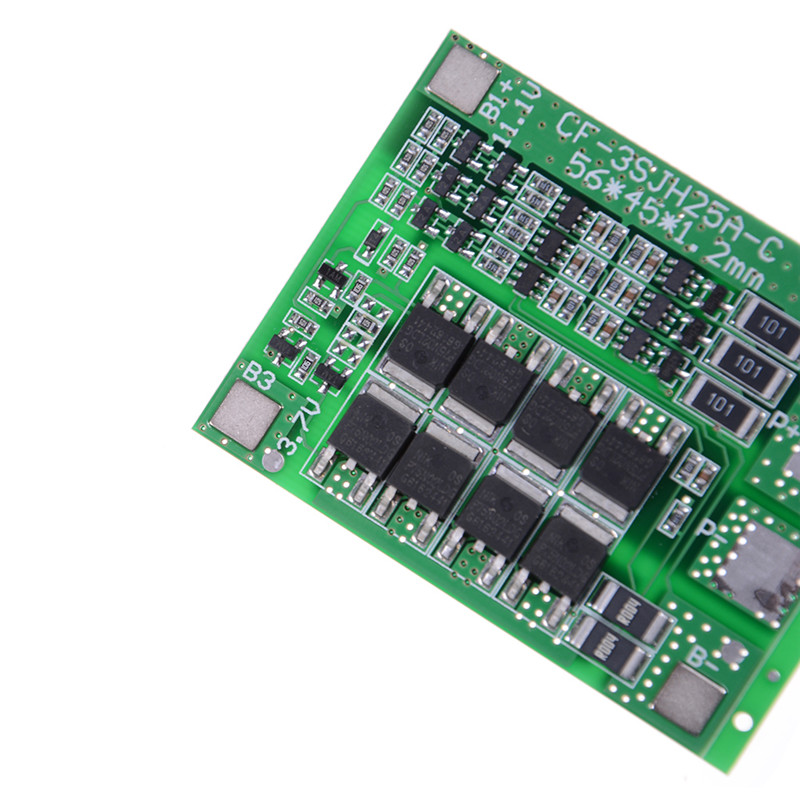

Size: about 56mm*45mm*1.2mm
Over voltage range: 4.25-4.35v±0.05v
Over discharge voltage range: 2.3-3.0v±0.05v
Maximum operating current: 0-25A
Maximum transient current: 34-40A
Quiescent current: less than 30uA
Internal resistance: less than 100mΩ
Working temperature: -40---+50℃
Storage condition: -40-- +80℃
Effective life: more than30000h
Short circuit protection: Yes, delayed self recovery
Precautions:

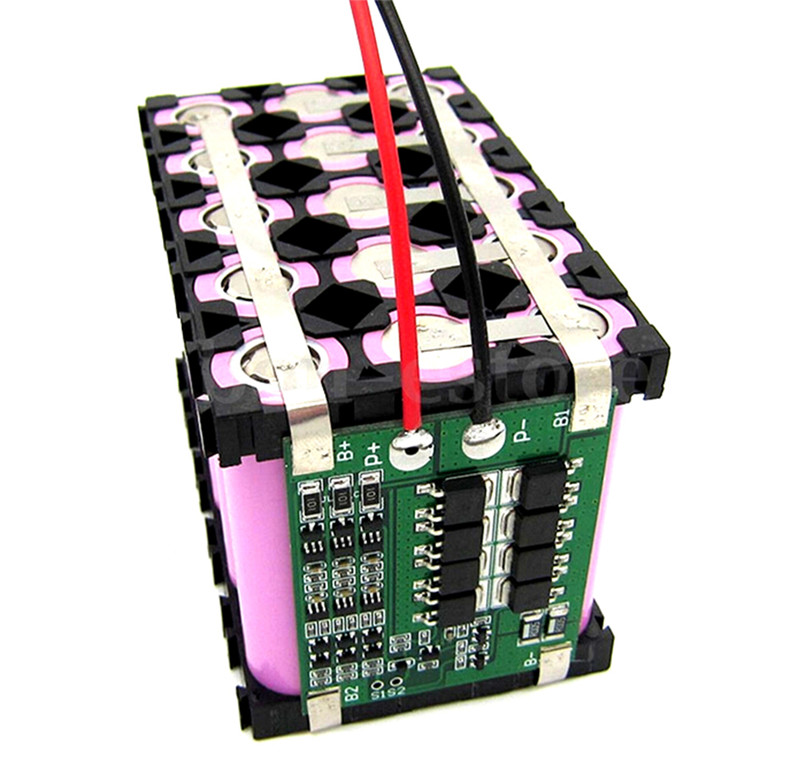

Strictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B+), Do not deliberately short circuit.
After the line is connected, Need to charge first, then have output.
When the battery is connected in series with 3 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use.
Do not mix the good battery and the battery.
The capacity of the battery internal resistance is closer will be better.
Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying
Note:
Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
Please allow 1-5mm differs due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
Package Included: 1PCS X PCB Protection Board
