Giới thiệu 1 Bảng Mạch Khuếch Đại Âm Thanh Mini Oep30W 30w D Class

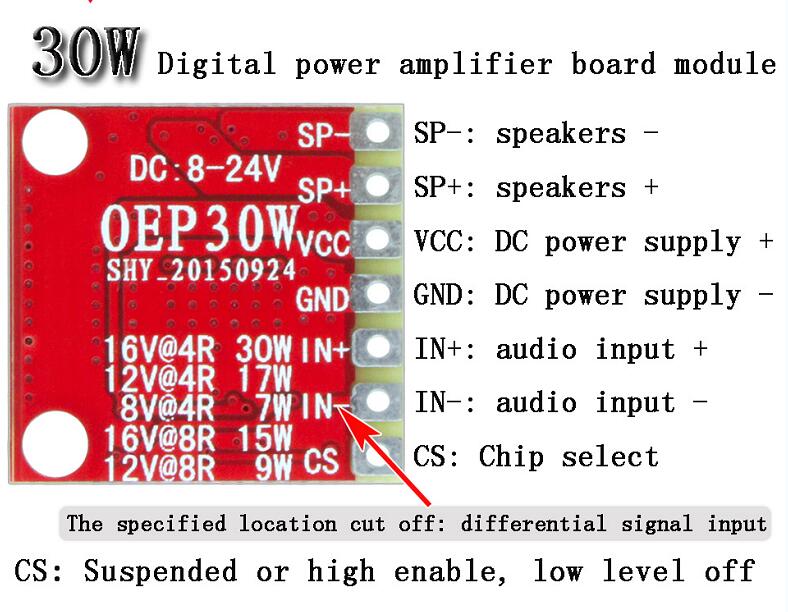

MINI OEP30W Mono Digital Amplifier Module Amplifier Board DIY Kit 30W D ClassPlease see the picture for product wiring instructions! ! !

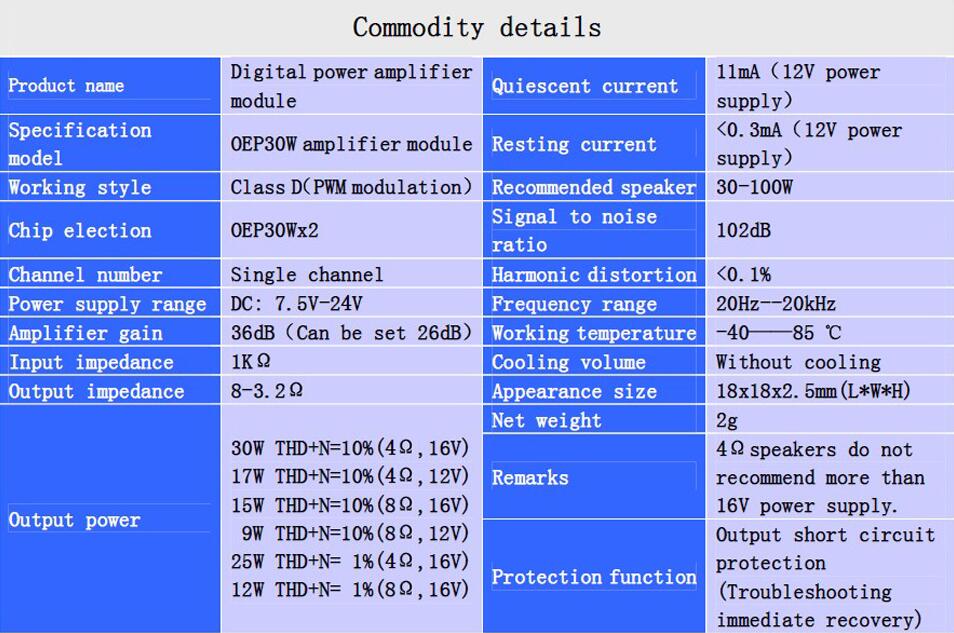

Please see the picture for detailed product parameters! ! !
Product Features:
Output short circuit protection
Mini small size, easy to install
Can be differential input (need to cut off the circuit designated parts)
Precautions:
1. power amplifier board power, the hand can not touch the board components on the pin, because the human interference signal interference digital amplifier timing, resulting in damage to the chip, as well as the human body with a strong case of static breakdown of components, the human body static The basic knowledge of harm we still want to popularize the next.
2. the power supply voltage to be stable, as far as possible the use of switching power supply and battery power, if the power ripple is too serious, you can add capacitance filter. Battery-powered without additional capacitor filtering. Power supply must not exceed the board operating voltage, or burn the chip, digital amplifier special Jiaoqi, better than analog power amplifier, work completely different.
3. 8 ohm speakers basically do not need to add heat sink, less than 8 ohm speakers, if the chip temperature is higher than 60 degrees, due to immediately stop working, plus heat sink fan, otherwise the temperature will immediately burn the chip.
Package Included:
1pcs * MINI OEP30W Mono Digital Amplifier Module
Before purchase:
1. All the goods are in stock and we will dispatch immediately if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.Use the vouchers for more saving.
Shipment：
1.1-2 days to ship(except for the pro-order item)
After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or video
#MINI #OEP30W #Mono #Digital #Amplifier #Module #Amplifier #Board #DIY #Kit #30W #D Class
