Specification:
Condition: 100% brand new and high quality

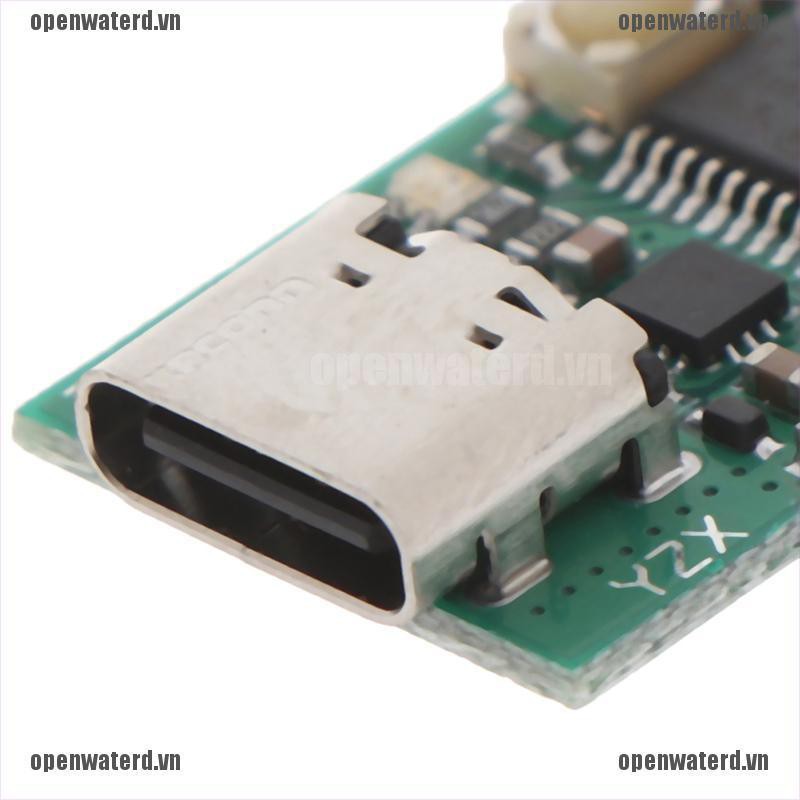

Product Name: Decoy fast charge trigger detector
Color: As picture shwon
Power: 100W
Voltage: 3-20V
Current: 0-5A

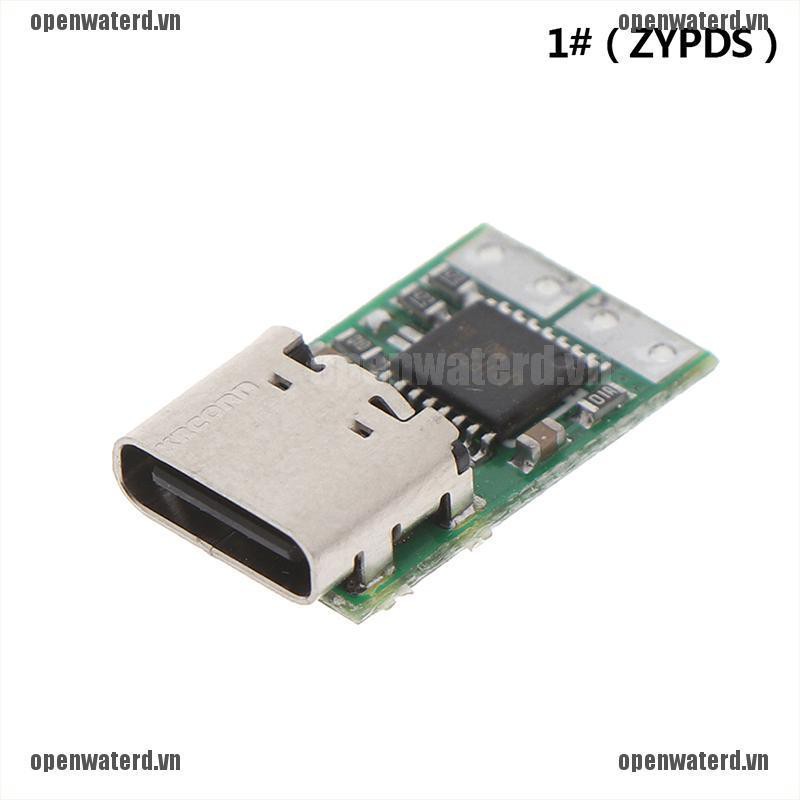

ZYPDS Super Mini Single Function Instructions:
Type-C base input is super compatible, fully supporting traditional mother port or direct stripline PD adapter.
Delivery at random 15V or 20v, please correct the required voltage for reuse!
Volume 10 mm*18 mm*4 mm. It does not contain a dime in the picture.
TC base life seconds male head several streets, TC shrapnel in the male head, insert loose contact is bad are male head pot.
The original IP magic version of pure hardware triggered PD, stable and reliable program-free, very small size, copying and imitating the whole family.
Maximum power support to 100W, good compatibility, low power consumption, fast decoy speed.
It is very suitable for the output of PD to DC line to be used as notebook and so on. After welding the output line, the heat shrinkable pipe can be retracted.
The maximum trigger logic of 15V or 20V can be set, and the yellow ring pad can be connected with a drop of solder to set 20V without 15V.
Trigger logic: The trigger PD adapter supports a voltage less than or equal to the set value.
For example, if 15V is set and 59 20V is supported by the adapter, 9V is triggered.
Give a 7 mm tape heat shrinkable pipe section, weld the wire sleeve and then heat it with air gun and firearm to shrink the damp-proof, short-circuit and break-proof wire.
Supporting 65 W Equivalent Cost-effective Strip-line PD Power Supply for Millet
Package Included:1 x Decoy fast charge trigger detector
