[1 CON] (SOP) IC Dán A332J SOP-16 Trắng (SMD) (HCPL-332J HCPL-A332J ACPL-332 A332)

Giới thiệu [1 CON] (SOP) IC Dán A332J SOP-16 Trắng (SMD) (HCPL-332J HCPL-A332J ACPL-332 A332)

IC A332J SOP-16 Trắng (SMD Dán) (HCPL-332J HCPL-A332J ACPL-332 A332)

Mô tả:
Description
2.5 Amp Output Current IGBT Gate Driver Optocoupler

Thông số kỹ thuật:
- Under Voltage Lock-Out Protection (UVLO) withHysteresis
- Desaturation Detection
- Miller Clamping
- Open Collector Isolated fault feedback
- “Soft” IGBT Turn-off
- Fault Reset by next LED turn-on (low to high) afterfault mute period
- Available in SO-16 package
- Safety approvals: UL approved, 5000 VRMS for 1minute, CSA approved, IEC/EN/DIN-EN 60747-5-5approved VIORM = 1230 VPEAKSpecifications• 2.5 A maximum peak output current
- 250 ns maximum propagation delay over temperaturerange
- 100 ns maximum pulse width distortion (PWD)
- 50 kV/μs minimum common mode rejection (CMR) atVCM = 1500 V
- ICC(max) < 5 mA maximum supply current
- Wide VCC operating range: 15 V to 30 V overtemperature range
- 1.7 A Miller Clamp. Clamp pin short to VEE if not used
- Wide operating temperature range: –40°C to 105°CApplications
- Isolated IGBT/Power MOSFET gate drive
- AC and brushless DC motor drives
- Industrial inverters and Uninterruptible Power Supply(UPS)

Datasheets:
https://datasheetspdf.com/pdf/742951/AVAGO/ACPL-332J/1
..............................................................................
Điện tử Minh Nguyên CHIPN24
- 565/19 Bình Thới, P.10, Q.11, TP.HCM
- Website: https://chipn24.com
- Bán hàng: 028.6264.1482 - 0965.605.840 - 0868.532.813 - 0868.532.813

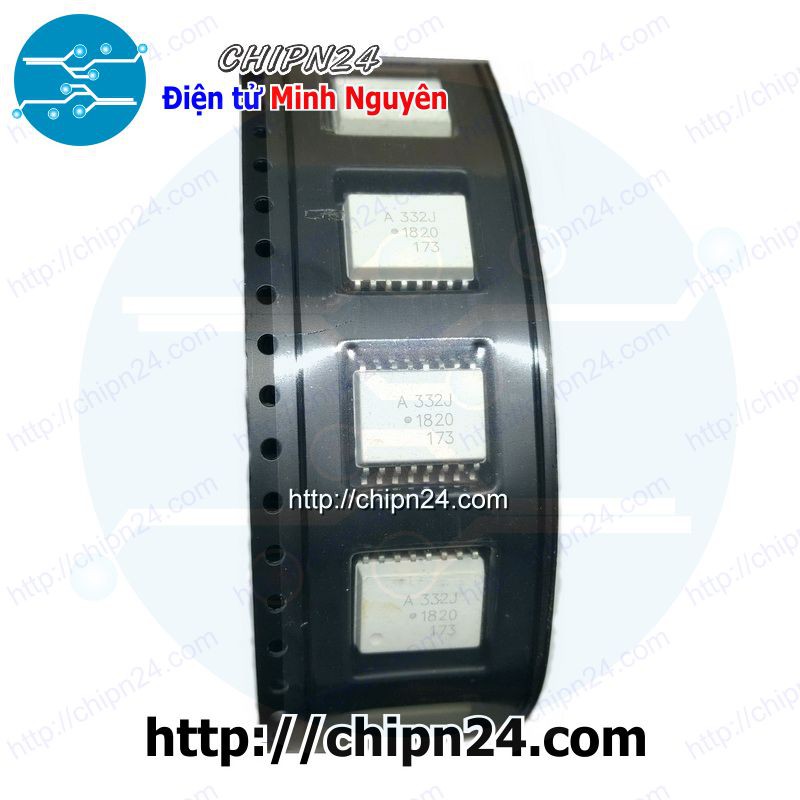

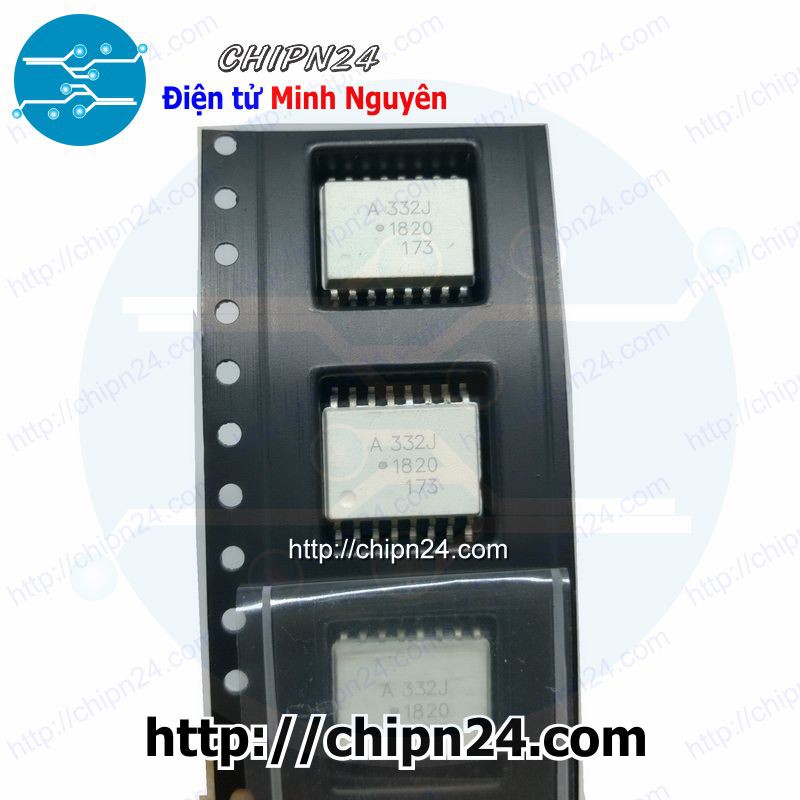

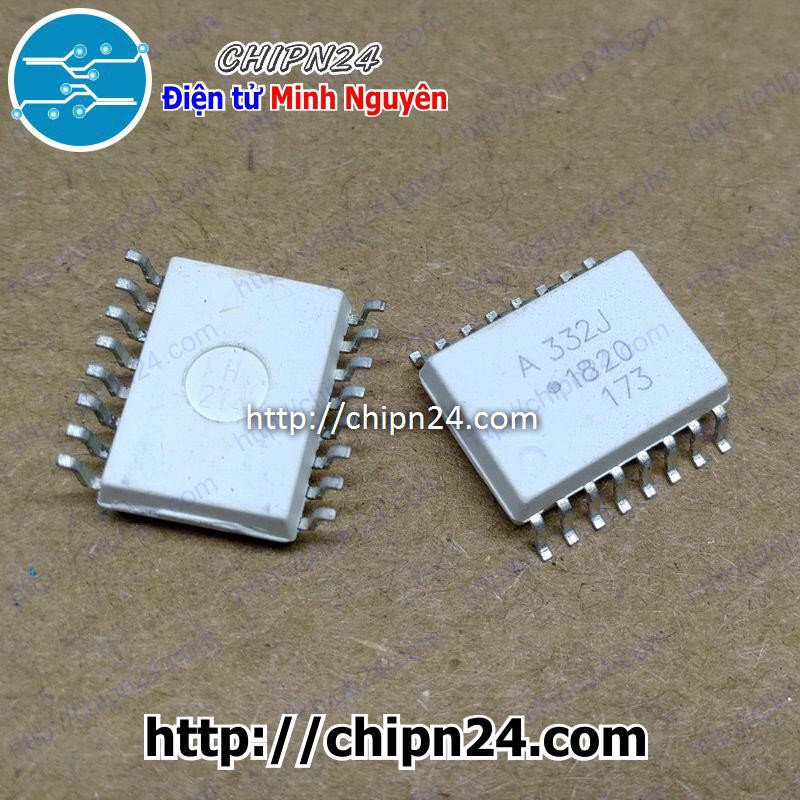

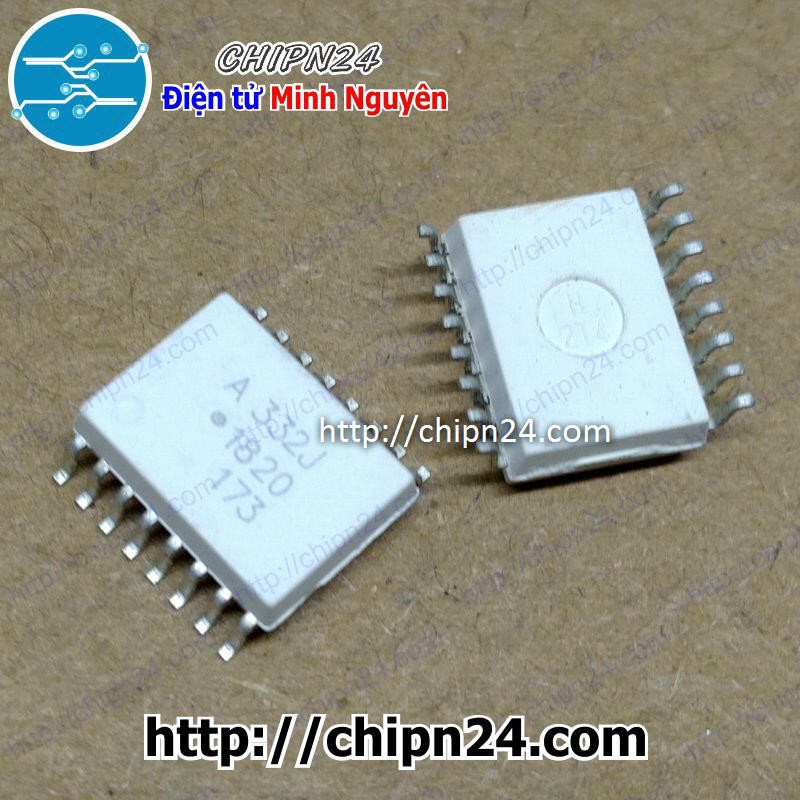

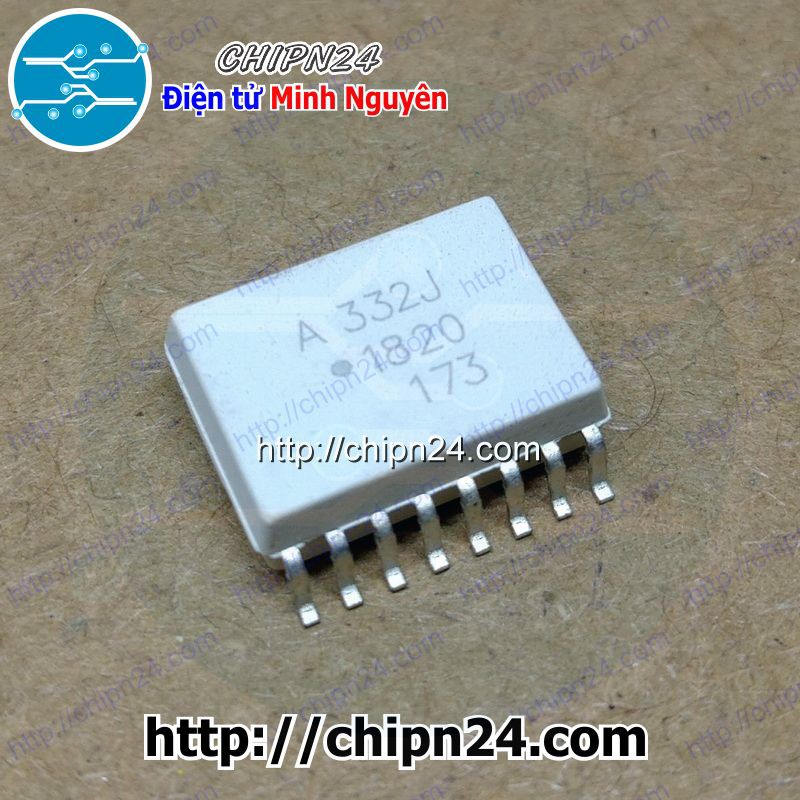

Hình ảnh sản phẩm
