[1 CON] (SOP) Mosfet Dán IRF9640 TO-263 11A 200V Kênh P (IRF9640S 9640)

Giới thiệu [1 CON] (SOP) Mosfet Dán IRF9640 TO-263 11A 200V Kênh P (IRF9640S 9640)

Mosfet Dán IRF9640 TO-263 11A 200V Kênh P (IRF9640S 9640)

Description
MOSFET P-CH 200V 11A D2PAK
Detailed Description
P-Channel 11A (Tc) 3W (Ta), 125W (Tc) Surface Mount D2PAK

Thông số kỹ thuật:
- Package: Tube
- Part Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Current - Continuous Drain (Id) @ 25°C: 11A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 500mOhm @ 6.6A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Vgs (Max): ±20V
- FET Feature: -
- Power Dissipation (Max): 3W (Ta), 125W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Drain to Source Voltage (Vdss): 200 V
- Gate Charge (Qg) (Max) @ Vgs: 44 nC @ 10 V
- Input Capacitance (Ciss) (Max) @ Vds: 1200 pF @ 25 V

Datasheets:
https://media.digikey.com/pdf/Data%20Sheets/Vishay%20Siliconix%20PDFs/IRF(SiHF)9640(S,L).pdf
..............................................................................
Điện tử Minh Nguyên CHIPN24
- 565/19 Bình Thới, P.10, Q.11, TP.HCM
- Website: https://chipn24.com
- Bán hàng: 028.6264.1482 - 0965.605.840 - 0868.532.813 - 0868.532.813

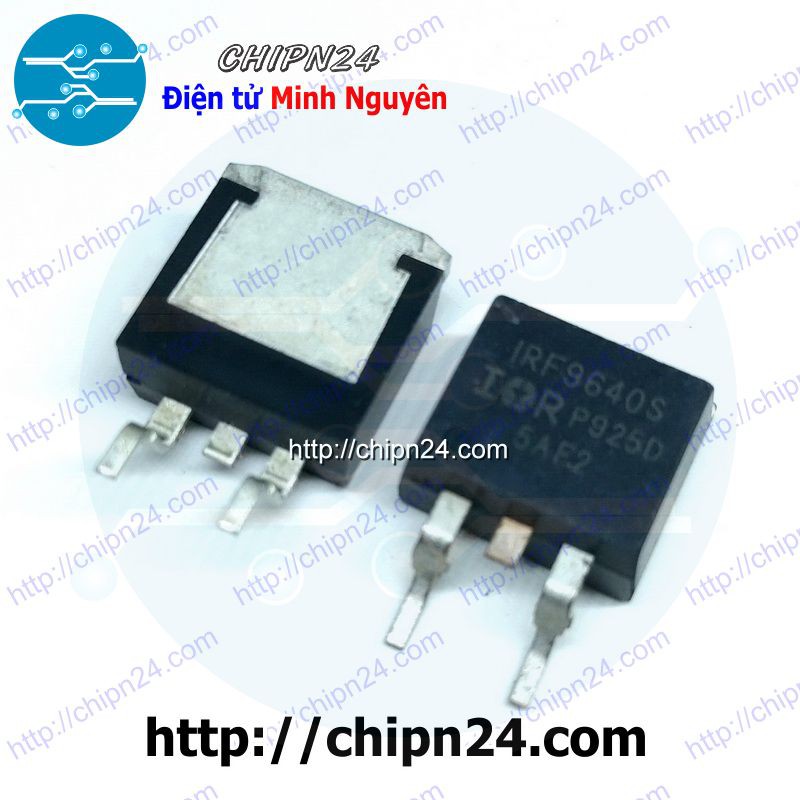

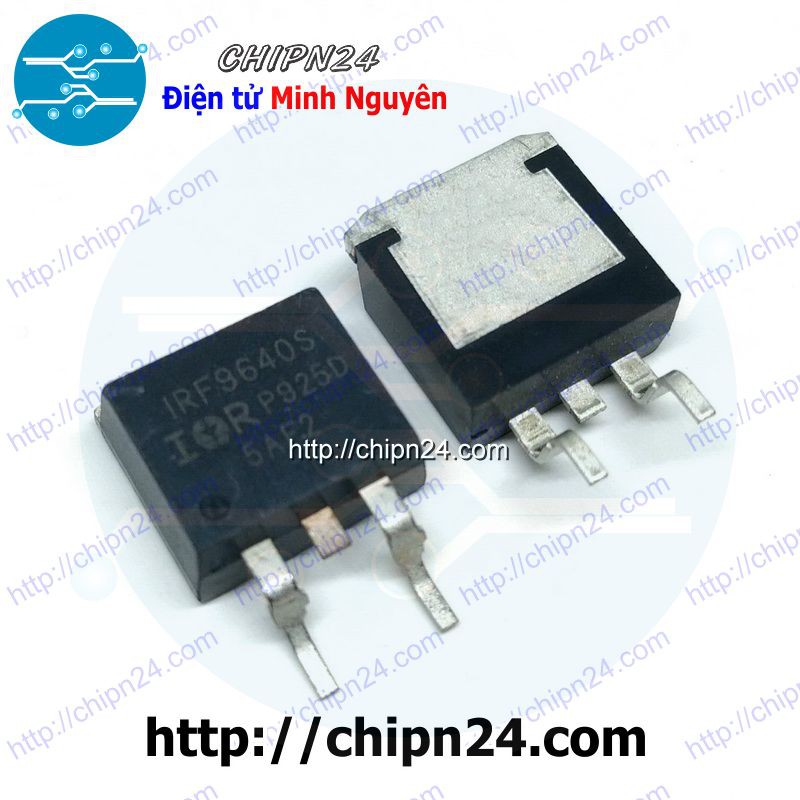

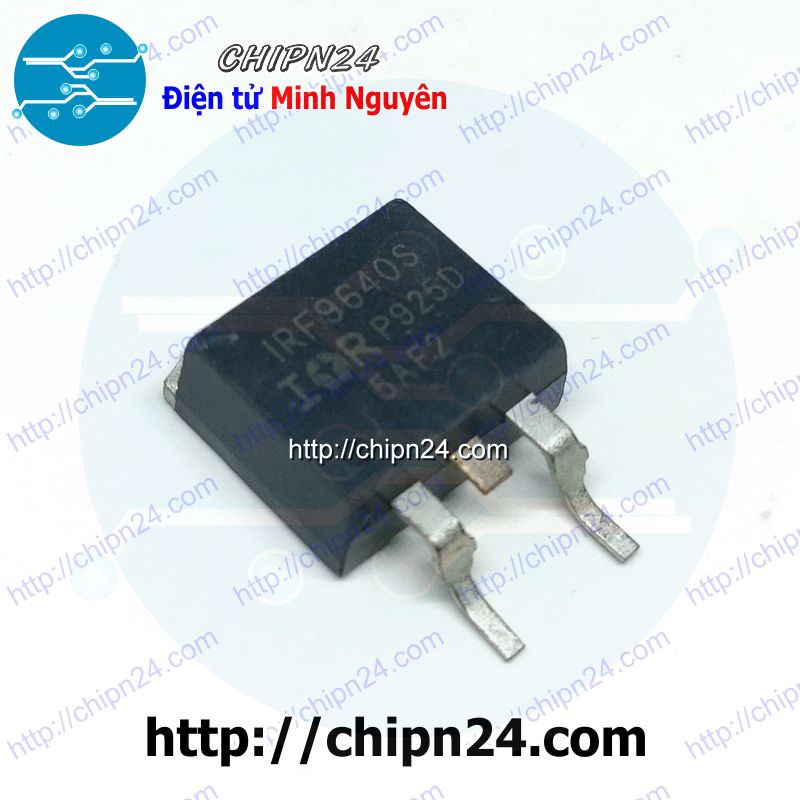

Hình ảnh sản phẩm
