1 công tắc rơ le không dây 433mhz 10A kênh
Mô tả ngắn
Thiết Bị Điện Tử > Loa > Máy nghe nhạc > 1 công tắc rơ le không dây 433mhz 10A kênh
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Sản phẩm tương tự
Giới thiệu 1 công tắc rơ le không dây 433mhz 10A kênh
✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Feature:
1. The two relays are learned separately, which is convenient for you to expand the application when using multiple control combinations.
2. Programmable receivers and transmitters can be flexibly configured in quantity and working mode, with good performance and sensitivity.
3. PVC+ printed circuit board can effectively improve the quality and reliability of the equipment and prolong the service life.
4. Only a simple installation can realize remote control, bringing more convenience to your life.
5. It can be widely used in various intelligent field control, such as motor vehicles, LED lights, electric doors, electric curtains, etc.
Specification:
Item Type: Access Controller
Material: PVC + PCB
Model: AK110-1
Channel: 1 Channel
Frequency: 433.92MHz
Working Voltage: AC85V-250V
Encoding Type: Learning Code
Maximum Working Current: 10A
Output Mode: No Voltage Output ( Also Known As Contact Output)
Buck Method: Resistance Capacitance (RC)
Built-In Button Battery: 80mAh ( Remote Control)
Battery Model: CR1620
Voltage: 85V 110V 220V 230V 250V
Package List:

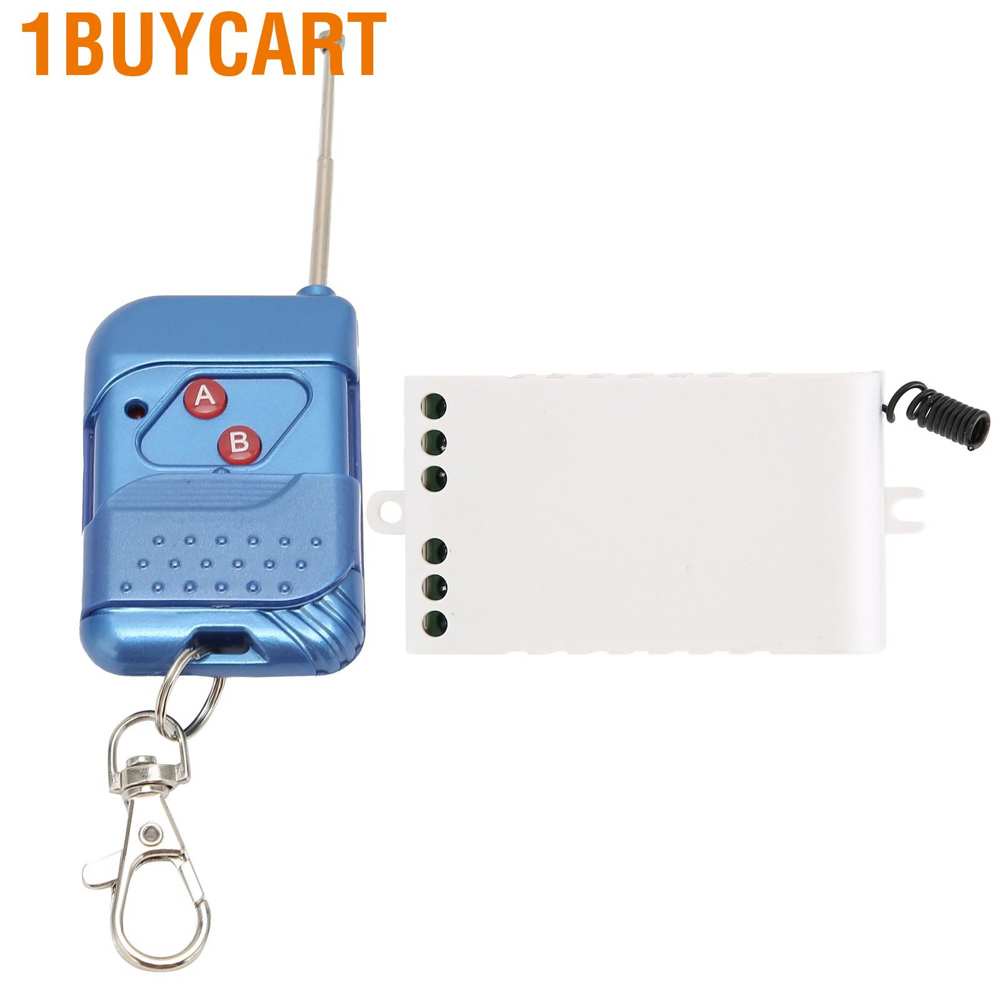

1 x Receiver (with Cover)1 x Transmitter (with Battery)
How to Use
Regarding learning and clearing methods:Learn:The receiver inputs 220V, the LED indicator is on, press the learning button, the indicator is off, and then press any button on the remote control, the indicator flashes 3 times, indicating successful learning.Liquidation:Long press the learning button for about 8 seconds, the indicator light turns from OFF to ON, and then press the remote control, the receiver does not work, indicating that the code clearing is successful.About working mode/output mode:Adjusted by jumpers on the receiving boardJumper non: Momentary/Jog‑‑press and hold ‑> On; release ‑> off.2&3 jumper: switch/self‑lock‑press ‑> open; press again ‑> close·Jumpers on 1 and 2: lock/interlock‑press ‑> open; press other buttons ‑> cl
