RF adapters cost effective solution, which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters.
Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are available in male, female, plug, jack, receptacle gender, in 50 Ohm &75 Ohm impedance and in standard polarity or reverse polarity.

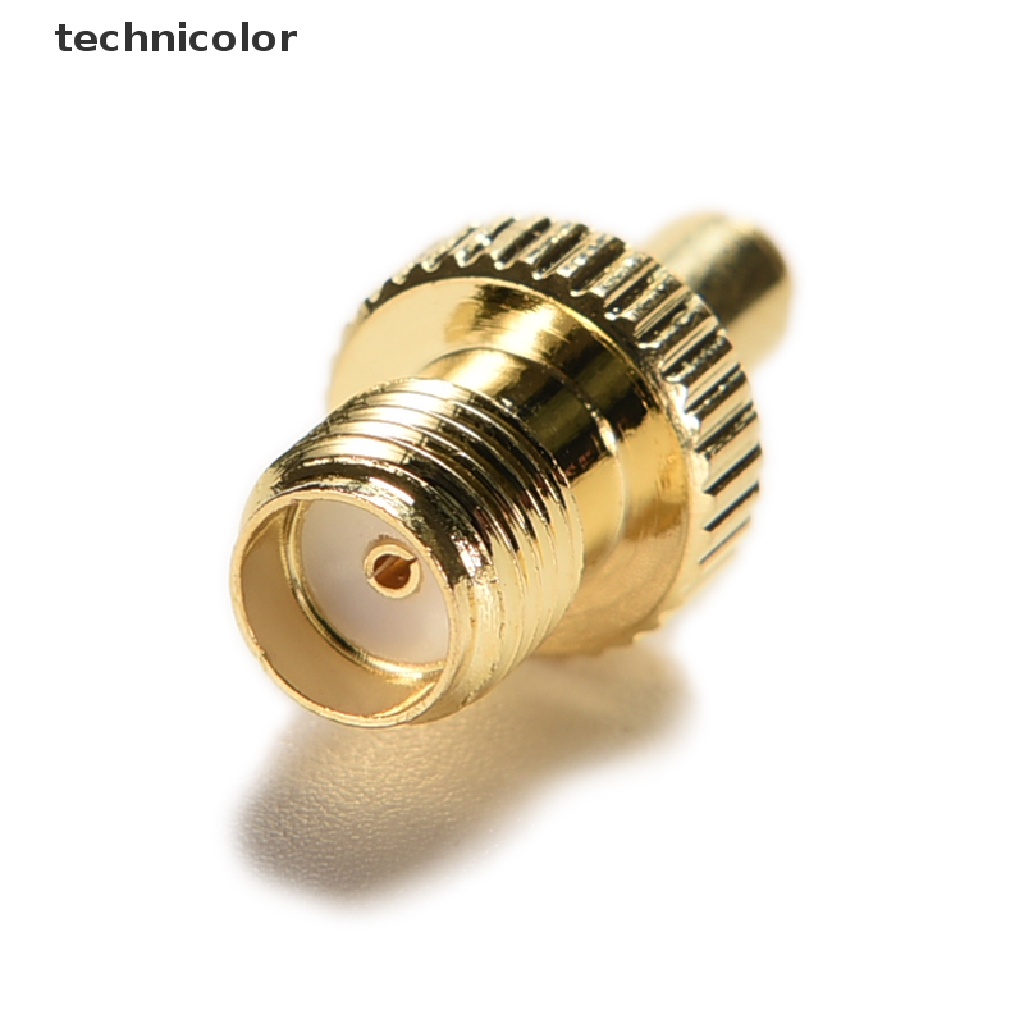

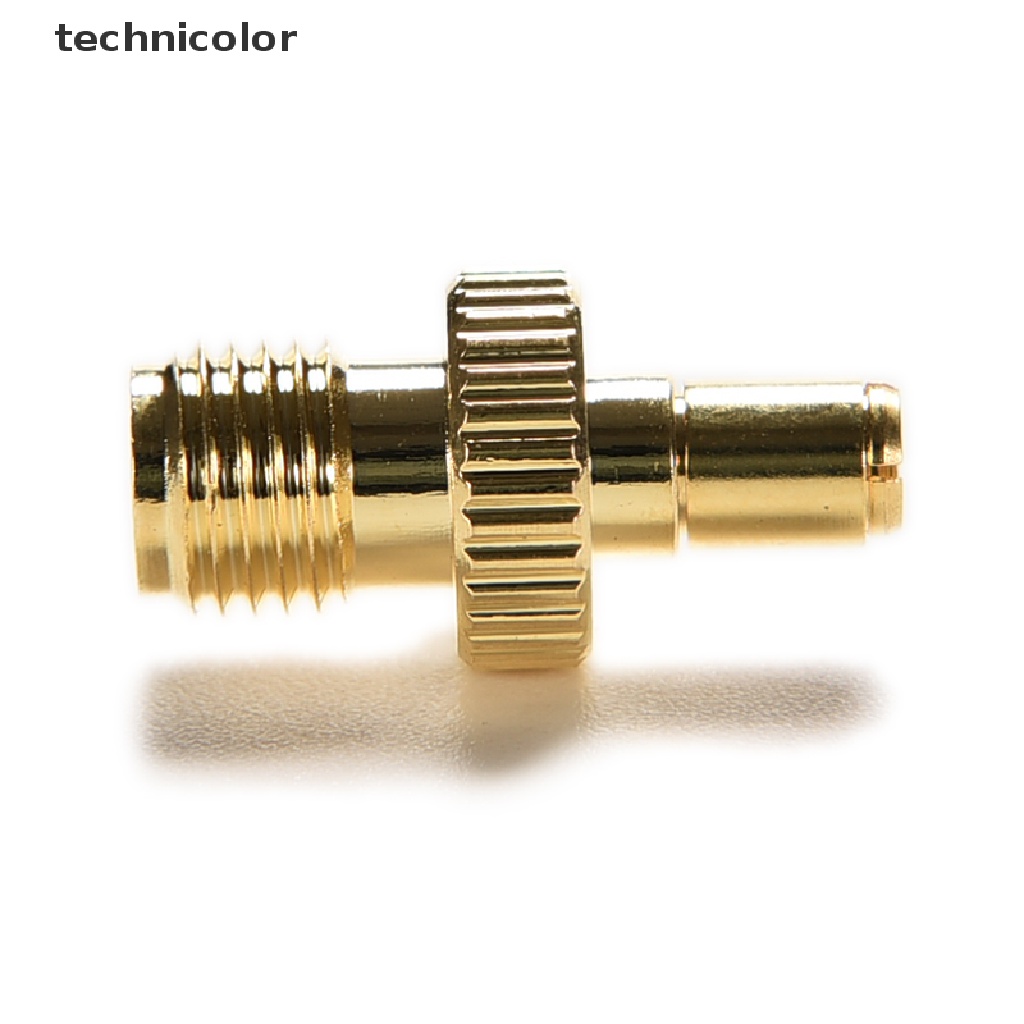

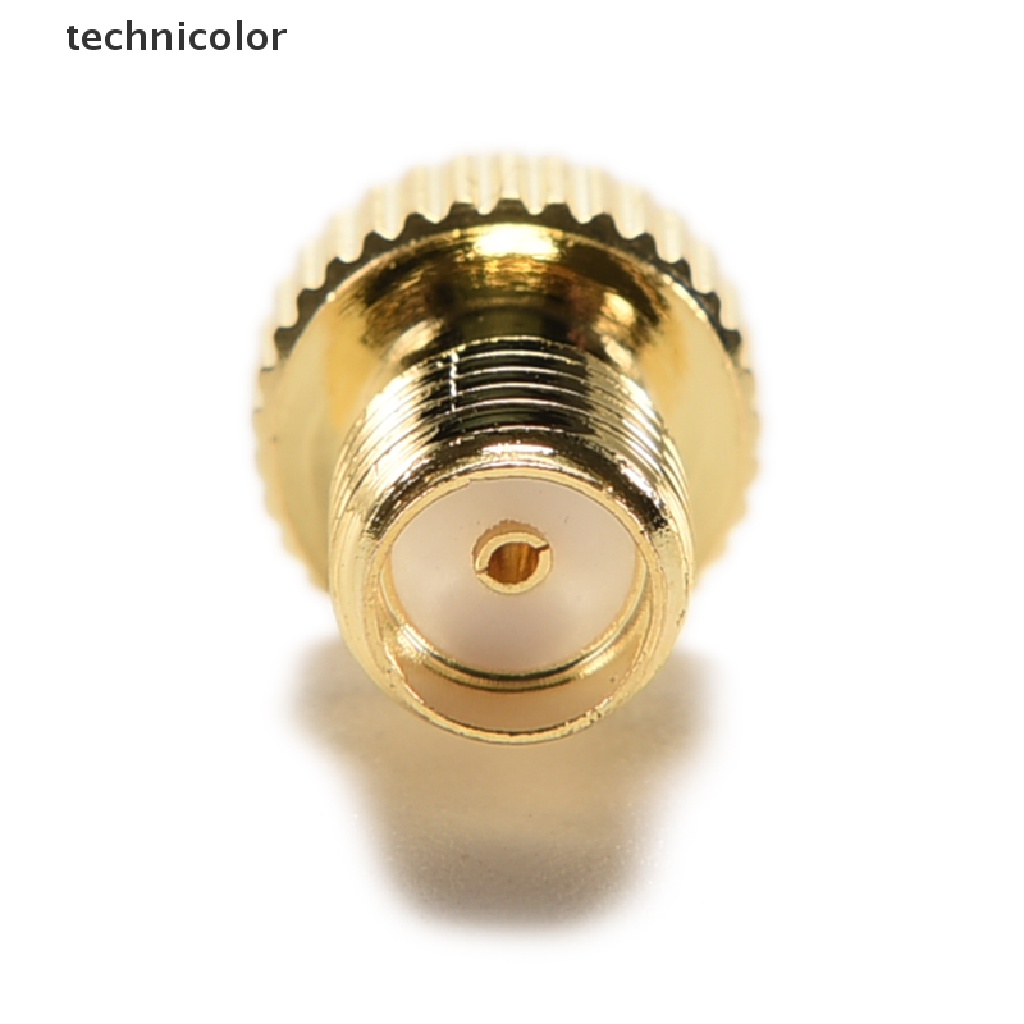

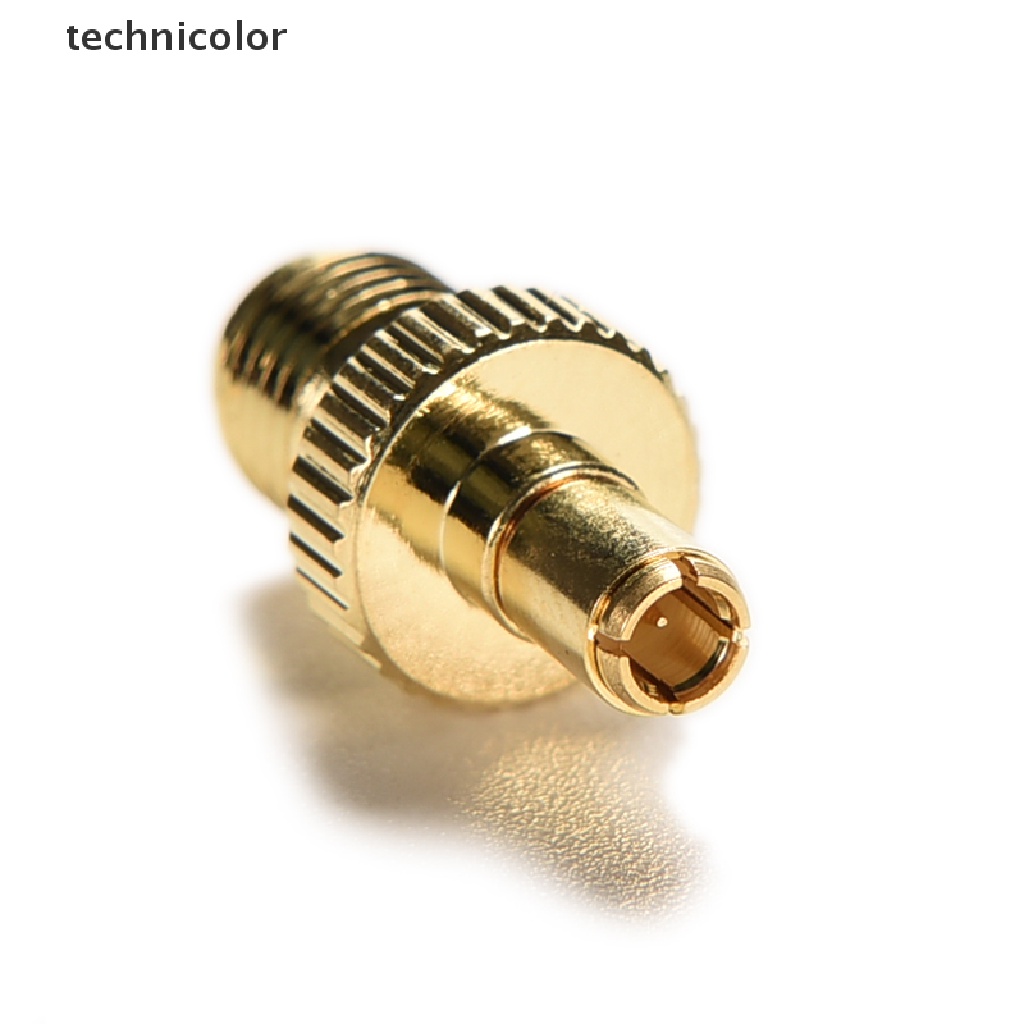

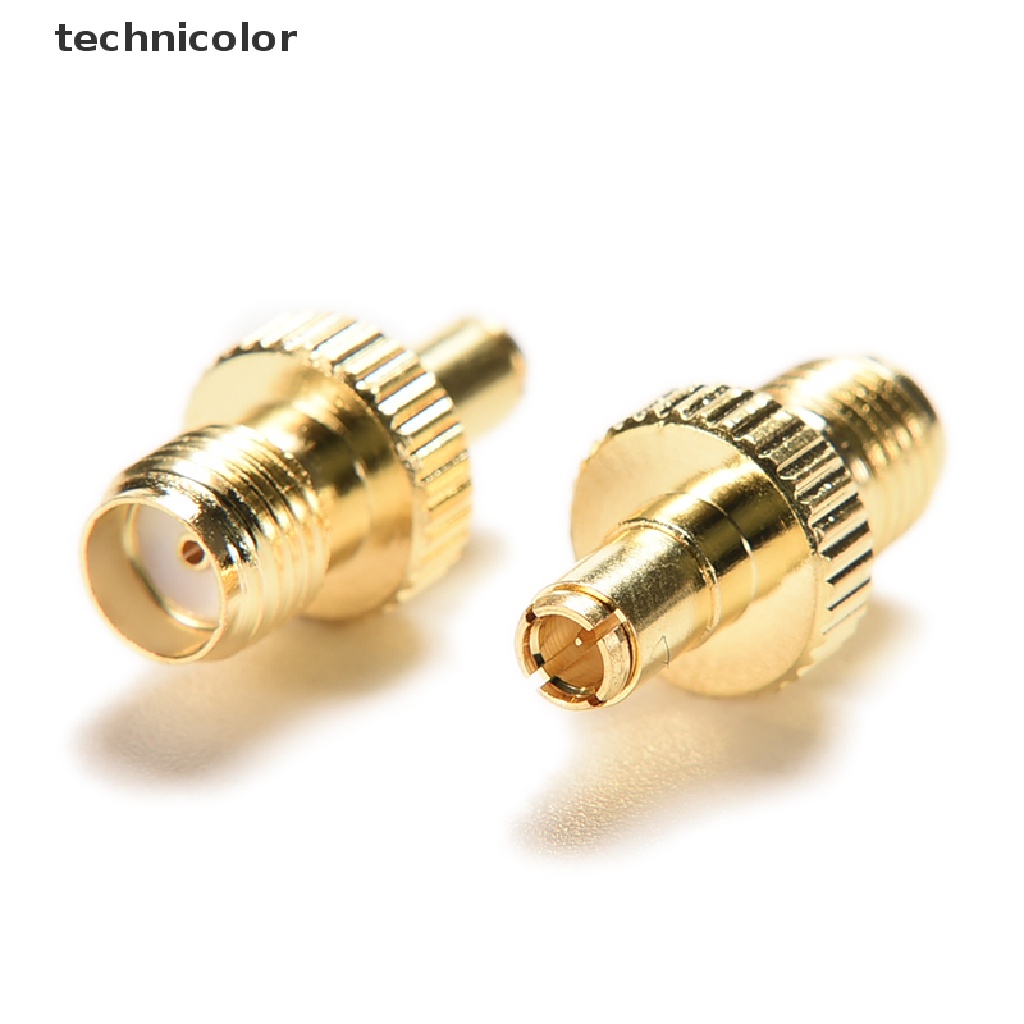

RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole panel configurations. Category Connectors, Interconnects Family Coaxial, RF - Adapters Series Between Series SMA-TS9 Convert From (Adapter End) SMA Jack, female Pin Convert To (Adapter End) TS9 Plug, male Pin Impedance 50 Ohm Style Straight Material Brass Plating Gold-plated Features - Mounting Type Free Hanging Package included: 1pc Gold-plated TS-9 male plug to SMA jack female RF adaptor straight
