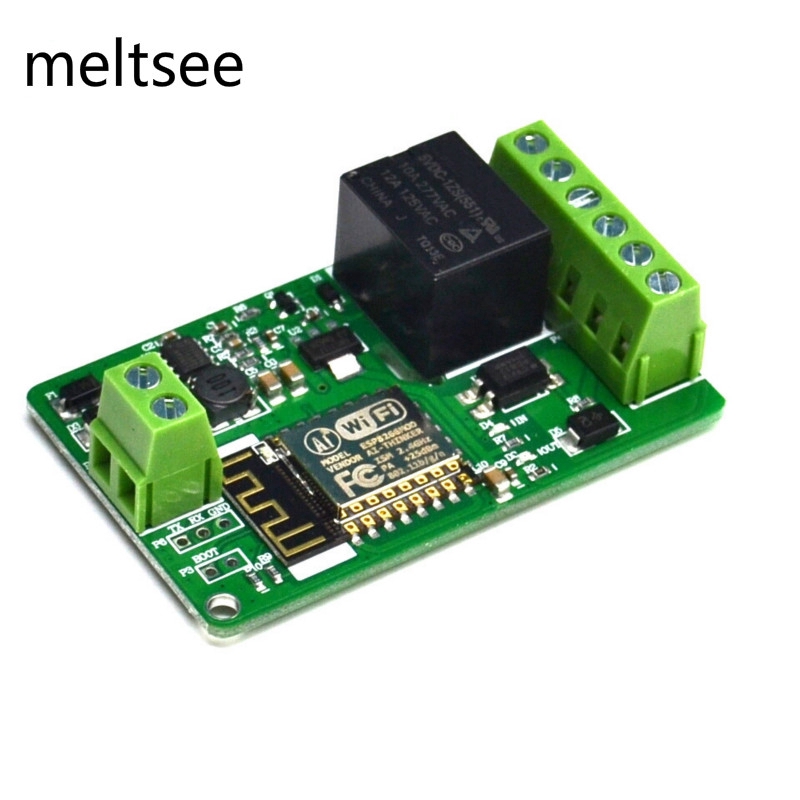

1 channel ESP8266 10A 220V Network Relay WIFI Module 1 Mô Đun Rơ Le Wifi Esp8266 10a 220v Dc 7v~30v

Giới thiệu 1 channel ESP8266 10A 220V Network Relay WIFI Module 1 Mô Đun Rơ Le Wifi Esp8266 10a 220v Dc 7v~30v

1 channel ESP8266 10A 220V Network Relay WIFI Module Input DC 7V~30V Network Modules

Specifications:
Model: ESP8266
Color: Green
Size(L*W*H):65 x 40 x 18 mm
ISM: 2.4 GHz
PA:+ 25 dBm
Relay voltage: 220 V
Relay Current: 10 A
Input voltage: DC 7 V~30 V
Input overvoltage protection: Yes
Input overcurrent protection: Yes
eatures:
1.More safe with relays PCB pin anti-climb design.
2.With ESP8266 Wifi module,4-layers board design.
3.One output status indicator, one input status indicator.

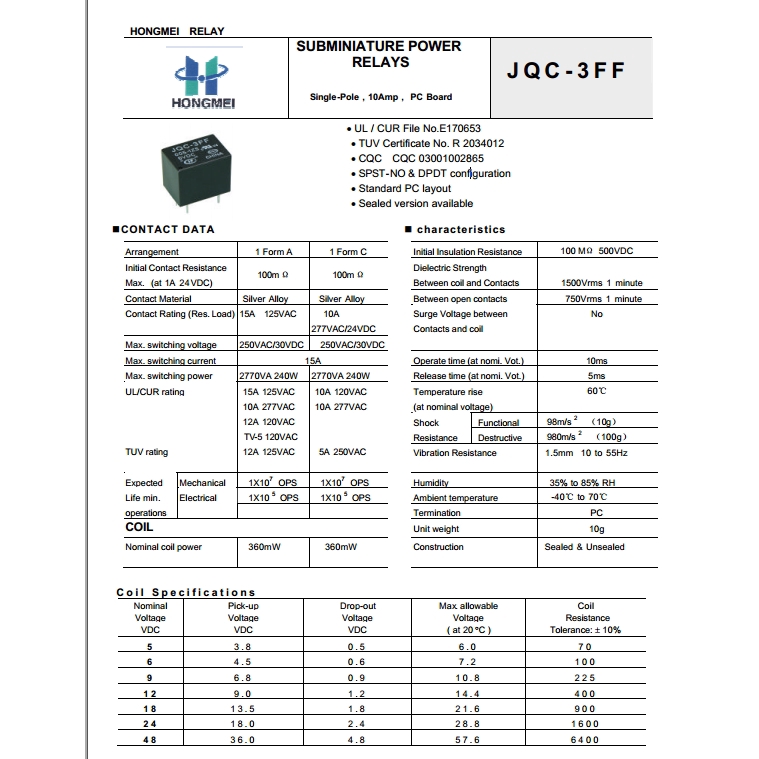

4.220V 10A relay, one normally open, one normally closed.
5.One way optocoupler isolation input, TVS input protection.
6.Access control server via TCP CLIENT mode Via HTTP protocol control.High-current terminals.
7.Input overvoltage protection, input with TVS, when voltage exceeds 33V, automatic protection will operate.
Note:
Manual measuring, please allow 1 ~ 5 mm error,thank you.
Package Included:
1 x ESP8266 WIFI Module
1, the use of science and technology of the ESP8266 WIFI module, WIFI module four-layer design.
2, wide voltage input, input voltage: DC 7V - DC 30V.
3, the input over-voltage protection, input with TVS, the voltage exceeds 33V, automatic protection.
4, input over-current protection.
5, 220V 10A relay, a normally open, a normally closed



Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.

Shipment：
1.1-2 days to ship(except for the pro-order item) and 10-15 days shipment.
2.If you have not received the item after 15 days shipment,Please contact us.

After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or video




1Pcs #1 channel #ESP8266 #10A 220V #Network #Relay #WIFI Module #Input #DC 7V~30V #Network Modules #Green #Modu
