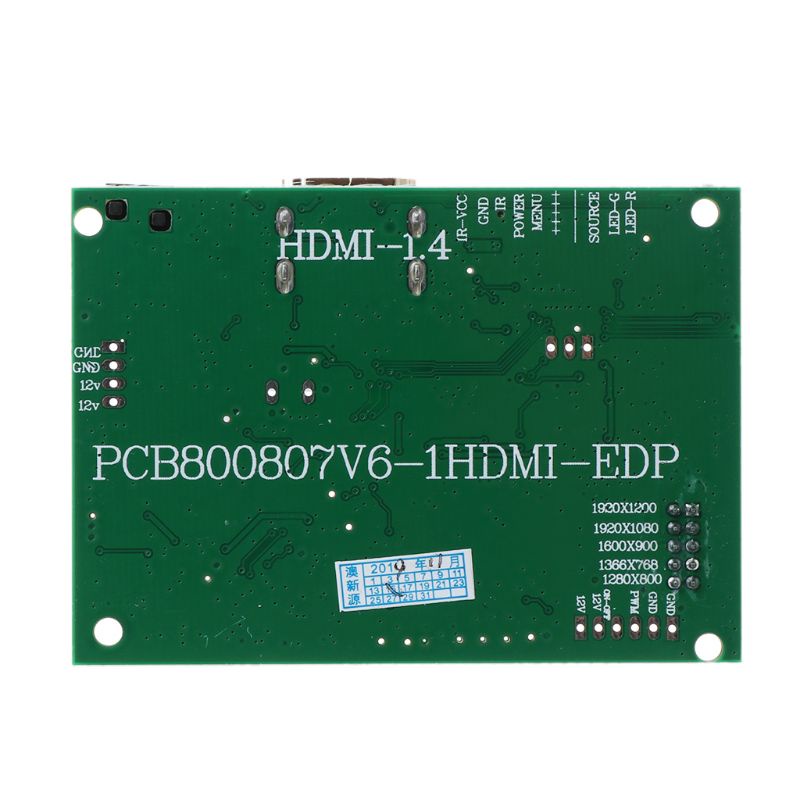

Giới thiệu 1 set bảng mạch điều khiển màn hình LCD 30PIN PCB-800807V1 1HDMI EDP 1920x1200 1920x1080 1600x9006680x 1380x68
#1Set #30PIN #LCD #Driver #Board #PCB-800807V1 #1HDMI #EDP #for #Screen #Resolution #1920x1200 #1920x1080 #1600x900 #1366x7681Set 30PIN LCD Driver Board PCB-800807V1 1HDMI EDP for Screen Resolution 1920x1200 1920x1080 1600x900 1366x768 1280x800
Description:
100% brand new and high quality.
Feature:
This is a multi-functional universal driver board, 30 pin interface, only need to brush a program, all kinds of screen resolution can be used at the same time.
Support wide voltage input, and can work normally between 5V-20V (but need to consider the voltage requirements of external equipment, so as not to damage the externally connected equipment or accessories, this working voltage is only applicable to this driver board).
Standard backlight 6PIN, interface, external screen line definition.
Standard EDP-30PIN output, support resolution below 1920x1200.
Support HDMI-compatible upgrade or 4P standard IIC upgrade.
Standard HDMI-compatible large-port universal connector.
Using high temperature components, can be used in high temperature environment for a long time, but need to pay attention to ventilation.
Support remote control function.
Support multi-screen parameter selection, maximum support for the corresponding resolution of 10 kinds of LCD screen, no need to write another program.
Do not need to update the driver, directly use the jump cap way, you can directly select a variety of resolution screen parameters, support multi-screen ginseng jumper selection, 1920 × 1200, 1920x1080, 1600 × 900, 1366 × 768, 1280 ×800, five common resolution LCD screens on the market.
Specifications:
Item Type: Driver Board
Material: Plastic+Metal
Size: 73x54mm/2.8x2.1in
Color: Green
Quantity: 1 Set
Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 x Driver Board
1 x Remote Control
2 x Cable
