10-100V Universal Battery Capacity Voltmeter Tester LCD Car Lead-acid Indicator

Giới thiệu 10-100V Universal Battery Capacity Voltmeter Tester LCD Car Lead-acid Indicator

Features:
1. The patented product, neutral packaging production, with simple dustproof waterproof
surface, with full protection cover.
2.The color liquid crystal material, light clear display, display the soft night.
3.To customize the type of battery, suitable for lead-acid, lithium-ion batteries, lithium iron
phosphate, metal hydride battery.
4.To display the percentage of remaining battery power,voltage, temperature value.
5.The 10~100V wide input voltage,reverse protection.
6.The product can go to sleep after 10 seconds.
7.The low power red mark flashes to remind.

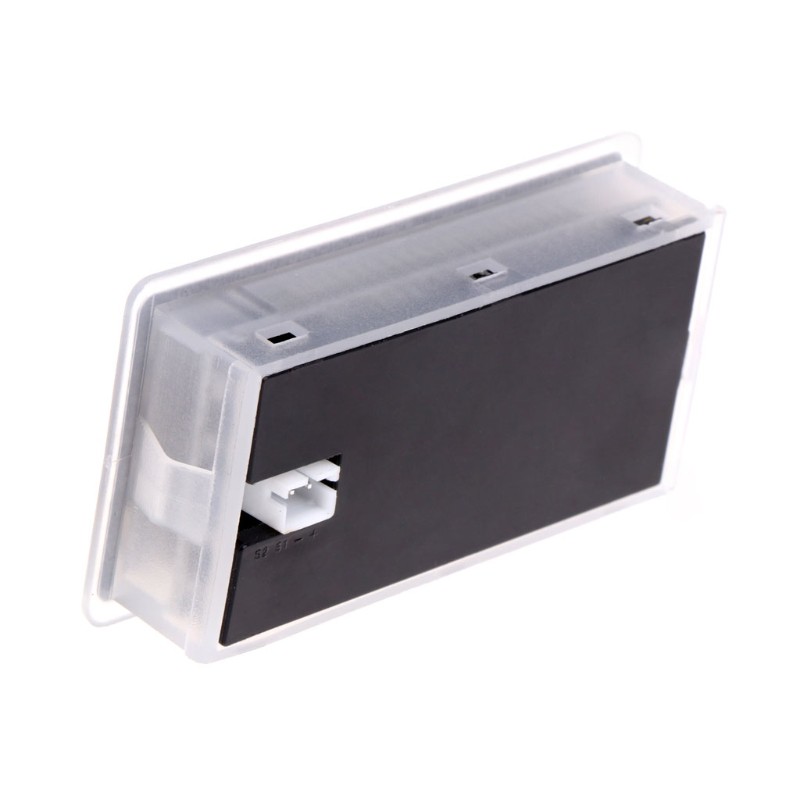

8.The installation is simple, with a buckle, without screws.
9.The open programming mode

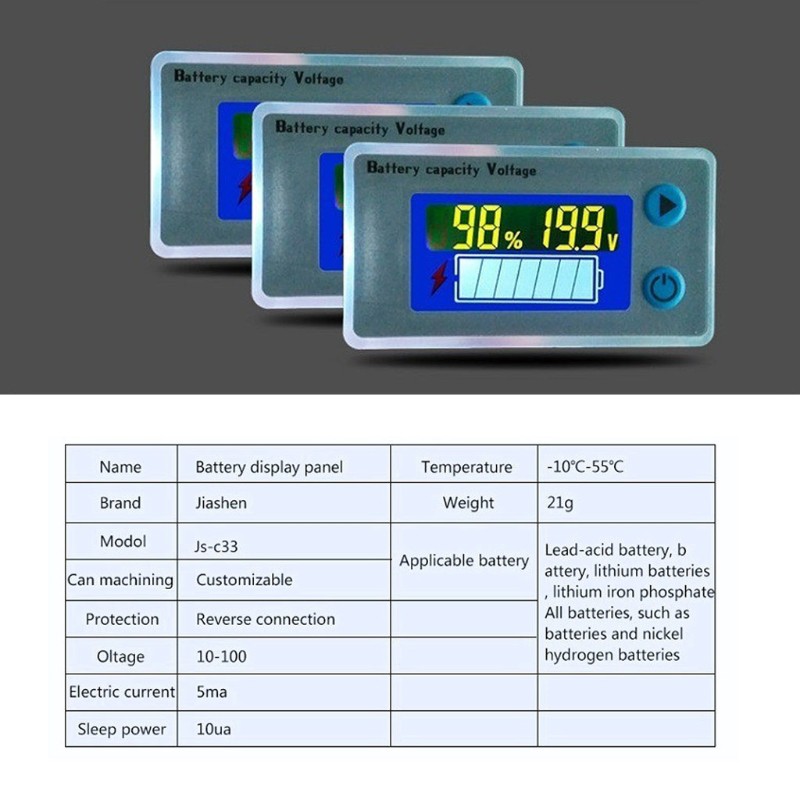

Parameter:
Product size:61.5mm*33.5mm*13.5mm
Installation size:58.5mm*28.5mm
Display size:36mm*19.5mm
Working voltage:10V-100V
Power waste:5-6mA (LED ON)
Voltage accuracy:±0.1(Typical),±0.5(Max)
Sleep power:6-12uA (20V)
Working temperature:-10~55℃

Instruction:

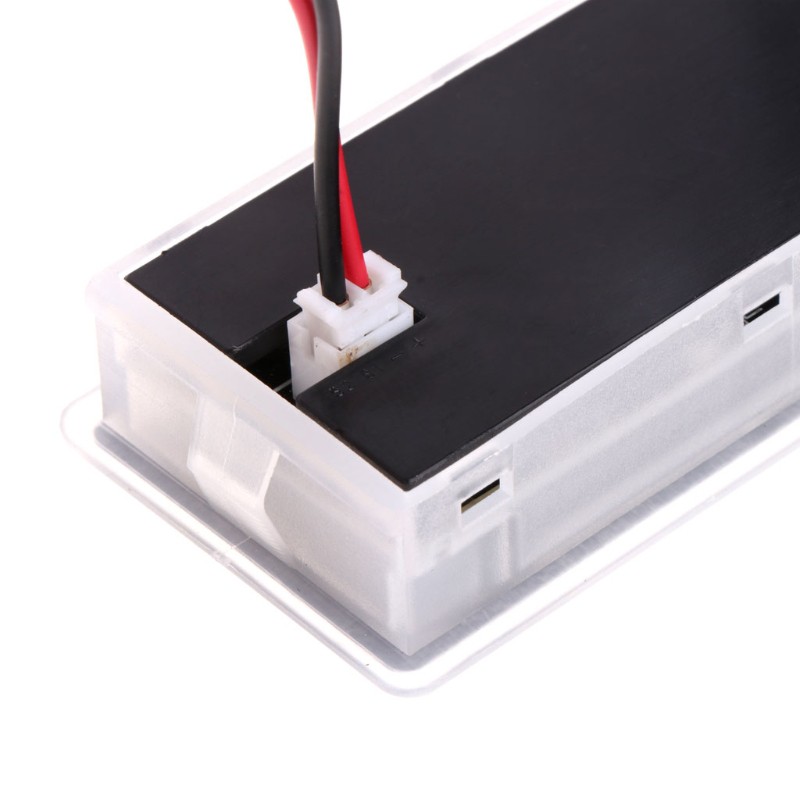

1. PH2.0 terminal products supporting the use of wire, connected to the circuit board face should plug back.
2. External NTC temperature sensor, please put the sensor to measure the temperature of the parts, do not
squeeze the sensor( selective assembly).
3. Red line to the positive terminal, black line to the negative terminal.
4. After the instrument is powered on , which shows the percentage of the battery power, the voltage value,
and the symbols of the analog battery.
5. Press the button to turn off the instrument. In close mode, you can wake up the instrument by pressing
any button.
6. Click the button , you can switch the voltage value and temperature value display.
7. The battery symbols on the display interface, from the right to the left, are 7 display boxes representing the
pool power from low to high.
8. The voltage on the display interface is measured in real time, and the voltage value is displayed on
10-100V.
9. The percentage on the display interface is the percentage of the remaining battery power
10. When the battery is connected to the charger or the discharge of the high current load, the display
parameters will fluctuate
11. The red lightning flashes the alarm when the battery is low
12. If the battery specification is special, you can enter the set mode 3-- and reset the upper and lower limits of
the measured battery voltage.

Notice:
The default setting is suitable for use in 12V lead acid batteries.
If you need to set up other types of batteries, or go into settings mode and delay time switch settings, please contact us, we will send electronic English instructions to you.

Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package include:
1pcs Battery Capacity Indicator Voltage Monitor
