Bộ 10 tấm bảo vệ pin Lithium 3.7V 3A BMS 1S 18650

Giới thiệu Bộ 10 tấm bảo vệ pin Lithium 3.7V 3A BMS 1S 18650

#10pcs3.7V #3A #BMS #Protection #Board #for #1S #18650 #Lithium #Battery #Protective #Plat

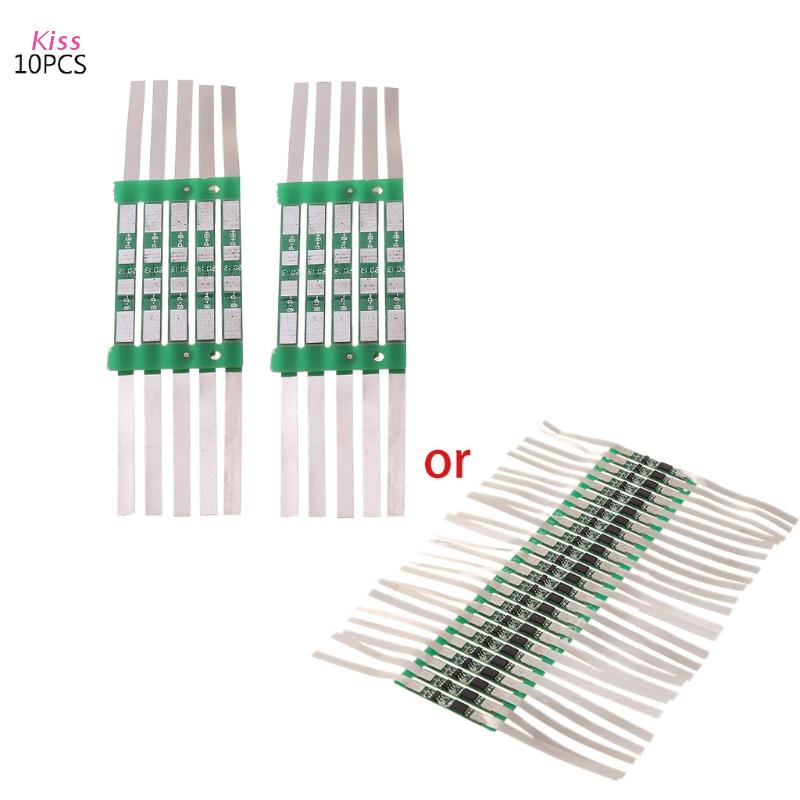

10pcs3.7V 3A BMS Protection Board for 1S 18650 Lithium Battery Protective Plat
100% brand new and high quality
Features:
Made of high quality electronic components, it is solid, durable, good conductivity and good performance, long service life.
It can meet the performance requirements of many aspects, so as to ensure the absolute safety of the battery group.
With over charge protection, over discharge protection, short circuit protection and over current protection, it fits for various different shapes of lithium batteries.
With low current consumption, stable performance, it suits for many requirements of high integration and low cost.
Protection board only, other accessories demo in the picture is not included!

Product Parameters:
Over charge testing voltage: 4.275±0.025V
Over charge recovery voltage: 4.075±0.025V
Over discharge testing range: 2.50±0.1V
Over discharge recovery voltage: 2.90±0.1V
Over current protection current: 2.8±0.3 A
Nominal discharge current: 2A
Short circuit protection time: Less than 50us
Working current consumption: Less than 6uA
Standby current consumption: Less than 0.1uA
Working internal resistance: Less than 50mΩ

Specification:
Material: PCB, Electronic Components.
Single size: app.8.8 x 0.3cm/3.46 x 0.12in (With solder belt)
Color: Green
Quantity: 1 Set

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
10 x BMS Protection Board
