Giới thiệu 1024GA20 DC 6V/12V Thread Flip N20 động cơ bánh răng M4 x 55mm Shaft Helium066
Video giới thiệu sản phẩm 1024GA20 DC 6V/12V Thread Flip N20 động cơ bánh răng M4 x 55mm Shaft Helium066. Nguồn: Shopee.
✔ ready to send ✔ good quality ✔ best price
【Purchase Notes】
1. All products are shipped from overseas, the goods will arrivewithin 1-2 weeks
2. Good quality, group purchase price, please leave a message to customer service
3. If you have any questions, please contact us, we will be happy to solve with you.
Follow us----Leave a message after placing an order----free gift ❤
❤ Thank you so much for your visit ❤
👍Features:

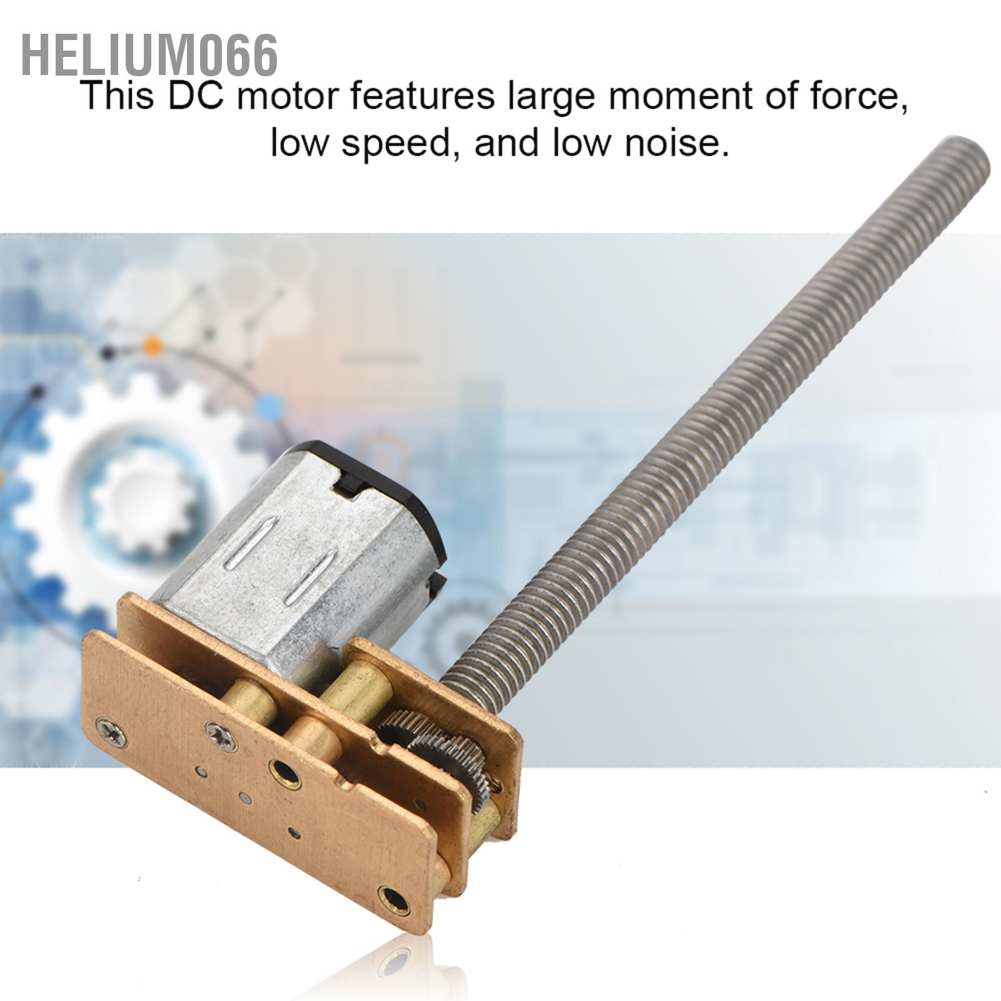

1. This DC motor features large moment of force, low speed, and low noise.

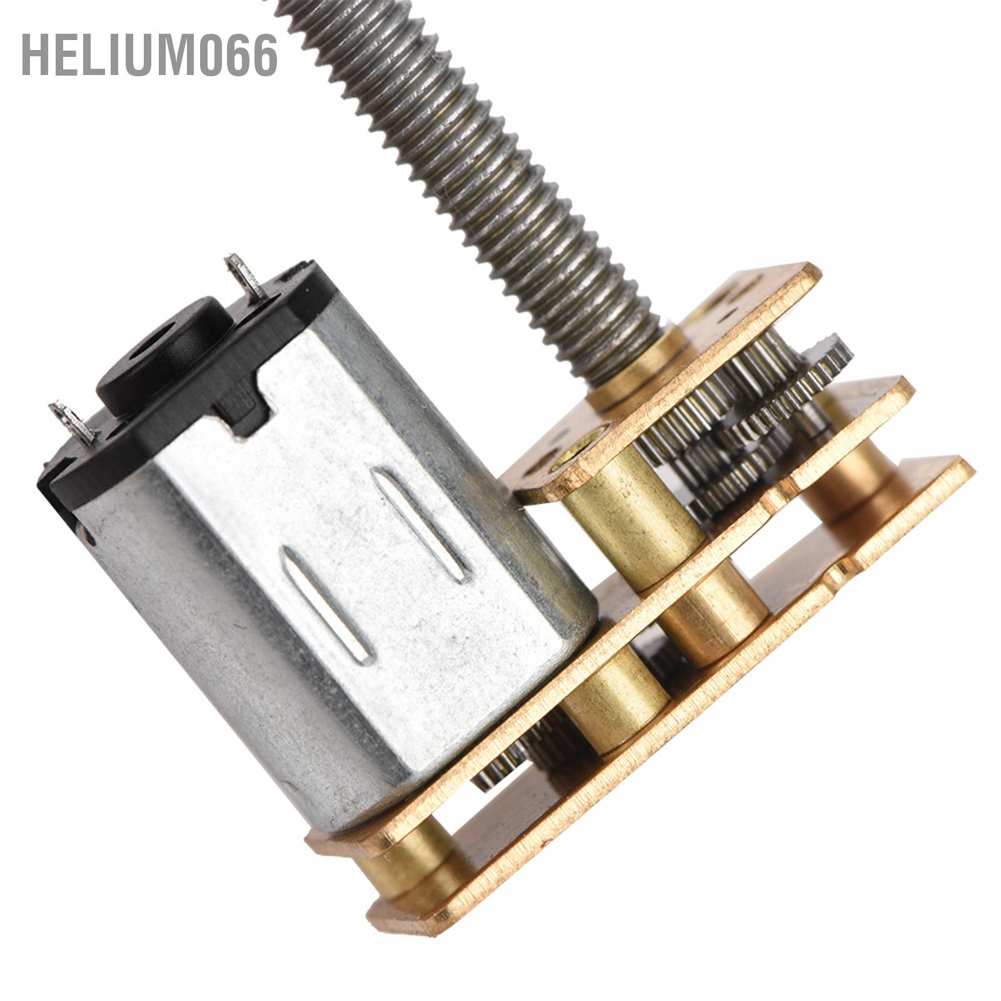

2. The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
3. This electronic gear motor is good replacement for old or worn electronic deceleration motor, useful and practical.
4. Suitable for lifts, landing gear, mechanical arms ,electronic toys and many other devices.

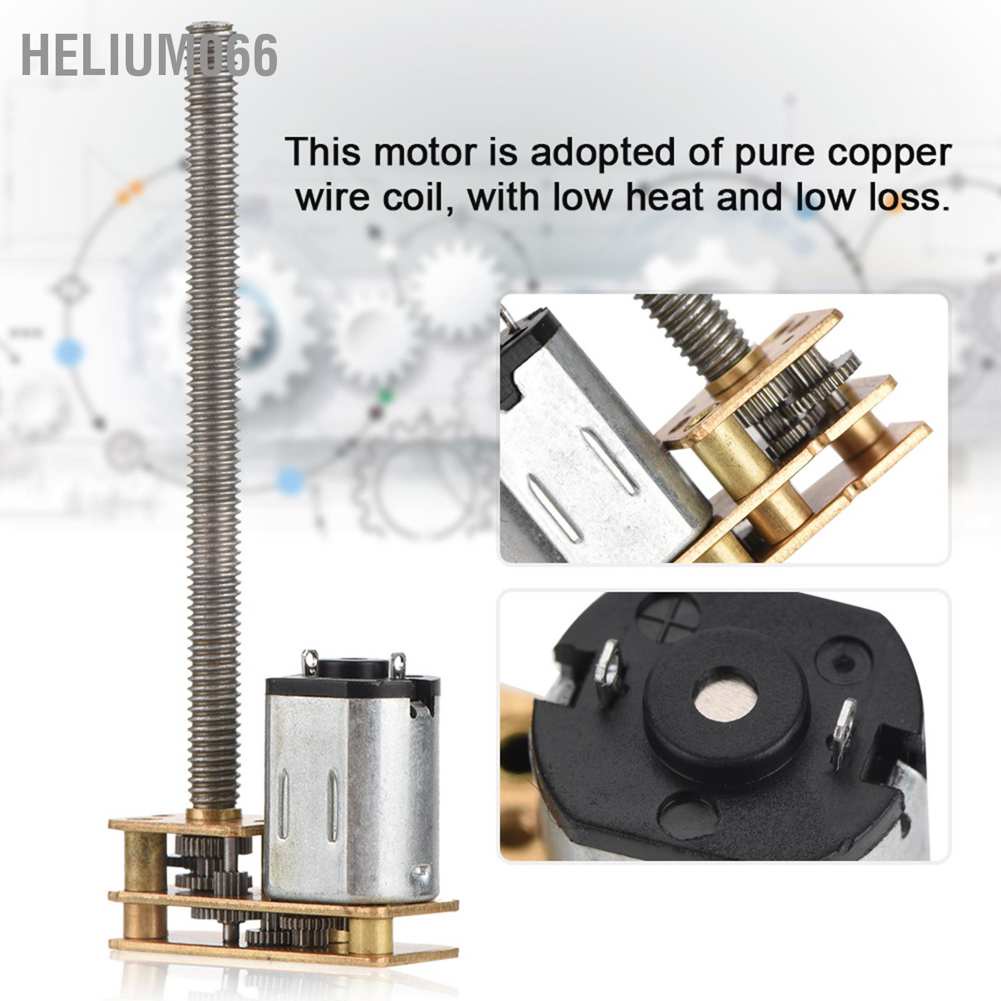

5. This motor is adopted of pure copper wire coil, with low heat and low loss.
👍Specification:
Rated power: 2W
Optional type: 6V 30RPM, 6V 60RPM, 6V 100RPM, 6V 150RPM, 6V 200RPM, 6V 1000RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM
3C rated voltage range:
Tread type: M4
Output shaft length: 55mm / 2.2inch
Size: Approx. 6.5*2.5cm/2.6*1in
Weight: Approx. 18g/0.6oz

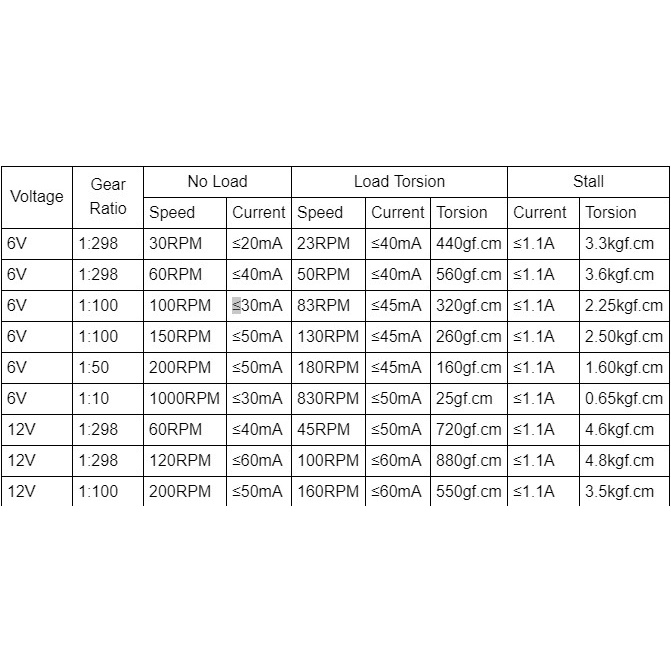

Voltage
Gear Ratio
No Load
Load Torsion
Stall
Speed
Current
Speed
Current
Torsion
Current
Torsion
6V
1:298
30RPM
≤20mA
23RPM
≤40mA
440gf.cm
≤1.1A
3.3kgf.cm
6V
1:298
60RPM
≤40mA
50RPM
≤40mA
560gf.cm
≤1.1A
3.6kgf.cm
6V
1:100
100RPM
≤30mA
83RPM
≤45mA
320gf.cm
≤1.1A
2.25kgf.cm
6V
1:100
150RPM
≤50mA
130RPM
≤45mA
260gf.cm
≤1.1A
2.50kgf.cm
6V
1:50
200RPM
≤50mA
180RPM
≤45mA
160gf.cm
≤1.1A
1.60kgf.cm
6V
1:10
1000RPM
≤30mA
830RPM
≤50mA
25gf.cm
≤1.1A
0.65kgf.cm
12V
1:298
60RPM
≤40mA
45RPM
≤50mA
720gf.cm
≤1.1A
4.6kgf.cm
12V
1:298
120RPM
≤60mA
100RPM
≤60mA
880gf.cm
≤1.1A
4.8kgf.cm
12V
1:100
200RPM
≤50mA
160RPM
≤60mA
550gf.cm
≤1.1A
3.5kgf.cm
👍Package List:
1 x Gear Motor
👍Note:
1. Please allow small size error due to manual measurement. Thanks for your understanding.
2. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
