Bộ 130 đầu nối hàn điện chống nước có dây co nhiệt

Giới thiệu Bộ 130 đầu nối hàn điện chống nước có dây co nhiệt

CONNECTORS have wide applicability in AC, DC, outdoor/indoor low voltage repair, automotive, marine, boat, motorcycle, truck and trailer electrical wiring. They can also be used to repair or splice USB cables, speaker wire, headphones, toys and much more.Our Solder seal is designed to withstand high levels of stress and have a tensile pulling force greater than 22 pounds. Wire must be TWISTED together before applying solder sleeves.

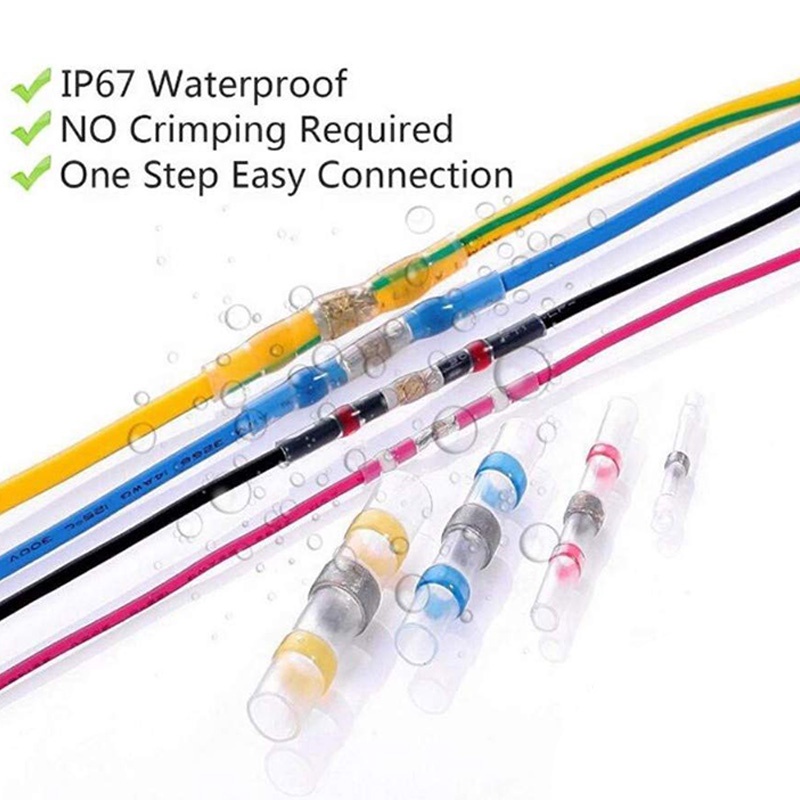

Enhanced wire protection, IP67 WATERPROOF and submersible wire connectors, advanced anti corrosion sealing for guaranteed WATER RESISTANCE.CLEAR and TRANSPARENT solder seal wire connectors can be bent to fit tight and confined spaces.USER FRIENDLY design, color coded for easy identification. What's more, you'll receive 10 BONUS connectors and a practical storage case.

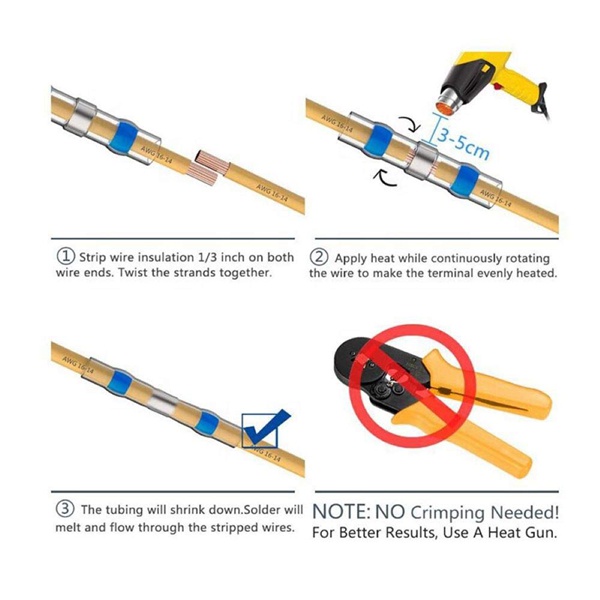

No need to worry about cracked insulation due to crimping or loose crimp connections.Just slip one of the wires you want to join, twist the two wire strands together, and then slide precisely over the wire joint.All you need is a heat (recommended) or a flame (not recommended) to shrink and bond your spliced wires together.
In some cases, solder ring will be left after the tin has melted, but it doesn't mean the tin ring is not melted and has failed.
As long as there's enough tin melted with the copper strands then it'll hold up strongly, it's unnecessary to pursue 100% meltdown of the solder ring.
Shrinkage ratio is 2:1
Temperature that solder seal starts to shrink: 80 Celsius
Temperature that solder ring starts to melt: 111 Celsius
Temperature that solder ring melts completely:138 Celsius
No need for a soldering iron. No more fumes, no more burns, and no more clutter just to connect two wires together.
You can stretch wires to test after the connection cools down.
colour:Blue + yellow + white + red
Material:plastic
size:3x1x1cm

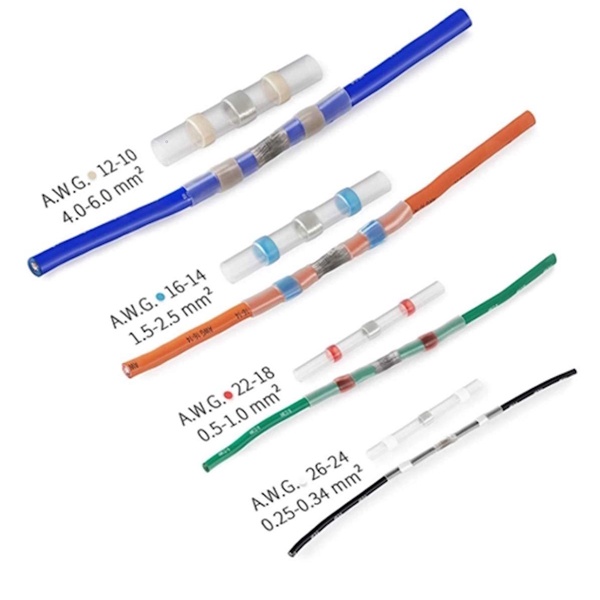

25 x White Connectors: Diameter 1.7 mm, Cable cross-section 0.25-0.34 mm2 (A.W.G.:26-24);
45 x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm2 (A.W.G.:22-18);
40 x Blue Connectors: Diameter 4.5 mm, Cable cross-section 1.5-2.5 mm2(A.W.G.:16-14);
20 x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm2(A.W.G.:12-10)
Package Contents:

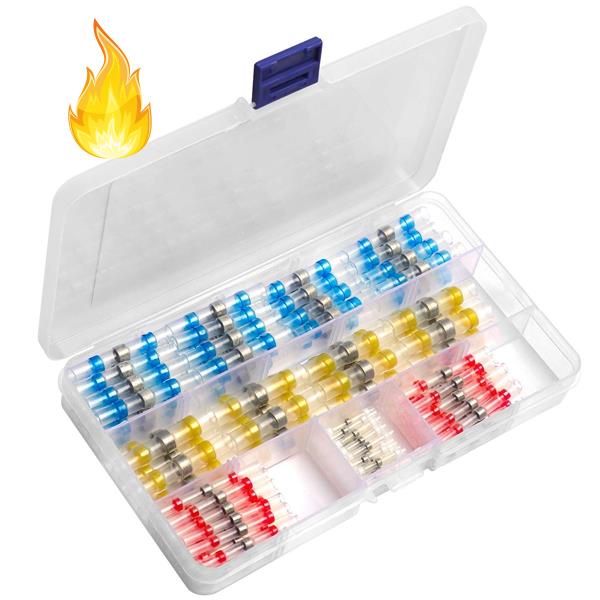

130*heat shrink connectors(30 * blue + 30*yellow + 35 * white + 35*red)
Note: It means the temperature on surface of the connector, rather than the temperature heat is set.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
