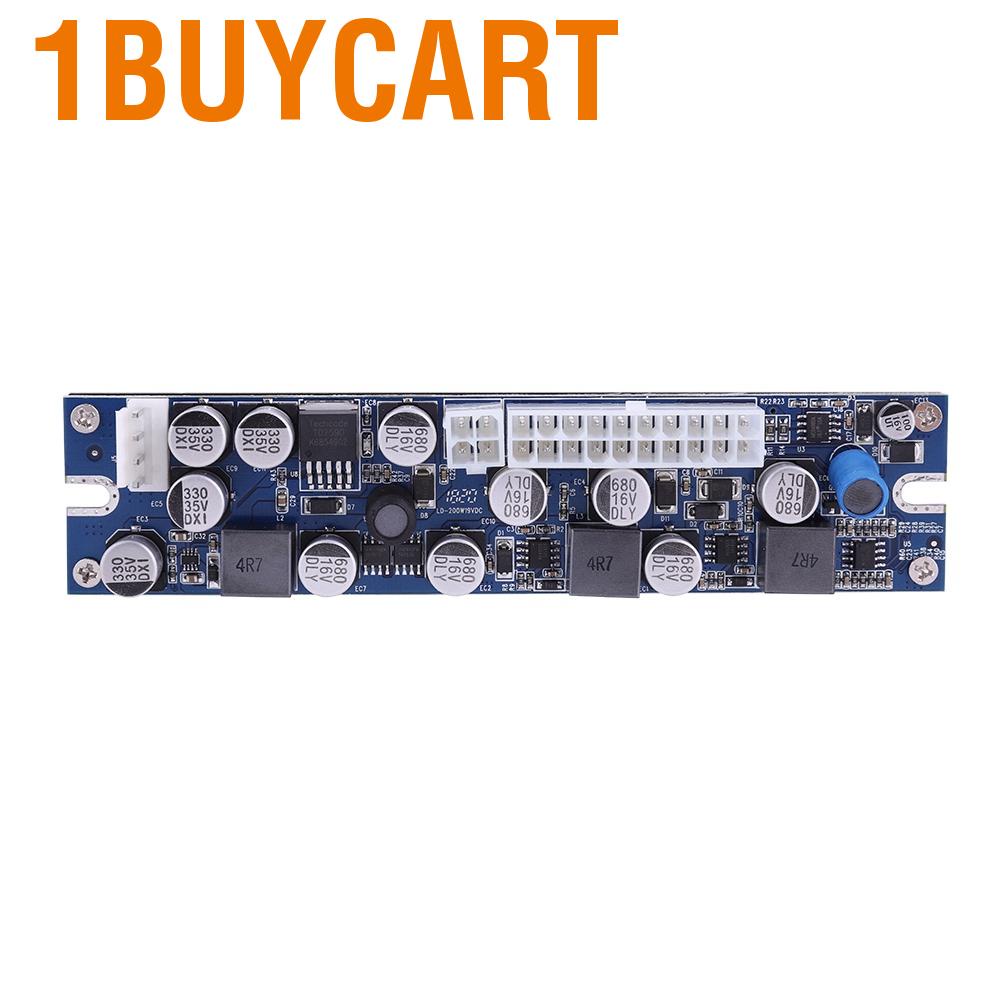

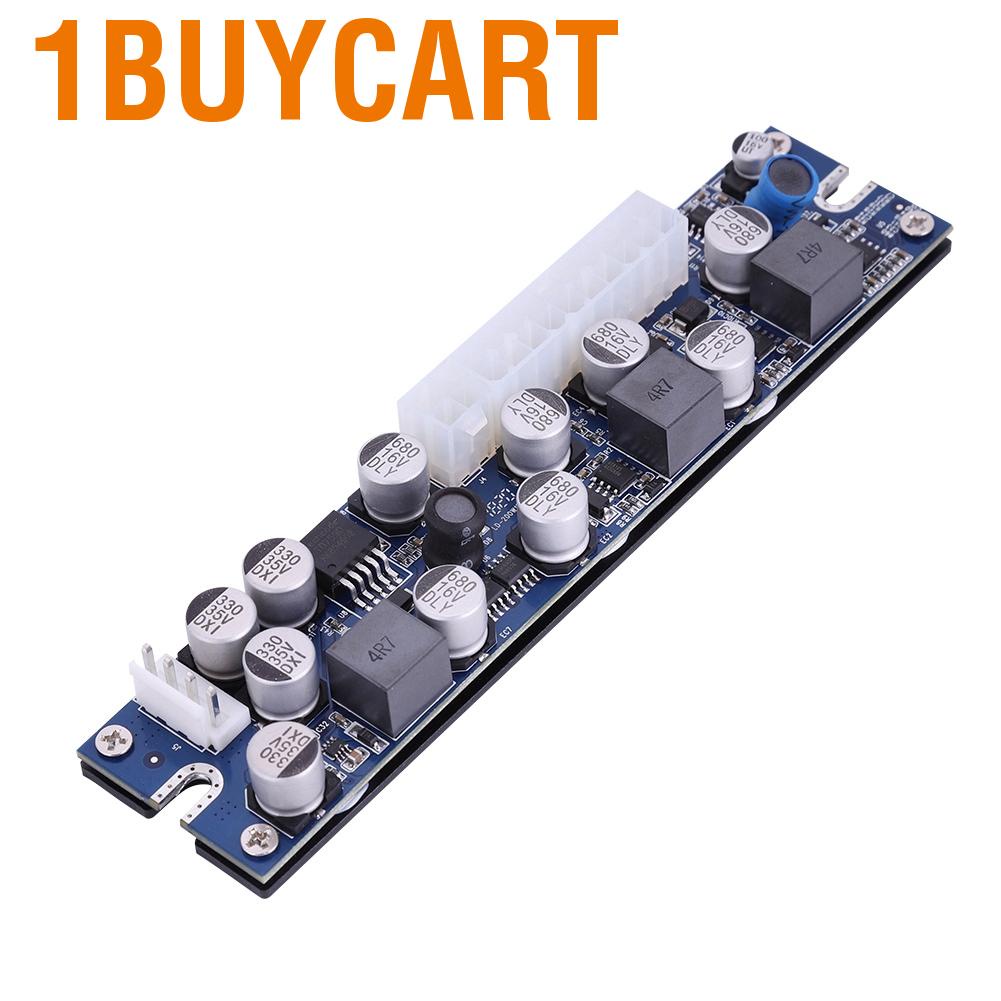

Giới thiệu 1buycart 19V Power Supply Module for PC 4 Pin For Computer DC 24pin ATX To 12V AUX DC-ATX Mini ITX Motherboards
Video giới thiệu sản phẩm 1buycart 19V Power Supply Module for PC 4 Pin For Computer DC 24pin ATX To 12V AUX DC-ATX Mini ITX Motherboards. Nguồn: Shopee.
1. Fanless design, 100% silent.
2. High Quality Polymer Caps on the PCBA, Long life.
3. Perfect DC PSU for mini ITX Motherboards.
4. Overvoltage Protection: when the output voltage reaches 1.5 times the rated voltage, the output is closed.
5. Short Circuit Protection: when a short circuit occurs in the output, the output is closed.
Specifications:
Condition: 100% Brand New
Module Size: Approx. 155 * 35 * 20 mm / 6.1 * 1.3 * 0.7 in
Input Characteristics:
Input Voltage Range: 16VDC - 24VDC
Input Current Range: 12.0A Max @19VDC
Input Surge Current: 12.0AMax @19VDC
Work Efficiency: 85% or more
Output Requirement: Output (Vin=19VDC)
Item Output Voltage Output Current
Minimum(V) Typical Value(V) Maximum(V) Ripple wave(mV) Standby current Typical value Peak value
+3.30V +3.14 +3.30 +3.47 50 0 8.0 10.0
+5.00VSB +4.75 +5.00 +5.25 50 0.1 2 2.5
+5.00V +4.75 +5.00 +5.25 50 0 6.0 10.0
+12.00V +11.40 12.00 +12.6 120 0 6.0 8.0
-12.00V -11.40 -12.00 -12.6 120 0 0.1 0.15
Protection Function:
(For +3.3v, +19V, +5.00v and +5.00VSB Power Output)
Overvoltage Protection: when the output voltage reaches 1.5 times the rated voltage, the output is closed.
Short Circuit Protection: when a short circuit occurs in the output, the output is closed.
Environment Description:
Working Temperature/Humidity: 0°C to 40°C / 45% - 75%
Storage Temperature/Humidity: - 40°C to +70°C / 10% - 90%
Atmospheric Pressure: 86Kpa -- 106Kpa

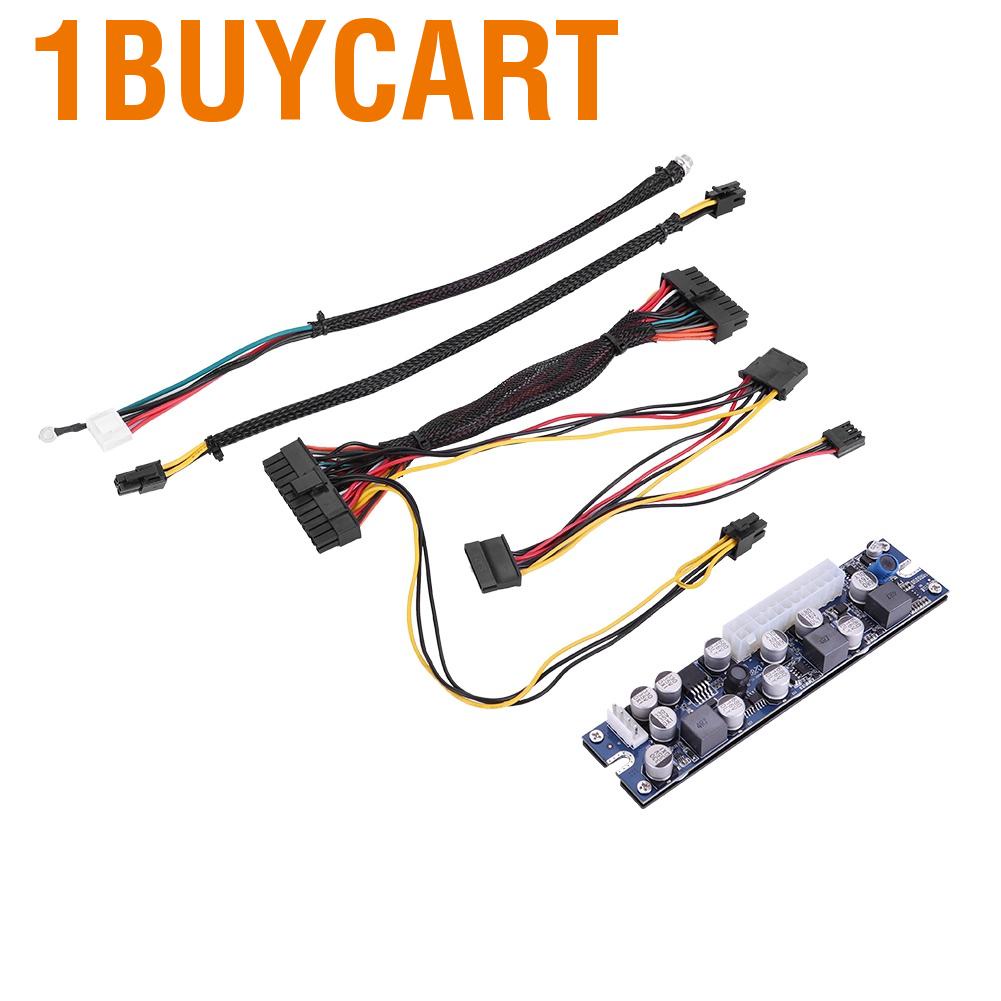

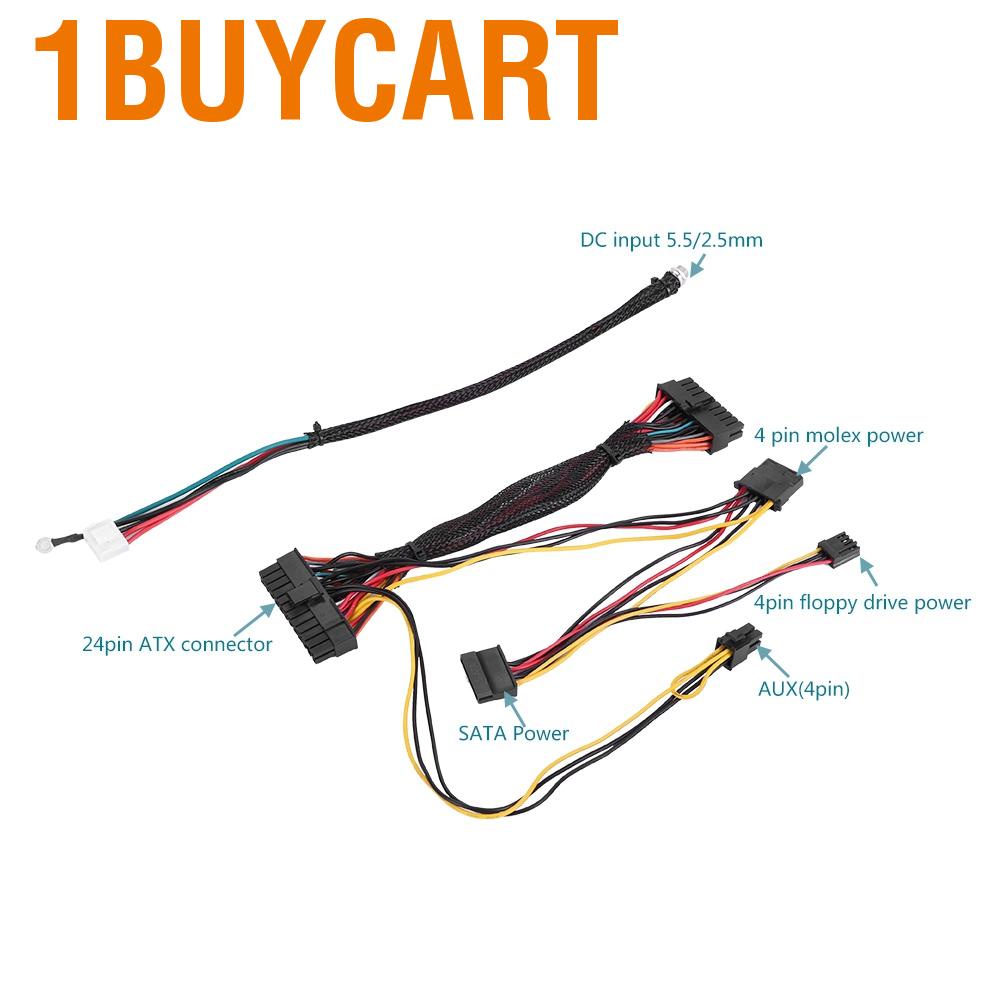

Package Included:
1 x Power Module
1 x 24pin ATX to 12V AUX
1 x 4 pin Molex Power Supply
1 x SATA Power
1 x 4 pin Floppy Drive Power Connection
1 x 4 pin Wire
1 x DC Input Wire
Notes:
1.Please allow 1-3 cm error due to manual measurement. Thanks for your understanding.
2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
#ATXDC#ATXSwitchPSU#DC-ATXPowerSupplyDC#DC-DCATXPowerSupply#DCInputPinPowerModule
