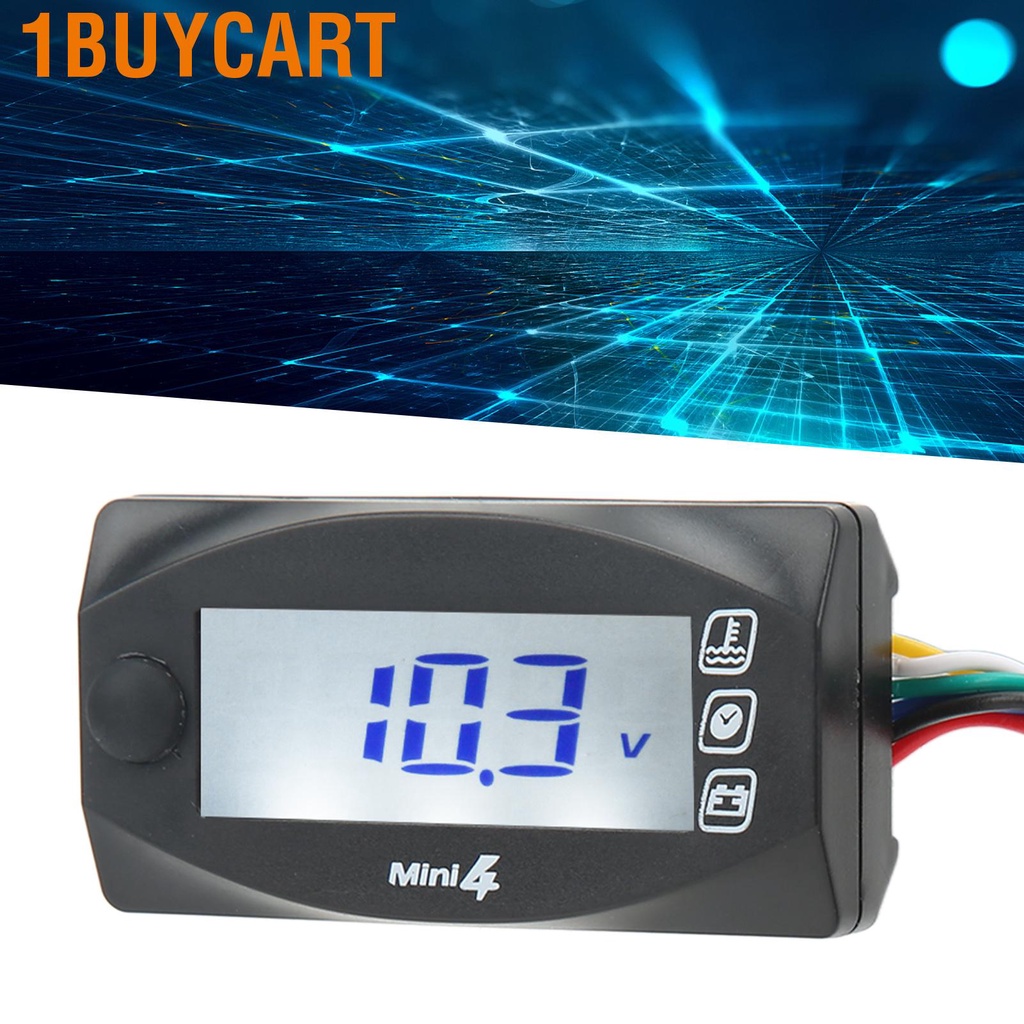

1buycart 4 in 1 Motorcycle Digital Thermometer LCD Screen Engine Water Voltage Time Meter Universal DC12V

Giới thiệu 1buycart 4 in 1 Motorcycle Digital Thermometer LCD Screen Engine Water Voltage Time Meter Universal DC12V

✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍
☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Feature:
1. Multi Functional: 4 in 1 motorcycle thermometer, you can gain accurate voltage, time, engine temperature, water temperature information.
2. LCD Screen: Motorcycle thermometer, LCD screen, clear digital display, is more convenient for you to read informations while driving.
3. 0‑120℃: The temperature display range is 0‑120℃. When the temperature of your motorcycle exceeds 120℃, the thermometer will flash warning.
4. ℃ or ℉ Unit: The operating temperature display unit of the thermometer can be ℃ or ℉, you can choose according to your needs.
5. Accurate and Waterproof: The gauge has high accuracy, providing you accurate measurement data, and it is waterproof, can be safely used outside.
Specification:
Item Type: Motorcycle Thermometer
Material: Plastic + LCD
Temperature Unit Display: ℃ or ℉
Temperature Display Range: 0-120℃ (32-248℉)
Function: Voltage, time, engine temperature, water temperature
Spark Plug Connector Hole ID: Approx. 14mm / 0.55in
Dimension of Thermometer: Approx. 60 x 30 x 13mm / 2.36 x 1.18 x 0.51in
Temperature Warning: Flashing when the temperature is higher than 120℃ (248 ℉)
Effective Working Voltage: DC12V
Backlight: Blue
Applicable Model: Universal for motorcycles
Package List:
1 x
Motorcycle Thermometer2 x Sensor Harness2 x Adapter1 x Instructions1 x Tee Adapter1 x Gasket1 x Spark Plug Connector2 x Bracket2 x Clamp
Note:
If the temperature display is abnormal after installation, check whether the sensor wire plug connector is normal
How to Use
Wiring method:
1. Temp A‑Yellow wire and white wire.
2. Temp B‑Green wire and white wire.
3. Blue wire connect to key on DC 12V main power switch.(+)
4. Black wire connect to the vehicie body.(‑)
5. Red wire connect to the battery DC12V.(+)
6. Engine temperature: the connector shall be installed on the spark plug, and the sensor shall be connected with the connector
7. Water temperature: the tee needs to be connected to the cooling water tank pipe, and then the sensor is connected to the tee
