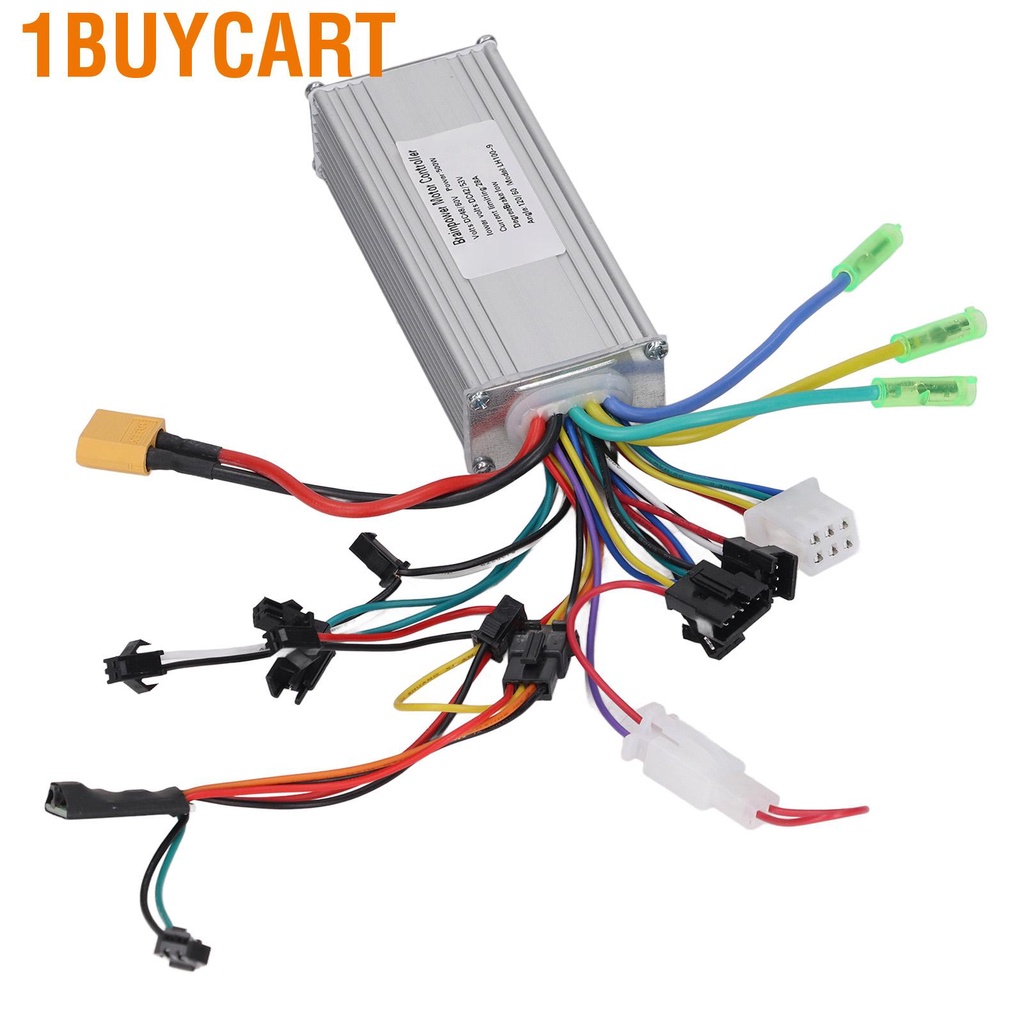

1buycart 48V 60V Electric Bike Scooter Controller with Round Colorful Thumb Throttle LH100 LCD Panel for 500W Motors
Mô tả ngắn
Đồ Chơi > Đồ chơi vận động & ngoài trời > Xe scooter, xe oto điện > 1buycart 48V 60V Electric Bike Scooter Controller with Round Colorful Thumb Throttle LH100 LCD Panel for 500W Motors
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Sản phẩm tương tự
Giới thiệu 1buycart 48V 60V Electric Bike Scooter Controller with Round Colorful Thumb Throttle LH100 LCD Panel for 500W Motors
✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Feature:
1. Riding Status Display: The display contents of the LH100LCD panel include: single cycling mileage and time, real time speed, battery power and voltage, gear indication cumulative average speed, total mileage, cumulative maximum speed, cruise indication, 6km/h boost and indication, real time operation power, real time current, fault map code, etc.
2. Heat Dissipation Housing: The controller housing is made of metal with grooved design. Due to its great heat dissipation function, it can prevent the internal circuit from thermal overload.
3. Controller Wiring Description: Power supply positive and negative poles, motor 3 phase line, headlight interface, tail lamp, brake lamp interface, brake lamp headlight signal, battery power output, intelligent identification line, low brake power failure, 1:1 power assist sensor, speed regulating throttle knob, master switch (electric control lock), LCD panel interface, and motor Hall interface.
4. 48V 60V 500W Motor Controller: The electric bike controller is 48V 60V 500W motor, applicable to the modification and replacement of electric bike, electric scooter, etc.
5. Convenient Panel Operation: Round colorful LCD panel is easy to install, suitable for 22.5 mm handlebars of elctric bicycles, scooters, etc.
Specification:
Item Type: Electric Bike Scooter Controller Kit
Material: ABS, aluminum alloy
Gross Weight: 452g / 15.9oz
Voltage: 48V 60V
Power: 500W
Current Limiting: 28A
Low Voltage: 42V 53V
Applicable Handlebars: 22.5mm / 0.9in
Package List:
1 x Panel1 x Controller1 x Manual
How to Use
Connect the socket of the panel to the corresponding socket of the controller to realize the function. If you need to connect other accessories, please follow the instructions.
