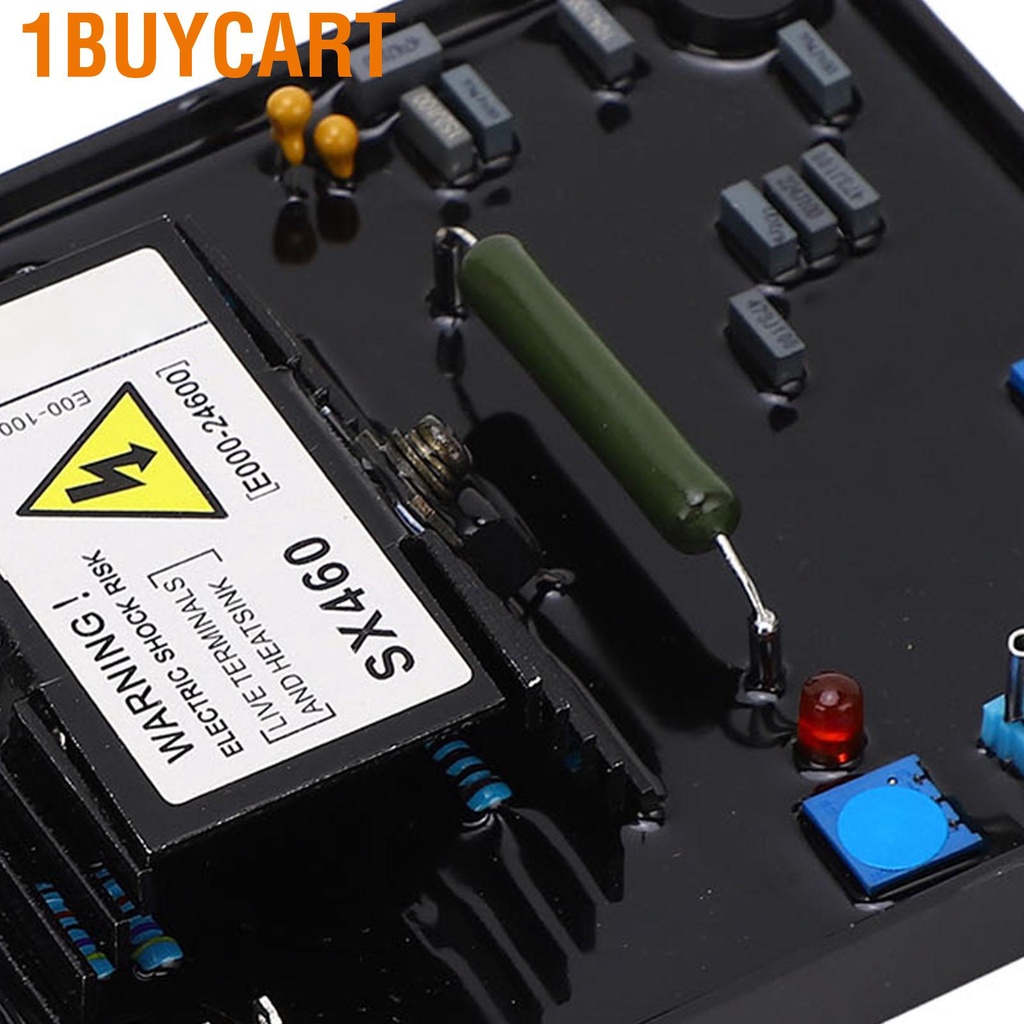

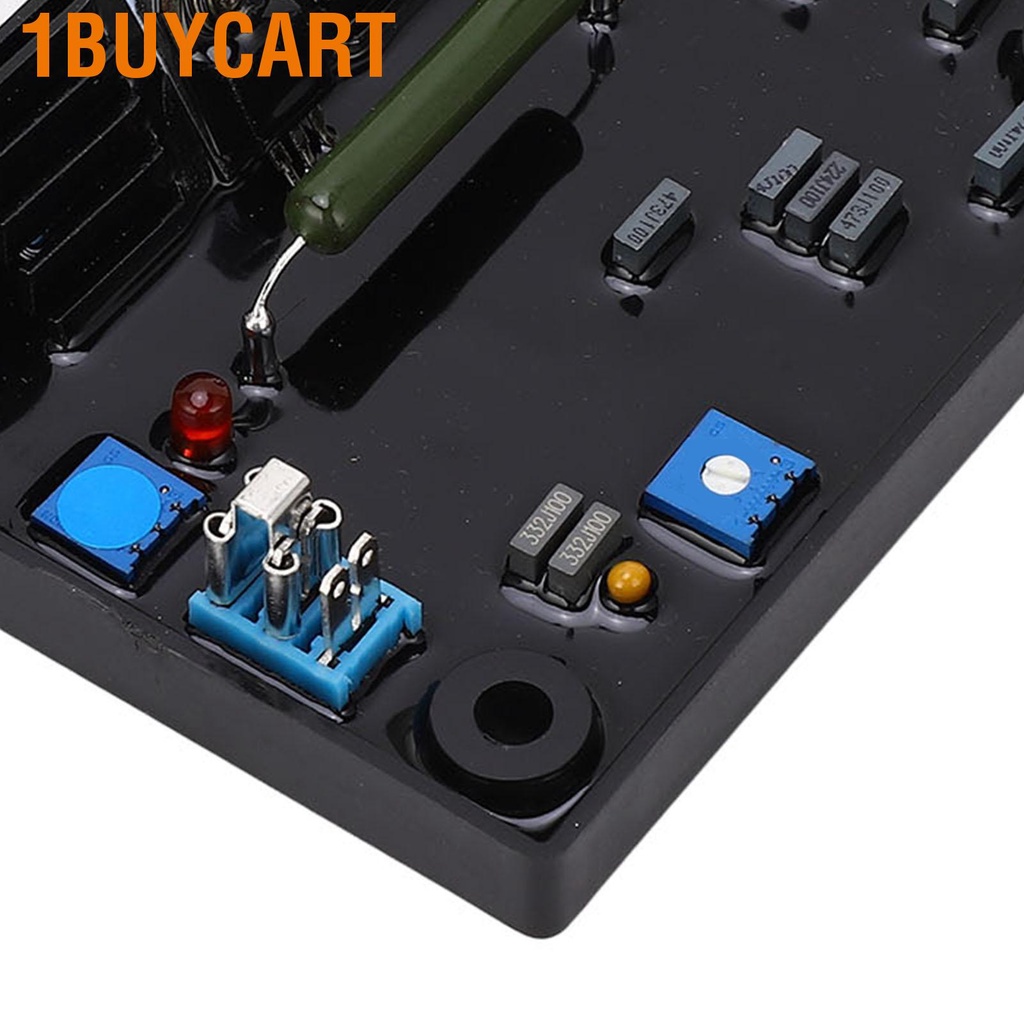

Giới thiệu 1buycart Automatic Voltage Regulator AVR 95‑264V 1 Phase Low Speed Protection for Diesel Engine
✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Feature:
1. Volt Regulator: The frequency measuring circuit continuously monitors the output of the generator and protecting the excitation system by reducing the output voltage proportionally when the speed is lower than the pre output of the settable threshold.
2. Good Protection: In addition to regulating generator voltage, AVR circuit also includes low speed and inductive loss protection functions.
3. Better Control: The positive voltage build up from the residual level is ensured by AVR. High efficiency semiconductor AVR is used in the power circuit to connect with the main stator winding and exciter excitation winding to provide closed loop control of output voltage, and the load regulation is within 1.0%.
4. Generator Controller: Half wave phase controlled thyristor type automatic voltage regulator is a part of brushless generator excitation system. The excitation power comes directly from the generator terminals.
5. Easy to Install: Comes with a compact size and a light weight, the automatic voltage regulator is very convenient to install in minutes.
Specification:
Item Type: Automatic Voltage Regulator
Material: ABS
Input Voltage: Jumper optional, 95-132V AC or 190-264V AC.
Frequency: 50-60 Hz
Phase: 1 Phase
Output Voltage: Maximum 90V DC at 207V AC input.
Current: Continuous current 4A DC
Intermittent Current: 6 A, lasting for 10 seconds.
Resistance: Minimum 15 Ω
Response: Typical system response.
AVR Response: 20ms
Excitation Current to 90%: 80 ms.
Machine Voltage to 97%: 300 ms
Operating Temperature: -40℃ to +70℃.
Relative Humidity 0-70℃: 95%.
Storage Temperature: - 55℃ to +80℃.
Package List:
1 x
Automatic Voltage Regulator1 x User Manual

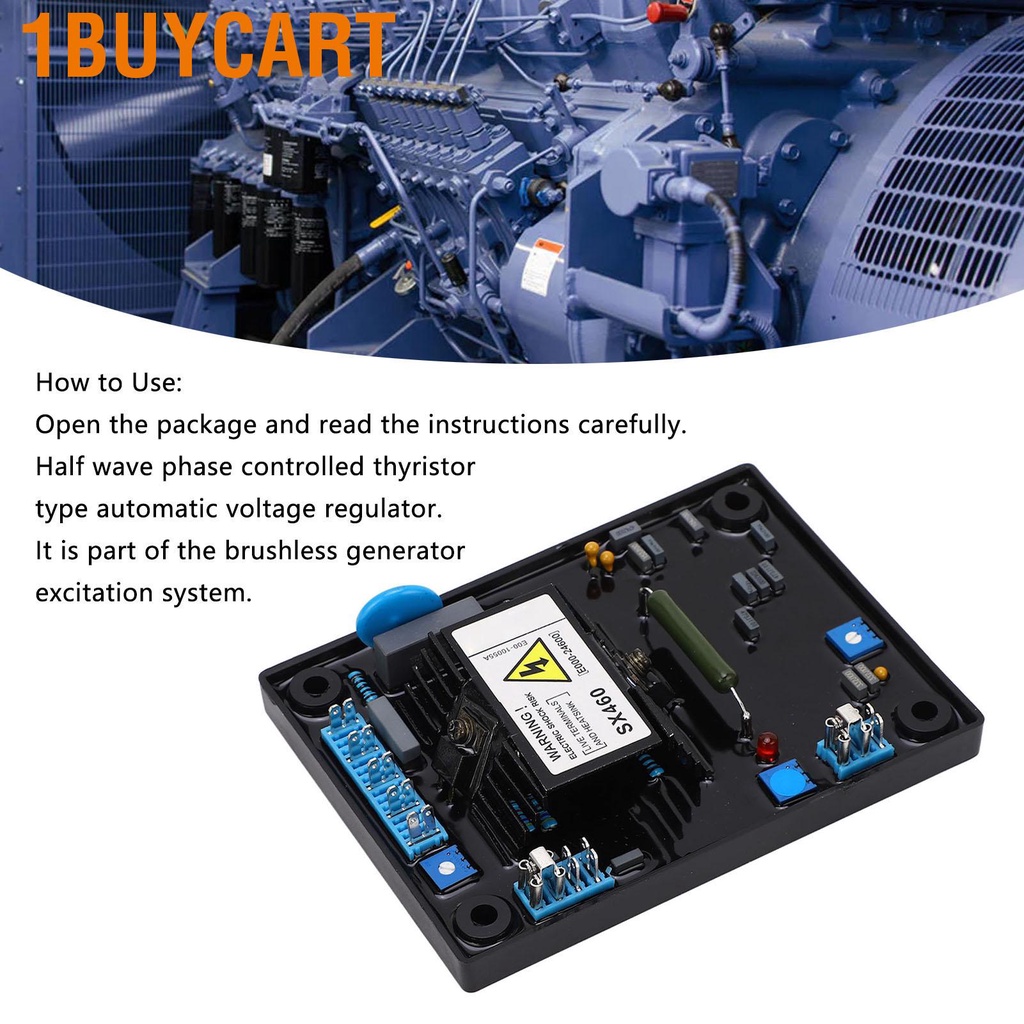

How to Use
Open the package and read the instructions carefully.
