1buycart Automatic Voltage Regulator Multi Protections High Stability Module for Brushless Generator 180‑240V

Giới thiệu 1buycart Automatic Voltage Regulator Multi Protections High Stability Module for Brushless Generator 180‑240V

✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍
☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Feature:

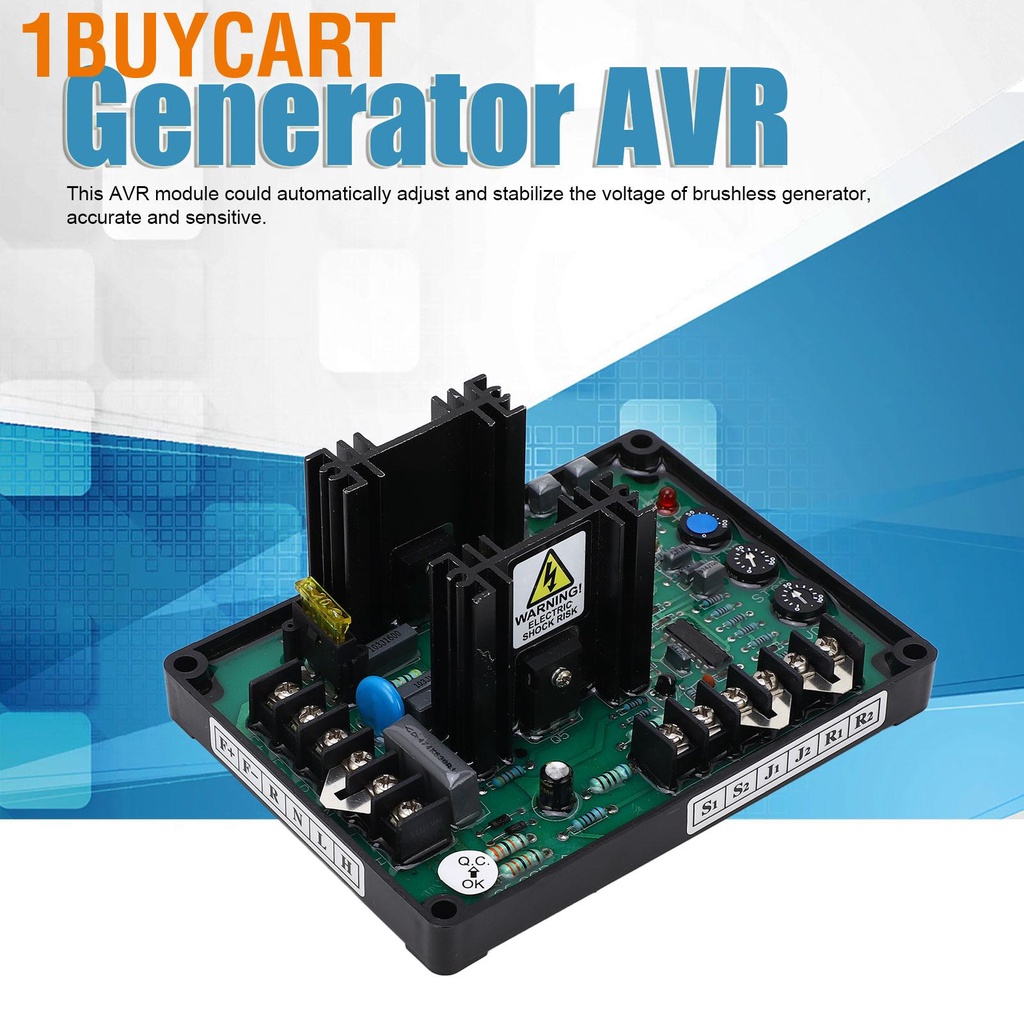

1. Automatic Regulation: This AVR module could automatically adjust and stabilize the voltage of brushless generator, accurate and sensitive.
2. Multiple Protections: With overvoltage protection, low speed protection, low frequency protection, high breaking capacity fuse protection, more safe for use.
3. Wide Applications: The voltage regulator is suitable for single phase and three phase, applicable for 220V 380V 400VAC brushless generator.
4. High Stability: The auto voltage regulator board has high voltage stability, which the voltage regulation rate is less than ±0.5%.
5. Excellent Components: Adopt excellent components, ensures stable performance and high reliability of this automatic voltage regulator.
Specification:
Item Type: Automatic Voltage Regulator
Material: ABS
Detection Input: Voltage 220V 400VAC
Power Input: Voltage 180-240VAC single phase two wire
Field Output: Maximum 90VDC at 240VAC input
Current: Continuous 6A, intermittent 20A, 10 seconds
Features:
1. Voltage regulation rate is less than ±0.5%
2. Applicable for 220V 380V 400VAC brushless generator
3. Maximum output current 20ADC
4. Select 50/60Hz by jumper
5. With low frequency protection and voltage slow establishment function
6. With fuse protection with high interrupting capacity
Package List:
1 x Automatic Voltage Regulator1 x Manual
How to Use
Install and use.
