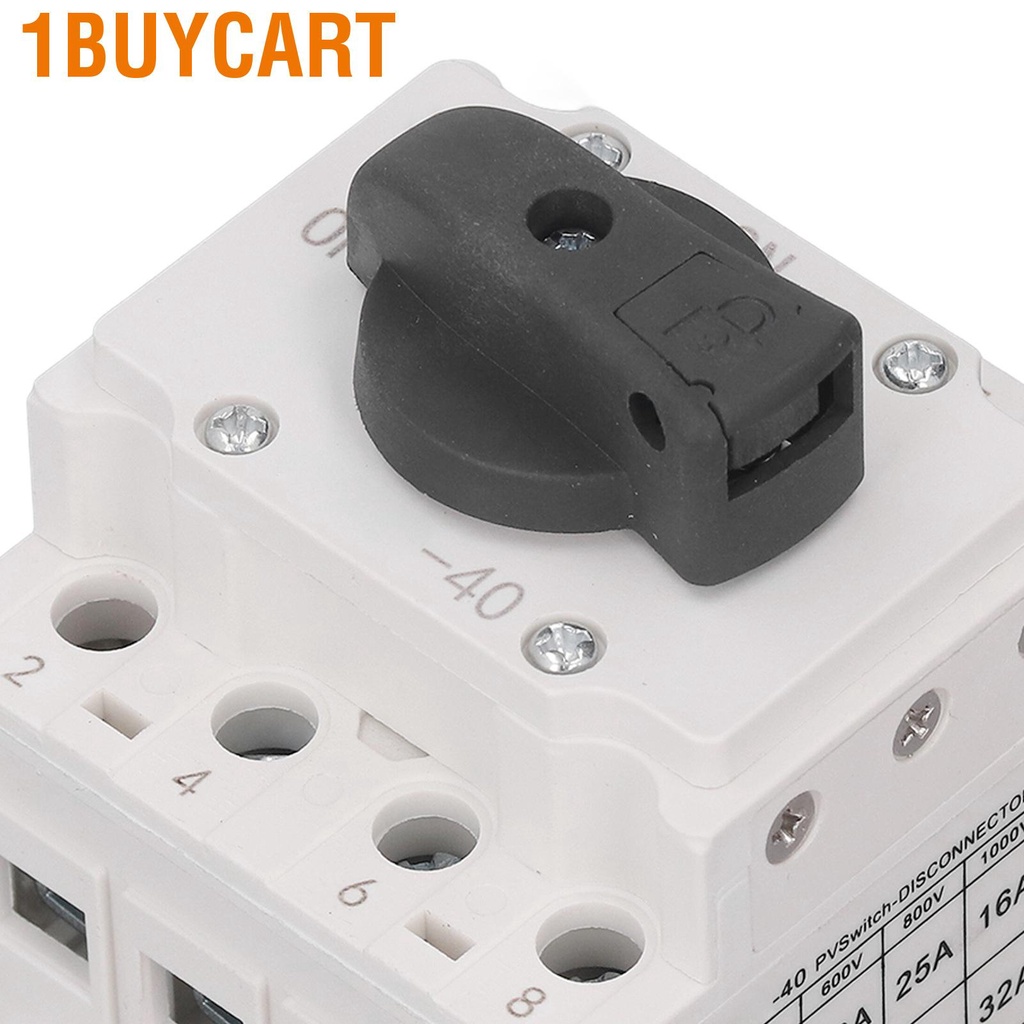

Giới thiệu 1buycart DC Solar Disconnect Switch 32A Flexible PC Flame Retardant Housing Photovoltaic Circuit Isolator 1000V
✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Feature:
1. EXCELLENT PERFORMANCE: Our solar DC disconnect switches have instantaneous on or off structure, i.e. contact pressure is not affected by external driving speed, and have good flame retardant performance.
2. EXQUISITE DETAILS: Flexible knob, flexible handle changeover, long mechanical life, silver contacts, no arcing, low resistance and strong conductivity.
3. MULTIPLE FUNCTION: The switch has integrated isolation, disconnection and switching functions and can be easily converted from an isolation switch to a transfer switch providing an innovative solution for many applications.
4. TWO KINDS OF MOUNTING: Standard 35mm DIN rail mount, screw mount, compact transfer switch for space limited locations.
5. WIDE USE: Mainly used in power distribution systems and automation systems in the building, power, petrochemical and other industries to effectively solve problems such as emergency disconnection.
Specification:
Item Type: DC Solar Disconnect Switch
Material: PC, silver
Number of Electrical Levels: 4P
Rated Voltage: DC1000V
Insulation Voltage Ui: DC1500V
Rated Impulse Withstand Voltage Uimp: 8kV
Rated Current: 32A
Operation Handle Position: 0-90°
Use Category: AC 15
Ambient Temperature: -40℃-+85℃
Electrical Life: 50,000 times
Protection Class: IP20
Installation Method: 35mm DIN rail mounting, screw mounting
Package List:
1 x DC Solar Disconnect Switch2 x Connection Pin
How to Use
Installed between the solar panel and the solar charge controller, and between the solar panel and the inverter.
