Giới thiệu 1buycart Digital Temperature Controller Module LCD Audible and Visual Alarm Data Transmission Electric Thermostat 250VAC
✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Feature:
1. LCD Display: With LCD display, the current mode and parameters of the module are clear at a glance, very clear, simple and practical.
2. Trigger Type: This thermostat supports key trigger control, high and low level trigger, and switching value control. It is applicable to most scenarios.
3. Accurate Work: When a normal heating or cooling operation is completed, the system starts to time T, and the system can only start another heating or cooling operation when T is greater than or equal to OPH.
4. Audible and Visual Alarm: When the actual temperature is greater than or equal to the alarm temperature, the system will turn on the audible and visual alarm, and then turn on the relay.
5. Data Transmission: After the temperature reporting function is turned on, the product will transmit the detected temperature to the terminal through UART at an interval of 1s for data collection.
Specification:

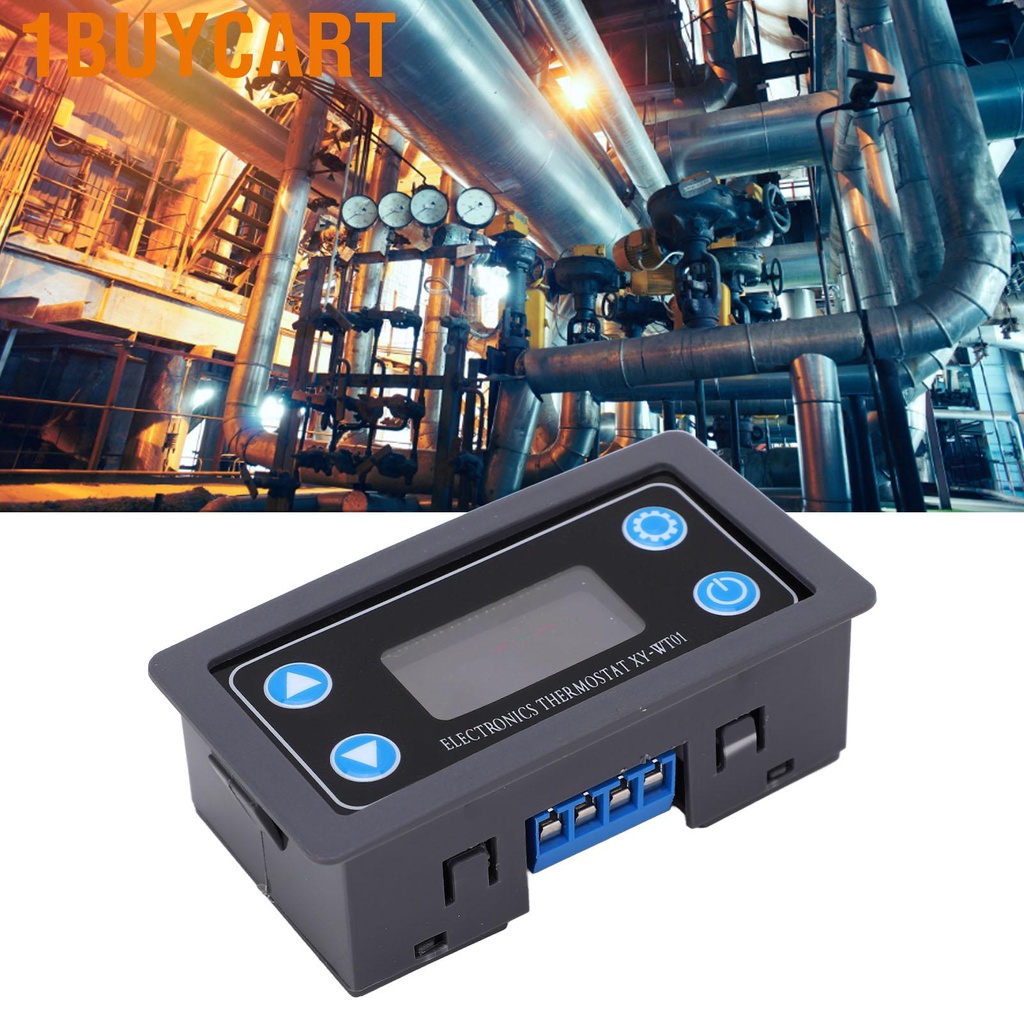

Item Type: Digital LCD Temperature Controller Module
Material: ABS
Product Mode: XY WT01
Power Supply Voltage: DC14V
Power Supply: 250VAC 10A
Temperature Control Range: - 50℃ to 110℃
Temperature Control Accuracy: 0.1℃
Measurement Input: NTC10K, B3950
Refresh Rate: 0.5 Seconds
Output Type: Relay output 10A
Probe Type: Waterproof
Probe L: Approx. 0.5m / 1.6ft
Package List:
1 x Digital LCD Temperature Controller Module1 x Cable
Note:
If closing the relay can keep the relay disconnected.
How to Use
Press STOP and SET at the same time for more than 3s to restore the factory settings.
