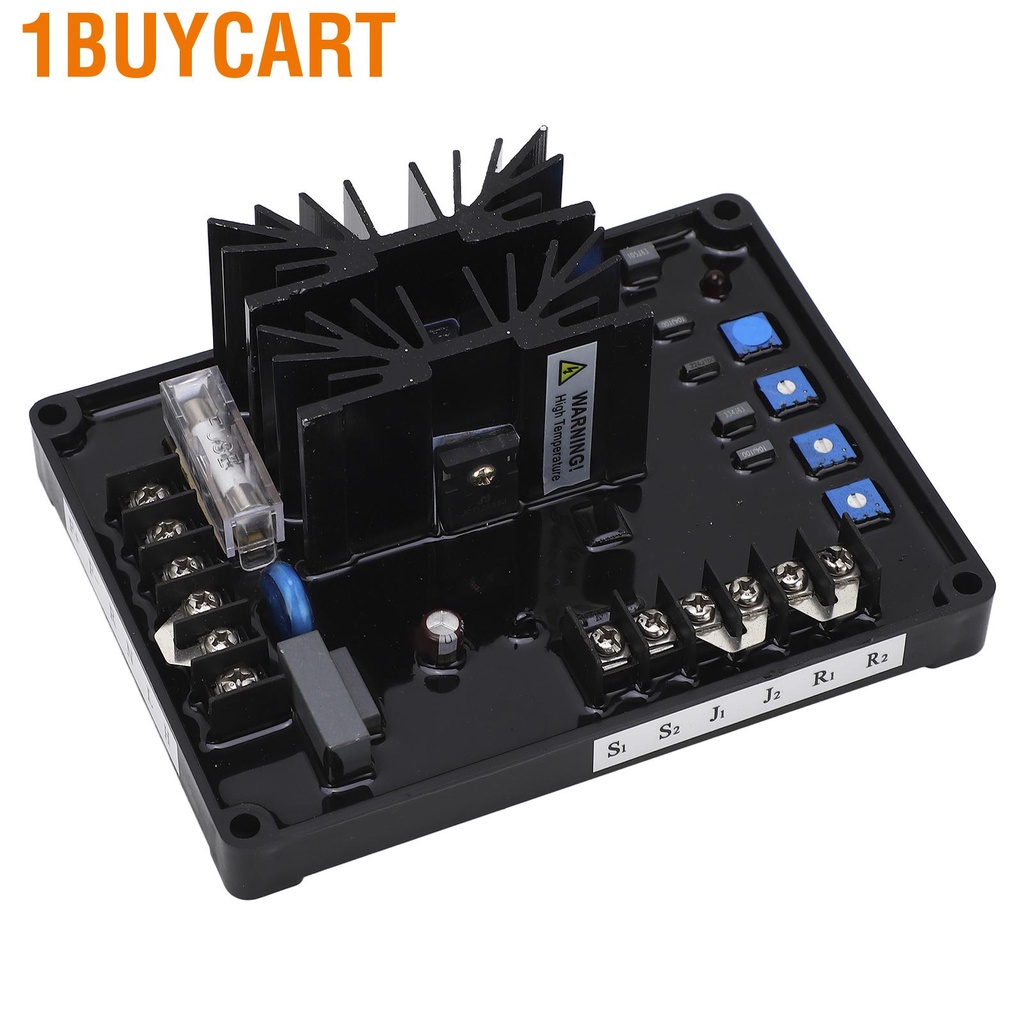

1buycart Generator Automatic Voltage Regulator Module Brushless AVR Engine Excitation Board 180‑240VAC
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Thiết bị và phụ kiện xây dựng > Giấy nhám, máy chà nhám và phụ kiện > 1buycart Generator Automatic Voltage Regulator Module Brushless AVR Engine Excitation Board 180‑240VAC
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Giới thiệu 1buycart Generator Automatic Voltage Regulator Module Brushless AVR Engine Excitation Board 180‑240VAC
✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Feature:
1. Principle of Operation: The automatic generator voltage regulator stabilizes the brushless generator to output voltage by adjusting the generator excitation current.
2. Starting Voltage: The automatic generator voltage regulator is a sealed electronic device with ultra low starting voltage and rapid response.
3. Small Temperature Drift: The brushless generator automatic voltage regulator uses industrial grade highly stable components in the key loop, with small temperature drift. Suitable for 220 440VAC brushless generators (programmable input).
4. Safe and Reliable: Brushless generator auto voltage regulator is designed with multiple independent protection circuits, safe and reliable.
5. Suppression Circuit: Brushless generator automatic voltage regulator low frequency protection and voltage slow build up function, EMI suppression circuit.
Specification:
Item Type: Generator Automatic Voltage Regulator
Material: ABS
Sensor Input Voltage: 220 400VAC 1 Phase 2 Wire
Power Input Voltage: 180 To 240VAC 1 Phase 2 Wire
Output Voltage: Maximum 90VDC At 240VDC Input
Continuous Current: 6A
Intermittent Current: 12A (10SEE)
Generator Magnetic Field Resistance: Minimum 10Ω, Maximum 100Ω
Suitable For 220 440VAC Brushless Generators (Programmable Input)
Package List:
1 x Engine Excitation Regulator Board1 x Instruction Manual
Note:
Diodes must be used to ensure that the AVR is not damaged.
How to Use
If you need to magnetize the generator set when it is turned on, please remove the AVR regulator board and then magnetize it!
