Giới thiệu 1buycart Linear Power Amplifier High Cost Performance Durable 45W HF / FM CW HAM SSB for DIY Enthusiasts
✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Features:
1. Commonly used in SSB, AM linear power amplifier, CW, FM, power amplifier, and the most basic signal amplification.
2. Easy to install and operate.
3. Low noise, high cost performance, very suitable for DIY enthusiasts.
4. The overall gain exceeds 40db, which is 10,000 times. Input 10W will output 1mW, and input 45W will output 5mW.
5. Our products are shipped as parts, not including radiators, please assemble them yourself.
Specification:
Input power: 1-5mW
Output power: 45W (maximum)
Input voltage: DC 13.8V 10A or higher
Maximum output power: 57W (without heat sink)
Output impedance: 50 ohms, adjustable between 10-200 ohms as needed
Input frequency range: 3M-30MHz (HF channel)
Input / output interface: standard SMA interface, external threaded hole
Frequency input range output power:
3.500MHz----54W
7.050MHz----56W
10.000MHz----57W
14.270MHz----55W
21.400MHz----41W
24.000MHz----37W
28.100MHz----25W
29.600MHz----20W
Weight: approx. 62g
Package List:

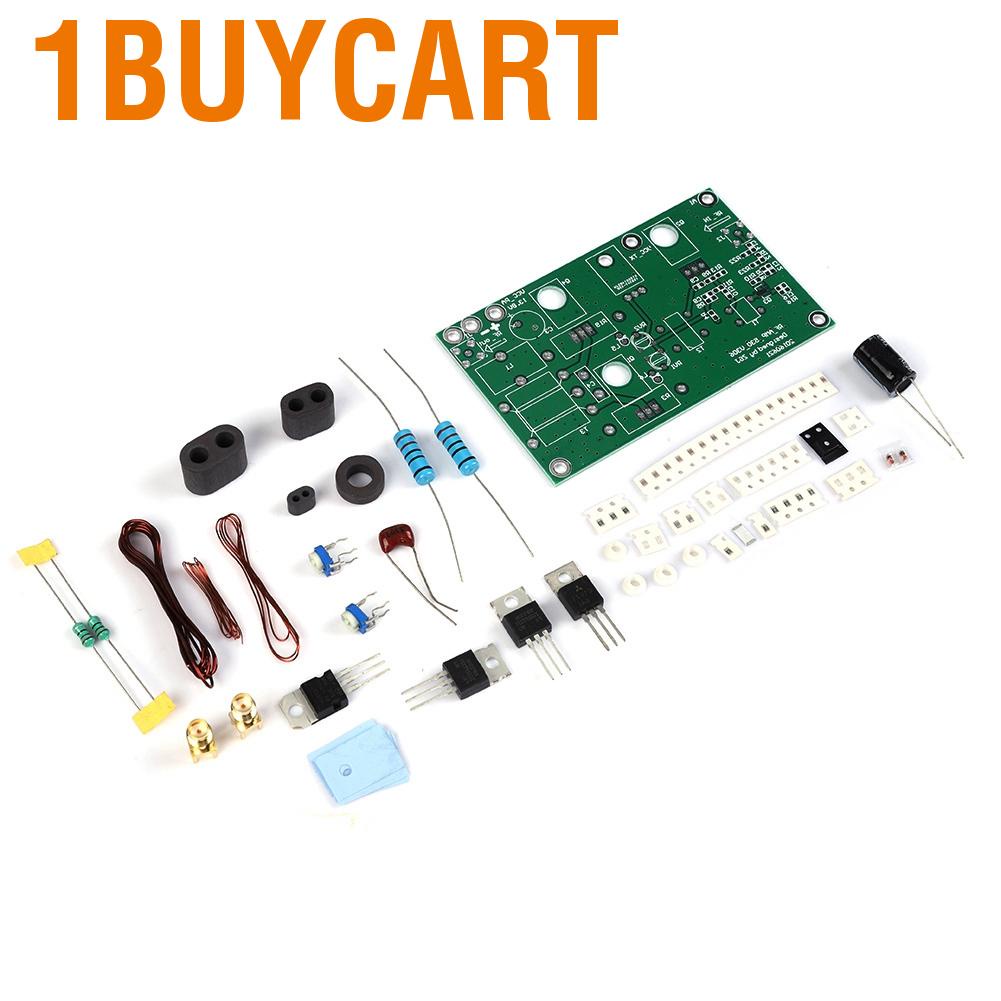

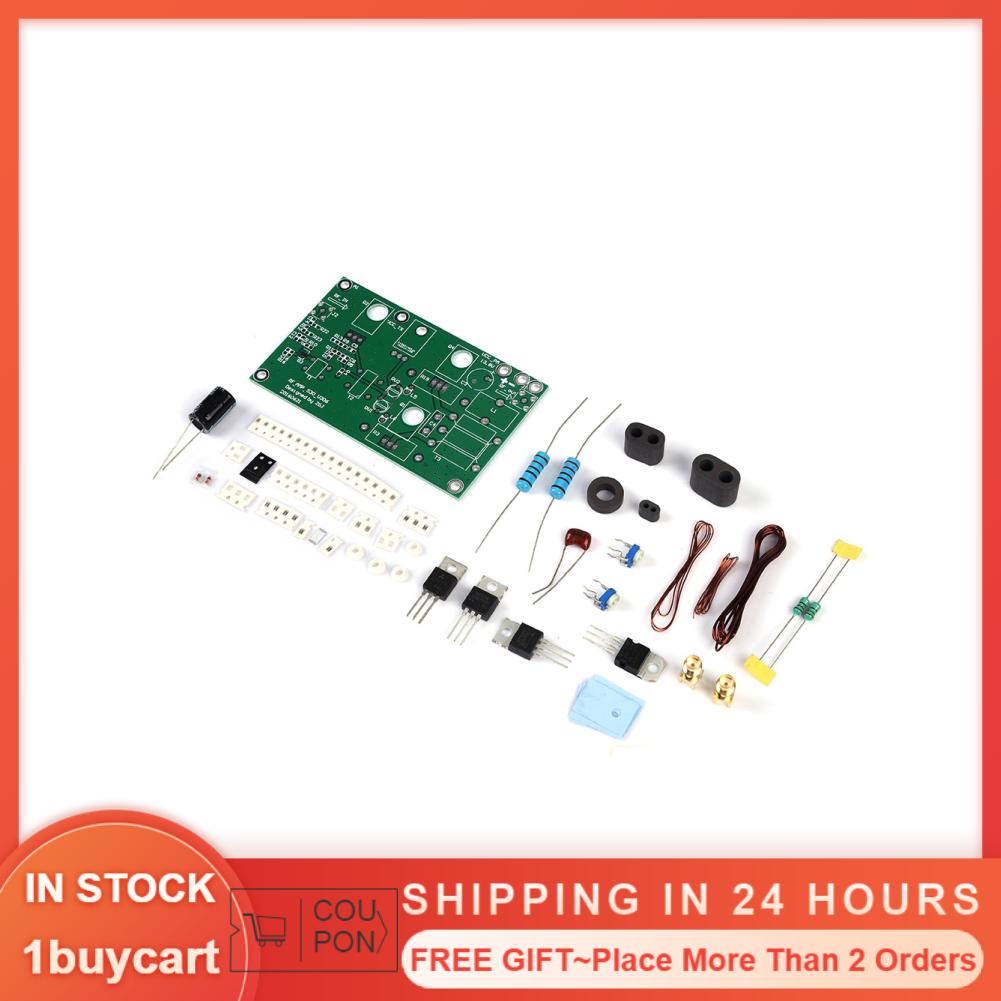

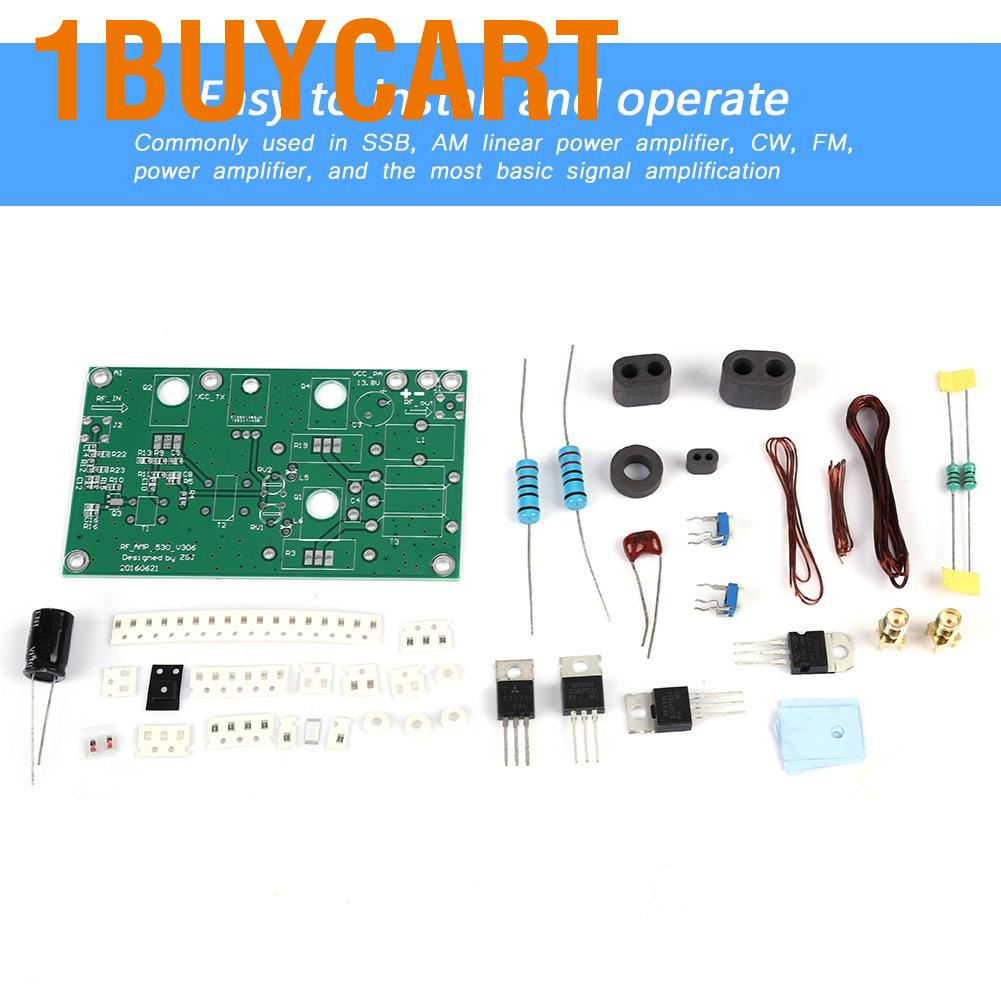

1 * Power Amplifier DIY Kit
