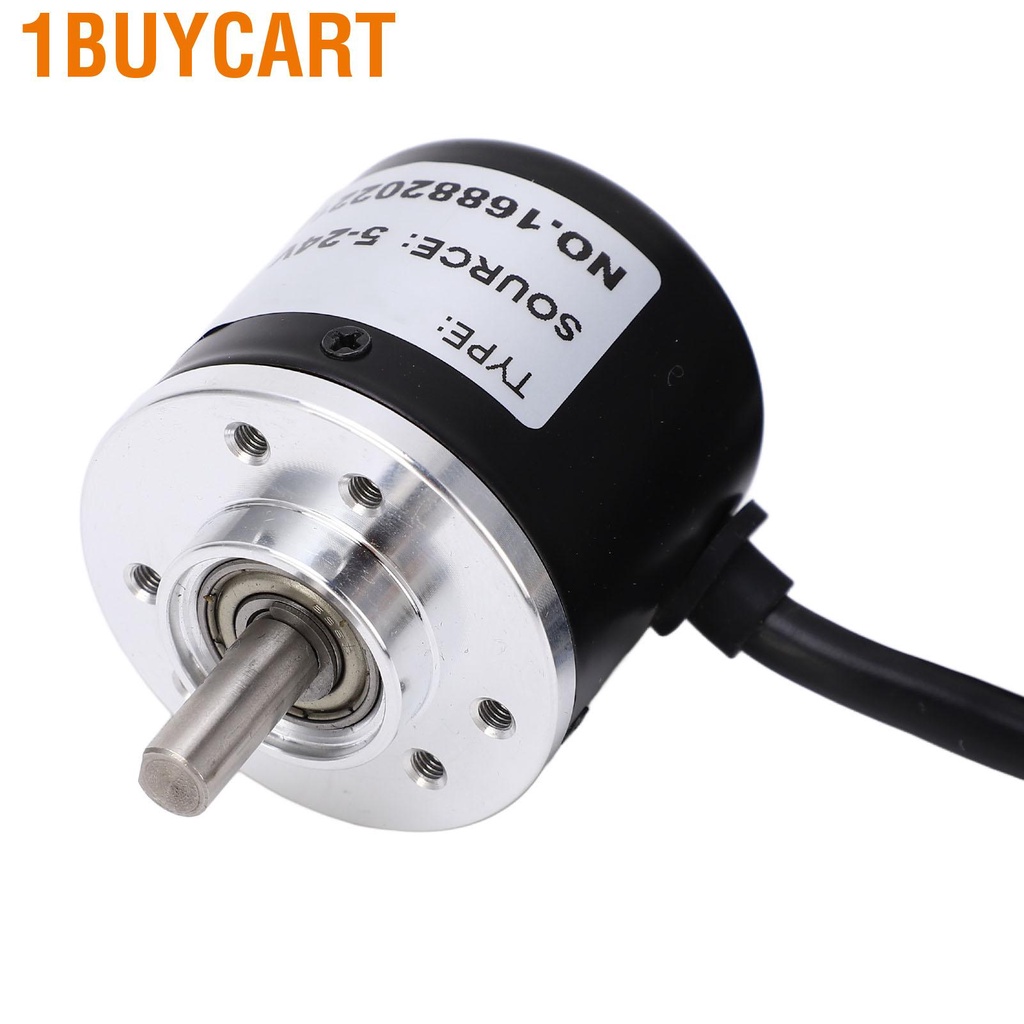

1buycart Photoelectric Rotary Encoder Gear Box Motor Incremental 6mm D Type Output Shaft 5‑24V
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Thiết bị mạch điện > Thiết bị mạch điện khác > 1buycart Photoelectric Rotary Encoder Gear Box Motor Incremental 6mm D Type Output Shaft 5‑24V
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Sản phẩm tương tự
Giới thiệu 1buycart Photoelectric Rotary Encoder Gear Box Motor Incremental 6mm D Type Output Shaft 5‑24V
✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Feature:
1. Excellent Gear: All metal gear has high temperature resistance and strong bearing capacity, effectively protecting the main body of the gear box motor.
2. Multiple Usages: Photoelectric incremental rotary encoder, which can be used to measure the rotating speed, angle, acceleration and length of objects.
3. Stainless Steel Shaft: 6mm D type output shaft design, made of stainless steel, impact resistant, improving bearing quality and service life of gear motor.
4. Stable Operation: NPN collector open circuit output mode, and side outlet mode, which ensures stable and reliable operation, with less interference.
5. Wide Application: Used for measuring various displacement changes, such as intelligent control, full automatic fixed length leather cutting machine, competition robot, etc.
Specification:
Item Type: Photoelectric Encoder
Outer Diameter: Approx. 39mm / 1.5in
Type: Solid Shaft
Shaft Diameter: Approx. 6mm / 0.24in
Working Voltage: 5-24V
Outgoing Mode: Side Out
Cable Length: Approx. 1.3 meter / 4.3ft
Output Mode: NPN collector open circuit
Purpose: Used to measure the rotation speed, angle, acceleration and length of objects.
Package List:
1 x Photoelectric Encoder
Note:
1. The encoder shall not be rigidly connected with the shaft. The photoelectric encoder with elastic connector is a high accuracy sensor. It is strictly prohibited to knock during installation.
2. Please do not put the encoder output line and power line together or in the same slot, or near the switchboard.
How to Use
Take out the product as shown in the figure.
