1buycart PV Solar Disconnect Switch 2 Input Output Photovoltaic Circuit Isolator 32A DC1000V String IP66 Waterproof

Dụng cụ và thiết bị tiện ích > Thiết bị mạch điện > Ổ chuyển đổi > 1buycart PV Solar Disconnect Switch 2 Input Output Photovoltaic Circuit Isolator 32A DC1000V String IP66 Waterproof
  • Giao hàng toàn quốc
  • Được kiểm tra hàng
  • Thanh toán khi nhận hàng
  • Chất lượng, Uy tín
  • 7 ngày đổi trả dễ dàng
  • Hỗ trợ xuất hóa đơn đỏ

Giới thiệu 1buycart PV Solar Disconnect Switch 2 Input Output Photovoltaic Circuit Isolator 32A DC1000V String IP66 Waterproof

✌ large-scale Discount Voucher Code!!Enter a discount code to buy more offers!✍
☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap!Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
Feature:
1. HIGH PERFORMANCE: DC main switch is used to turn off all poles of the solar module. Installed on the string between the module and the power grid inverter or charge controller, which is an excellent circuit breaker. Depending on the configuration, switching current up to 32A can be switched at voltages up to 1500V
2. IP66 WATERPROOF: Exquisite shell, excellent material selection, PC flame retardant material, with good insulation, high water resistance, good dimensional stability, high temperature resistance, acid and alkali resistance
3. WITH COMBINATION LOCK: When manual switch back to close, pull out the pull bolt can be locked, can be repeatedly inserted and removed, prevent misoperation, provide safe docking, long service life
4. COMPACT AND PRACTICAL: Suitable for places with limited space. Guide rail installation, easy installation. Load breaking up to 8 times rated current makes it ideal for motor isolation
5. WIDE APPLICATION: This switch is widely used in RV, marine and off grid solar systems, grid connected solar systems, DC power systems, marine power systems, solar photovoltaic systems or other DC systems
Specification:
Item Type: PV Solar Disconnect Switch
Material: PC
Rated Voltage: DC1000V
Insulation Voltage Ui: DC1500V
Rated Impact Tolerance Voltage Uimp: 8kV
Rated Current: 32A

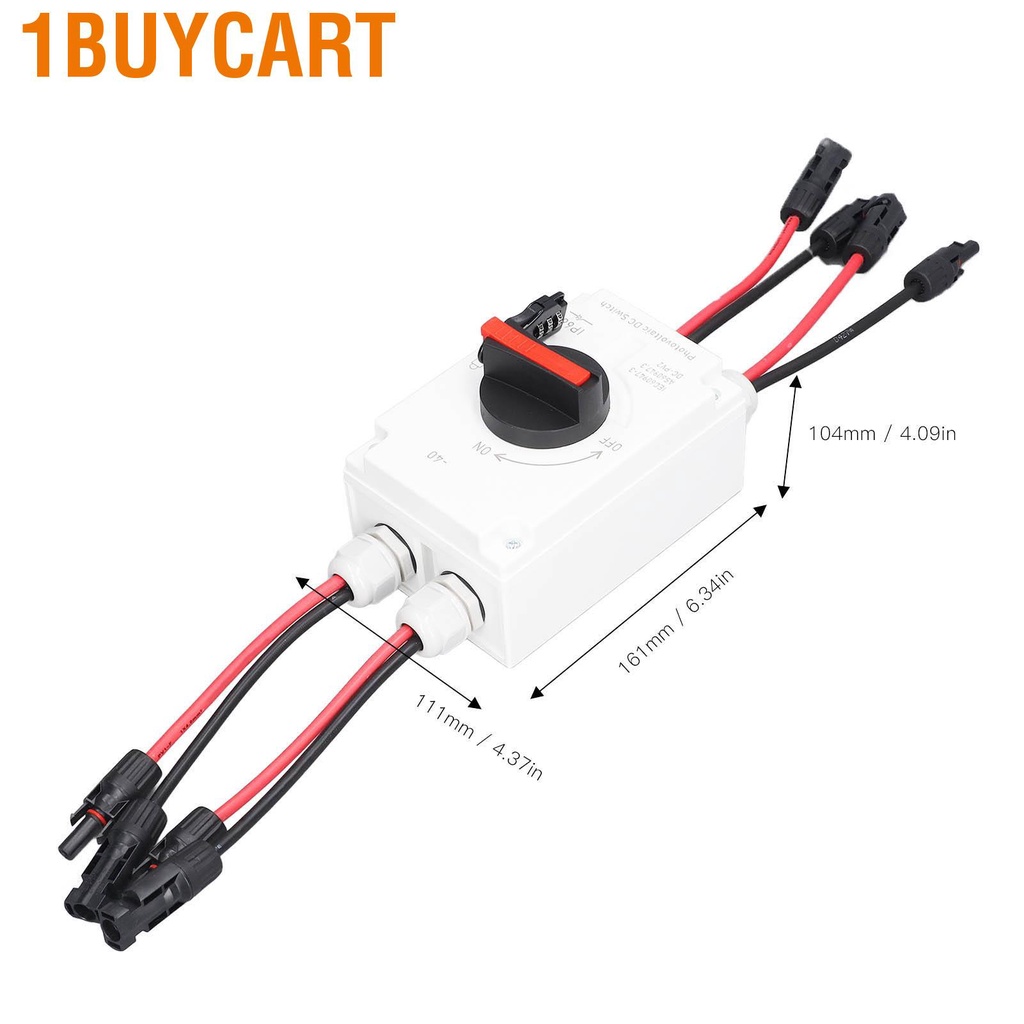

Product Size: Approx. 111 x 104 x 161mm / 4.37 x 4.09 x 6.34in
Waterproof Class: IP66
Fall Resistance: 1000, 1700
Standard: IEC60947-3
Ambient Temperature: -40℃~+85℃
Connection Type: M20 connector
Package List:
1 x Photovoltaic DC Isolation Switch1 x Combination Lock8 x Screw8 x Wall Plug16 x Connector Accessories(4 sets)1 x Solar Special Wrench1 x User Manual
How to Use
Please install and operate according to the instructions.
