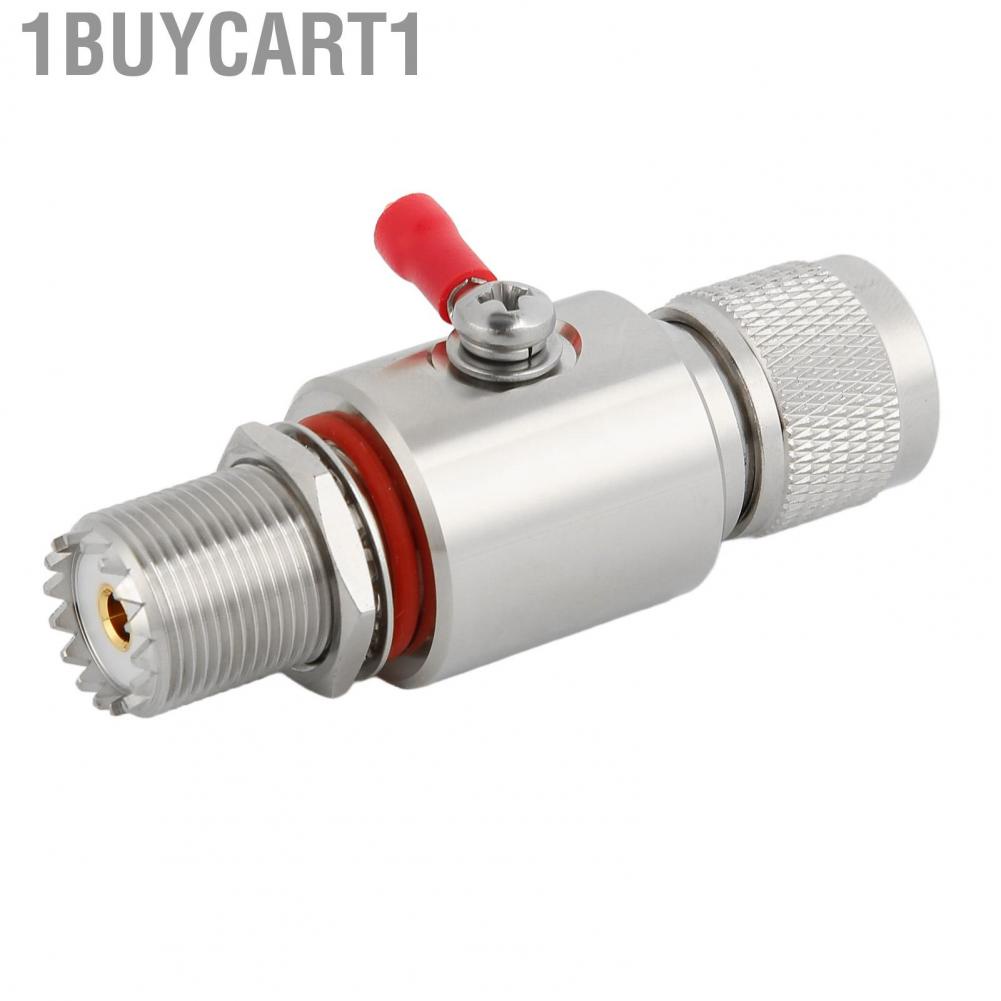

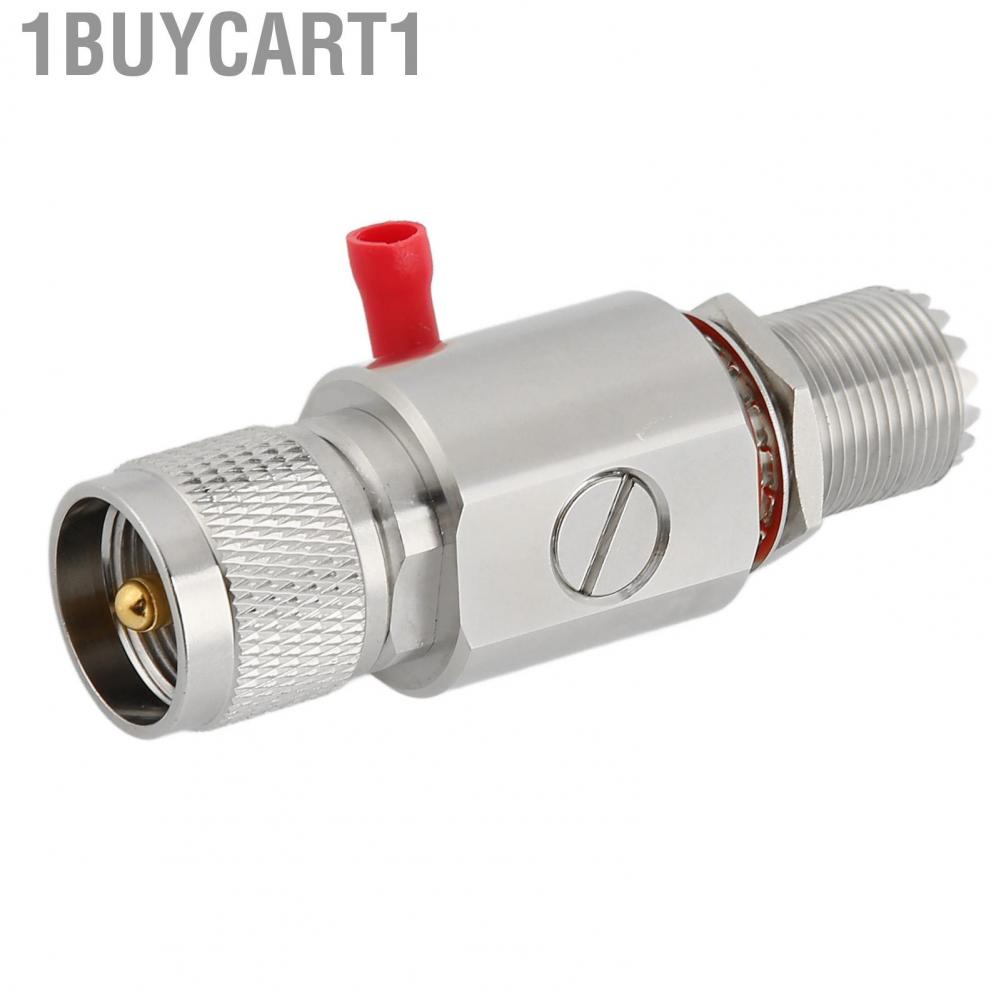

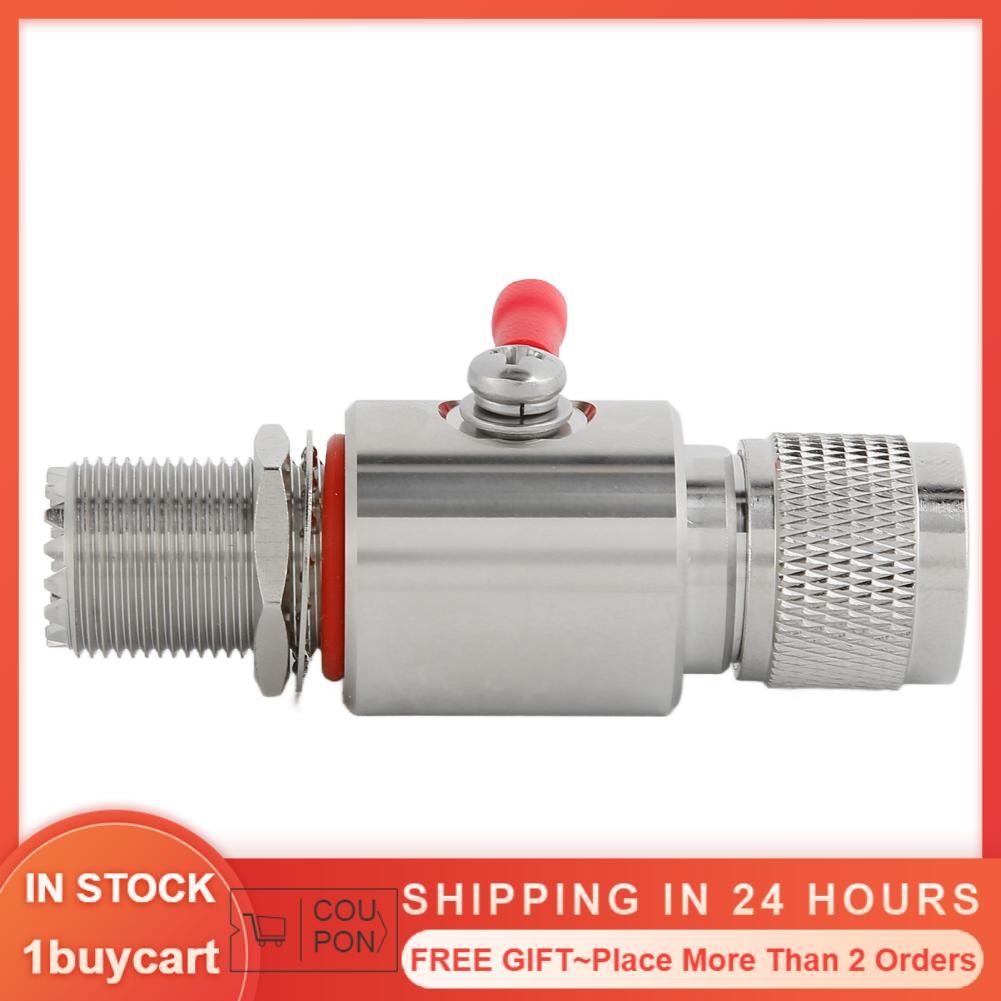

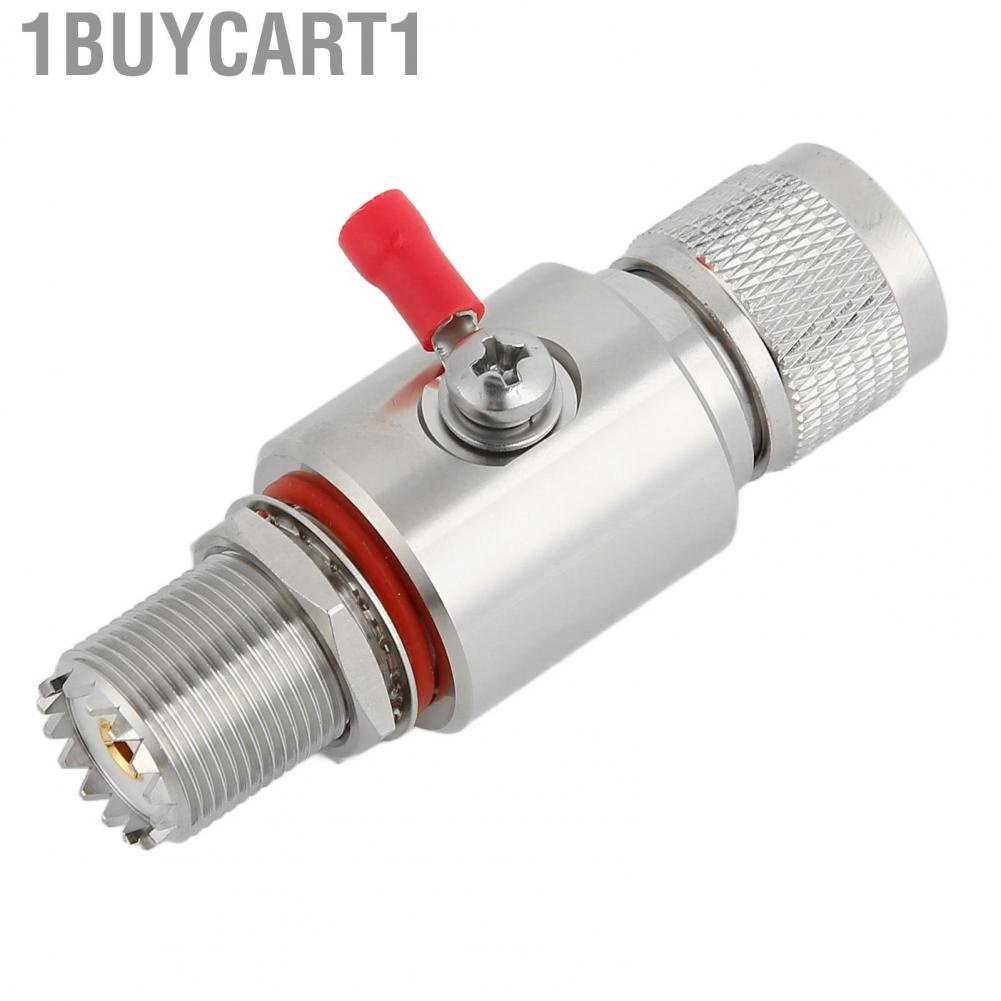

1buycart1 Arrestor UHF Coaxial Surge Protector For CB HAM R Hot

Giới thiệu 1buycart1 Arrestor UHF Coaxial Surge Protector For CB HAM R Hot

✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍
☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
1. FEMALE TO FEMALE: Coaxial UHF lightning arrester (UHF female) socket to socket (UHF female), coaxial cable lightning surge protector. With ground screw connection for easy installation.
2. METHOD OF INSTALLATION: Connect a thick copper wire (8 or 10 gauge) from the grounding screw on the side of the arrester to a ground rod driven into the ground with a minimum length of 3 feet.
3. LOW LOSS: UHF lightning arrester from DC 3GHz for reliable broadband performance, insertion loss 0.1dB and VSWR 1.2, replaceable 90V gas tube element with high surge power capability.
4. APPLICABLE: Lightning surge protector provides extremely low loss HF VHF UHF other frequency equipment. Suitable for CB radios, HAM equipment and two way base stations.
5. INSTALLATION LOCATION: Lightning arrester is installed as close as possible to the equipment to be protected, usually at the location where the coaxial cable enters the building, or it can be installed near the to provide additional protection.

Specification:
Item Type: Lightning Arrester
Material: Metal
Frequency Range: DC 3GHz
Discharge Voltage: DC 90V
Impedance: 50 Ohm
Insertion Loss: VSWR: 1.2
Maximum Power: 50W
Maximum Surge Voltage Allowed to Pass: 200 mV
Throughput Energy: 5 nJ
Maximum Current Load: 10A

How to Use:
Installation is complete and ready to use

Package List:
1 x Lightning Arrester

Hình ảnh sản phẩm
