Giới thiệu 1buycart1 Audio Video Converter Lightweight and Portable Compact SDI To HDMI for

✌ large-scale Discount Voucher Code!!Enter a discount code to buy more offers!✍
☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap!Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
1. Support full HD 1920x1080P, the image is clear and beautiful, which can present details.
2. Using pure hardware technology to process, it can automatically detect different SDI signals.
3. Connect with other equipment to extend the signal distance, which has strong practicality.
4. 1‑way standard definition/HD/3G‑SDI/BNC input signal, HDMI (1.3 CTS) / HDMI A output signal.
5. Compact size, lightweight and portable, easy to carry and store, which is very convenient to use.

Specification:
Item Type: SDI to HDMI Converter
Material: Metal
Input Signal: 1 way standard definition/HD/3G-SDI / BNC
Output Signal: HDMI (1.3 CTS) / HDMI A type
Interface Type:
Uplink Output Interface: 1 HDMI Type A Female
Downlink Input Interface: 1 channel 3G HD-SDI (SMPTE 292M, 424M) / BNC
Power Consumption: 5V DC / 500mA ± 10% adapter power supply
Input Resolution:
1920x1080p(60/50/30/25/24) Hz
1920x1080i(60/50)Hz
1280x720p(60/50)Hz
Output Resolution:
1920x1080p(60/50/30/29/25/24) Hz
1920x1080i(60/50)Hz
1280x720p(60/50)Hz
Signal Indicators:
Impedance: 75 ohm
DC Level Offset: 0V±500mv, signal level is 800mv±10%
Reflection Loss: Standard definition is below 13db, HD-SDI is below 10db
Rise and Fall Time: Standard definition is 400ps to 1500ps HD-SDI is less than 270ps
Rise And Fall Time Difference: Less than 10%
Jitter: Less Than 0.2UI p-p
Temperature:
Operating Temperature. -10℃ - 50℃ (14-122℉)
Relative Humidity. 30%-85%
Storage Temperature. -10℃ - 85℃ (14-176℉)

Package List:
1 x SDI Converter
1 x AC Power Adapter
1 x Manual

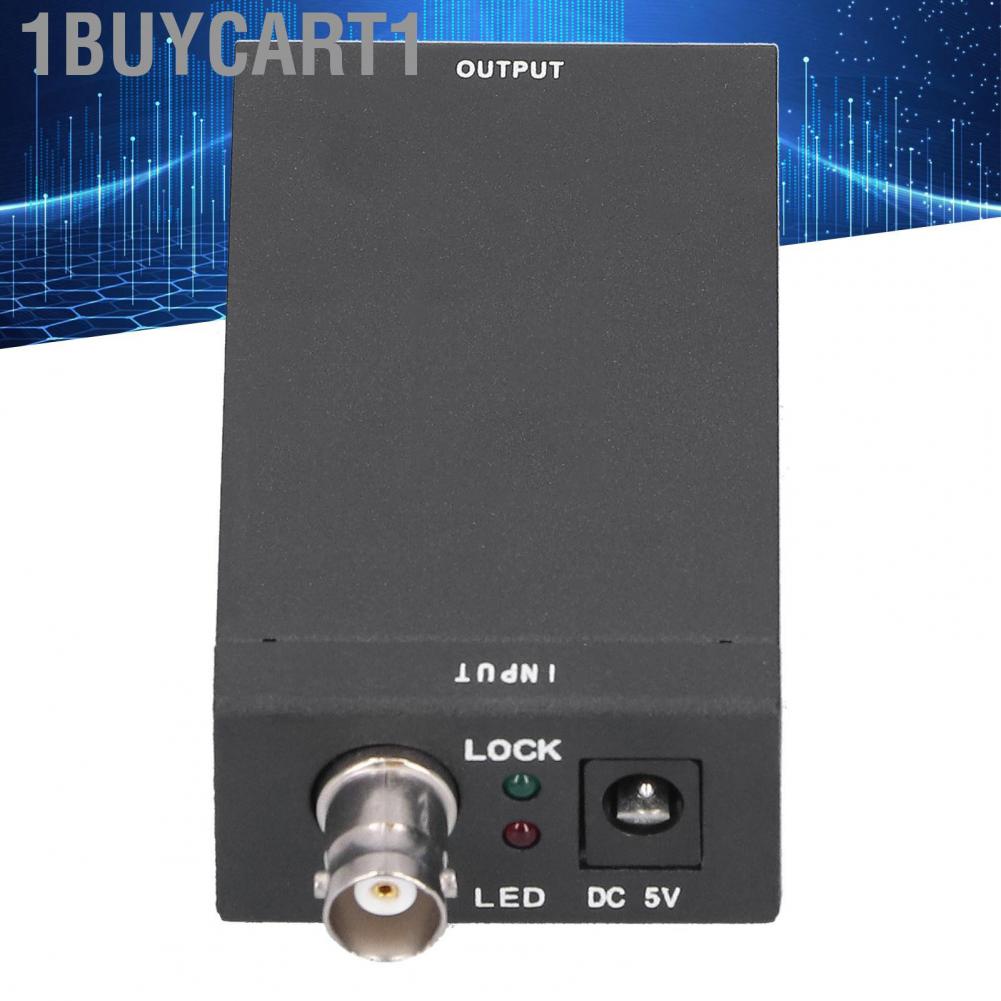

Hình ảnh sản phẩm
