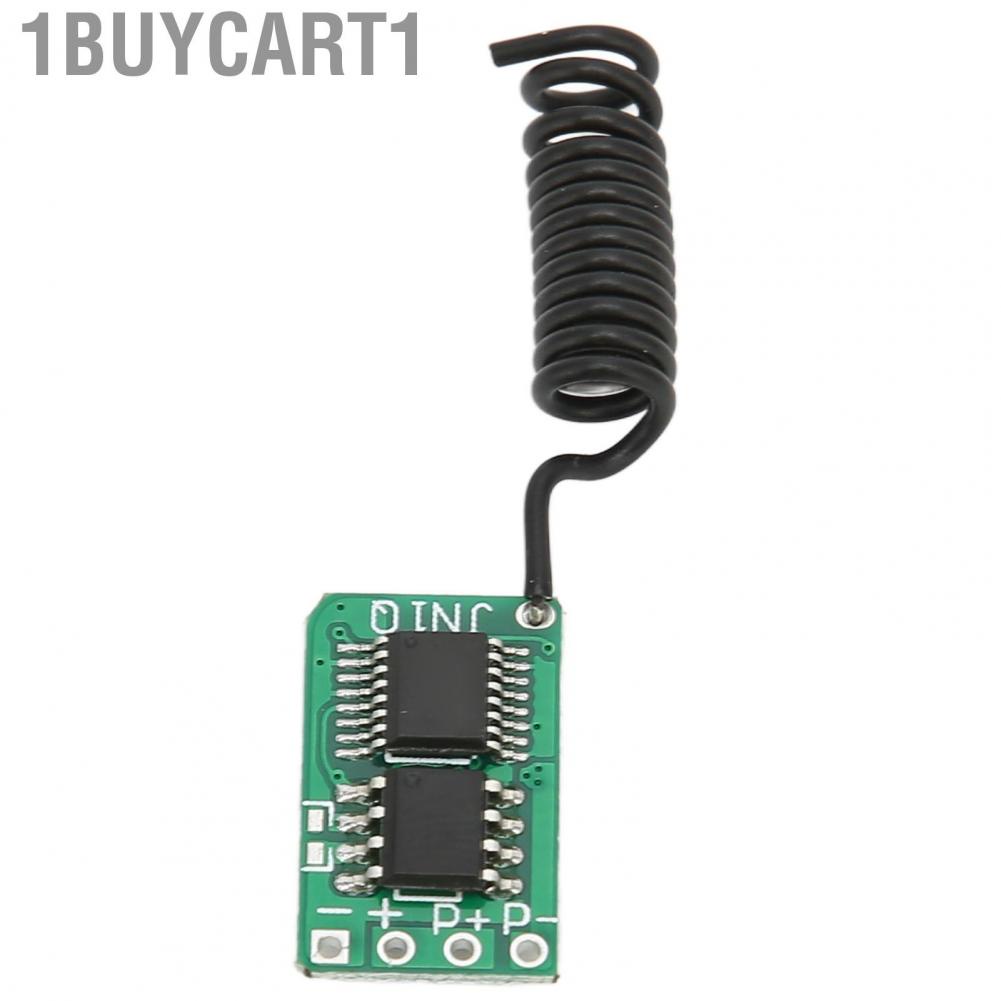

1buycart1 DC3.6V‑12V Low Power Consumption 433MHz Smart Control Relay Switch GOB

Giới thiệu 1buycart1 DC3.6V‑12V Low Power Consumption 433MHz Smart Control Relay Switch GOB

✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍
☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
1. HIGH QUALITY MATERIAL: The switch is made of high quality ABS material, which is durable and can ensure long term use.
2. INDEPENDENT OUTPUT: The control switch module contacts independent output, which is very suitable for direct control of various loads.
3. PREVENT INTERFERENCE: Adopt learning code coding technology (space to code), no directionality, no interference between switches.
4. WORKING MODE: Self locking, interlocking, momentary, users can freely adjust, can realize one control multiple, multiple control one.
5. APPLICATION: Suitable for electrical control circuits of anti‑theft alarm, control electric doors and windows, signal control, industrial control, lifting equipment, etc.

Specification:
Item Type: Switch
Material: ABS
Working Voltage: DC3.6V-12V
Maximum Load: 1A (Best Load is Less Than 700mA (0.7A))
Working Frequency: 433MHz
Standby Quiescent Current: 0.5mA/h
Working Current: 7mA/h
Frequency Deviation: Greater Than or Less Than 0.2MHz
Working Temperature: -20℃-+80℃
Receiving Sensitivity: ≥-114dBm
Built In Button Battery in the Control: 2 x CR2016(75mAh)

How to Use:
Learning code:
Input 12V for the receiver, connect the set point, and the receiver Led indicator will light up. Press the  control button A once, the Led indicator flashes once, then press the  control button B once, the Led indicator flashes once again, indicating successful learning
Clearing code:
Connect the set point. Until the receiver Led indicator flashes 5 times, it means that the code is cleared
Operating mode:
Momentary: Press the button to turn it on. Release your finger when the button is off
Switch: Press the button once to turn on. Press the same button again to turn off
Lock: Press the button of the transmitter button A, the receiver relay A is connected, press the button B, the receiver is disconnected
How to change the working mode:
T4: Connect the learning button. Until the Led indicator of the receiver flashes once, it means that the T4 is successfully replaced.
M4: Connect the learning button. Until the Led indicator of the receiver flashes twice, it means that the M4 has been replaced successfully.
L4: Connect the learning button. Until the Led indicator of the receiver flashes 3 times, it indicates that the L4 is successfully replaced.

Package List:
1 x Control
1 x Module
