Giới thiệu 1buycart1 Lightning Arrester Professional Female to UHF Coaxial Surge Protector for CB HAM Equipment
✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻

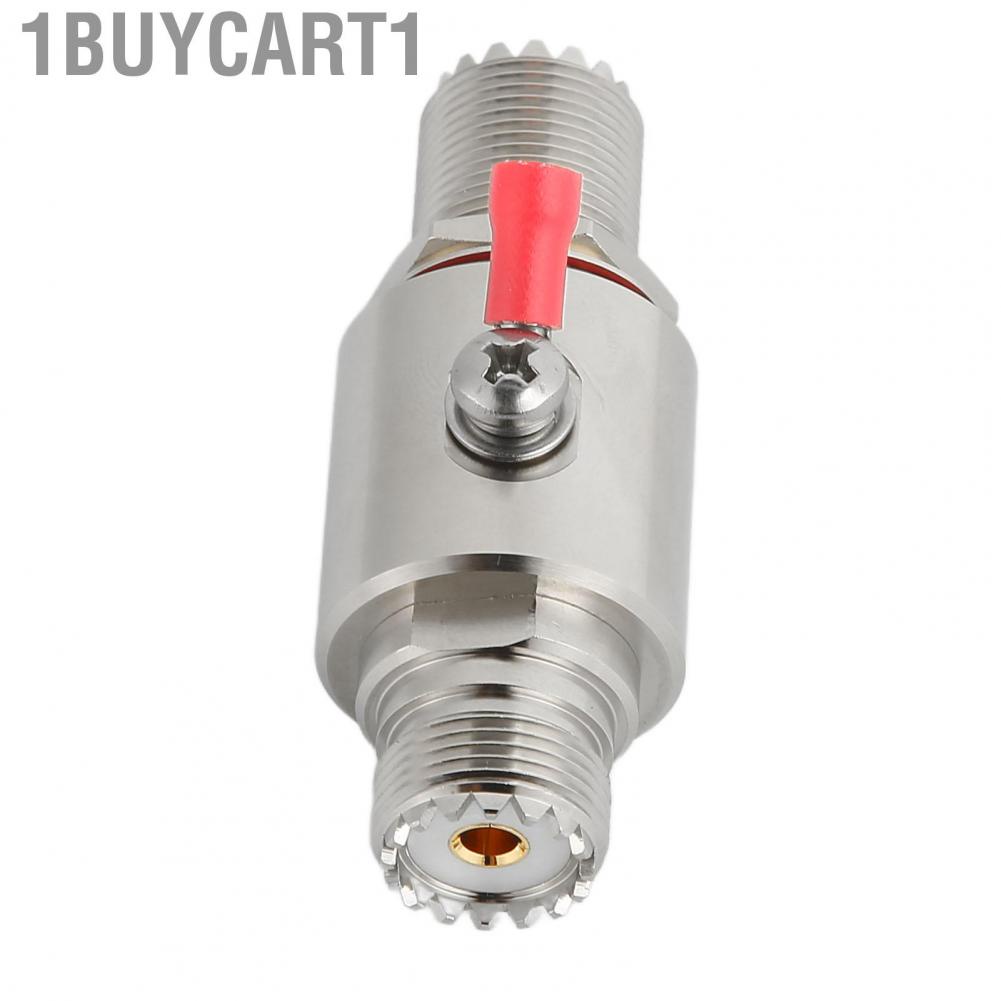

1. Professional: Coaxial UHF lightning arrester (UHF female) socket to socket (UHF female), coaxial cable lightning surge protector. With ground screw connection for easy installation.
2. Simple Operation: Coaxial lightning surge protector connects a thick copper wire (8 or 10 gauge) from the grounding screw on the side of the arrester to a ground rod driven into the ground with a minimum length of 3 feet.
3. Superior Performance: Lightning arrester with superior construction, reliable broadband performance from DC 3GHz, insertion loss of 0.1dB and VSWR 1.2, replaceable 90V gas tube element with high surge power capability.
4. Safety Protection: UHF coaxial lightning surge protector can guard your life, the protector provides extremely low loss for HF VHF UHF other frequency devices.
5. Low Consumption: Coaxial lightning surge protector has less than 0.1dB insertion loss. Suitable for CB radios, HAM equipment and two way base stations.
6. Cautions: The lightning surge protector should be installed as close as possible to the equipment to be protected, usually at the point where the coaxial cable enters the building. It can also be installed near the to provide additional protection.
Specification:
Item Type: Lightning Arrester
Material: Metal
Frequency Range: DC 3GHz
Discharge Voltage: DC 90V
Impedance: 50 Ohm
Insertion Loss: Vswr: 1.2
Maximum Power: 50W
Maximum Surge Voltage Allowed to Pass: 200 mV
Throughput Energy: 5 nJ
Maximum Current Load: 10A
How to Use:
The installation is complete and start to use.
Package List:
1 x
Lightning Arrester
