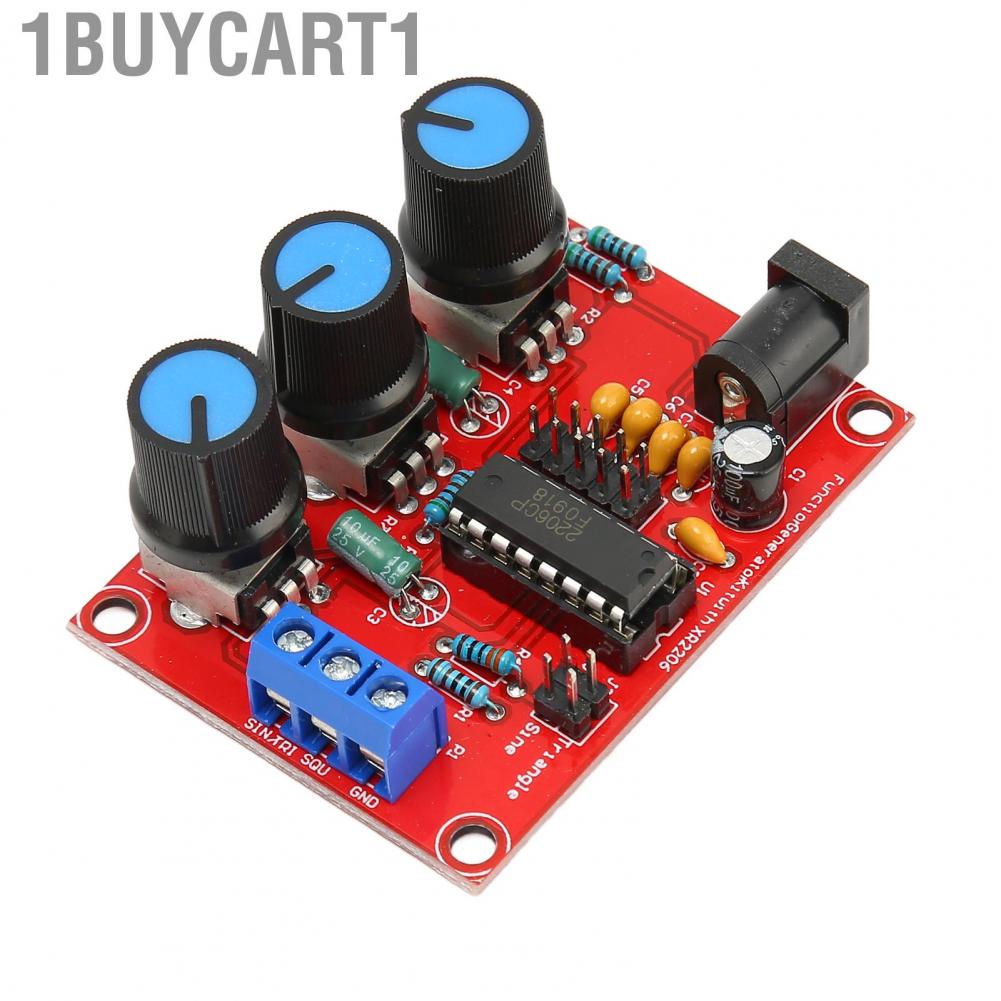

1buycart1 XR2206 Function Signal Generator Output 1Hz‑1MHz Sine Triangle Square Adjustable Frequency DIY Kit for Many Kinds Of Generators

Giới thiệu 1buycart1 XR2206 Function Signal Generator Output 1Hz‑1MHz Sine Triangle Square Adjustable Frequency DIY Kit for Many Kinds Of Generators

✌ large-scale Discount Voucher Code！！Enter a discount code to buy more offers！✍
☚ All ready stock !! ☛=
☜ High quality product ☝
☟ Good packaging ✌
We will arrange 24 hours shipping asap！Fast delivery (from China) 5 to 12 business days after shipment(except some special holidays).
♔ ♕ ♖ ☻
1. High Resolution: The Frequency module signal generator can generate sine, triangle and square wave forms.
2. Adjustable Frequency: XR2206 function signal generator has a frequency of 1 hz‑1mhz, coarse and fine adjustment of frequency and amplitude.
3. High Accuracy: This XR2206 function signal generator with case is accurate and practical. 2 for one sale, easy to use.
4. Applicable: Signal generator DIY Kit has a wide range of power supply, using 9‑12V external power supply or 9V battery (not included).
5. Easy to Install: This is a DIY kit, all are through hole components, easy to assemble your own function generator. Easy to install.

Specification:
Item Type: Signal Generator Kit
Material: PCB
Size: Approx. 44.9 x 61.3mm/1.77 x 2.41in
Voltage Supply: DC 9-12V Input
Waveform: Square, Sine and Triangular
Impedance: 600 Ohm + 10%
Frequency Range: 1Hz-1MHz
Sine Wave
Amplitude: 0 - 3V at 9V DC Input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
Square Wave
Amplitude: 8V at 9V DC Input (no Load)
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
Triangular Wave
Amplitude: 0 - 3V at 9V DC Input
Linearity: Less than 1% (up to 100kHz) 10mA

Package List:
1 x Signal Generator
6 x Cases
9 x Screws
5 x Nuts
2 x DIY Accessories
1 x Instruction Manual

Note:
Please allow some errors due to manual measurement.
