5 cảm biến mực nước dạng thẳng đứng

Giới thiệu 5 cảm biến mực nước dạng thẳng đứng

Specification:
Product Name : Water Level Sensor
Model No. : ZP4510
Max Contact Rating : 10W
Max Switching Voltage :100V DC/AC
Max Switching Current : 0.5A
Max Breakdown Voltage : 220V DC/AC
Max Carry Current : 3A
Max Contact Resistance : 100m ohm
Temperature Rating : -10 / +85 Celsuis
Float Ball Material : P.P
Float Body Material : P.P
Thread Dia(Approx) : 9.5mm / 0.374"
Switch Body Size : 23.3 x 57.7mm / 0.9" x 2.27"(Max D*H)
Cable Length : 36cm / 14.2"
Color : White
Net Weight : 44g

Description:
SA float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.
Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.
Due to product batch is different, cable color may be different, we will random shipment.

Package Content:
5pcs x Water Level Sensor

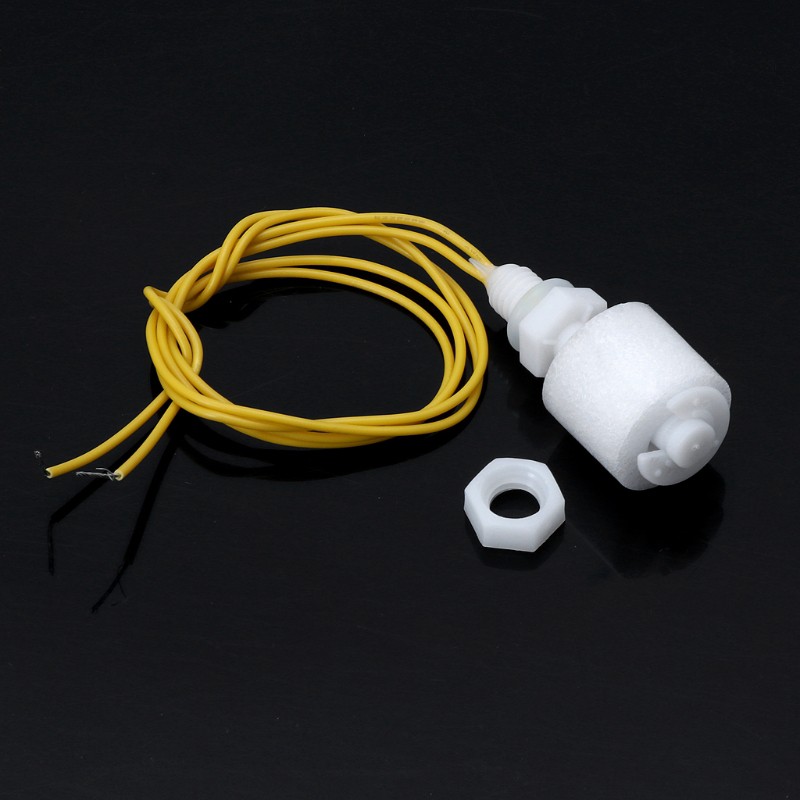

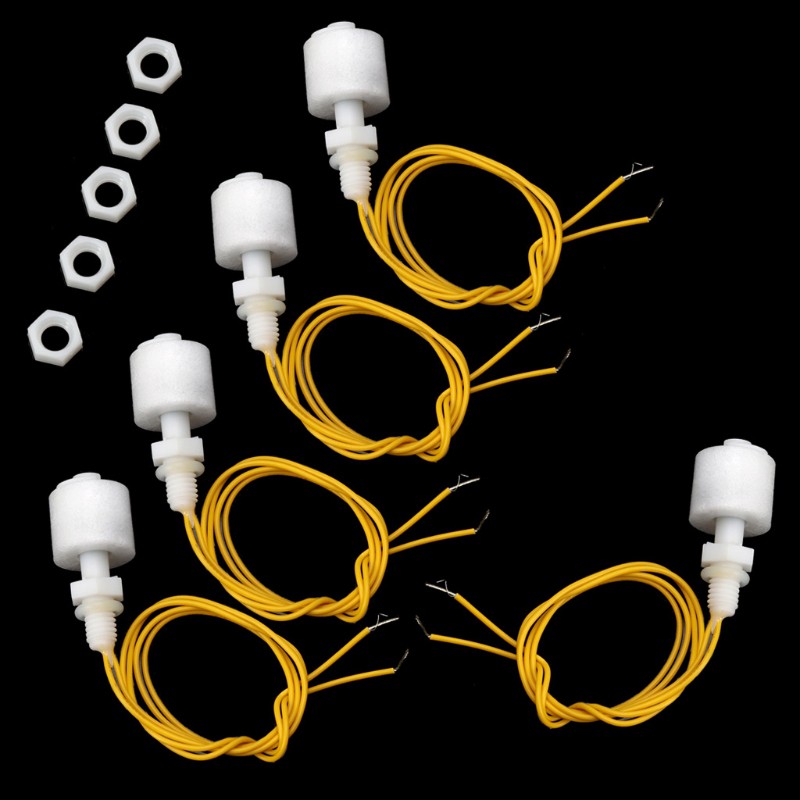

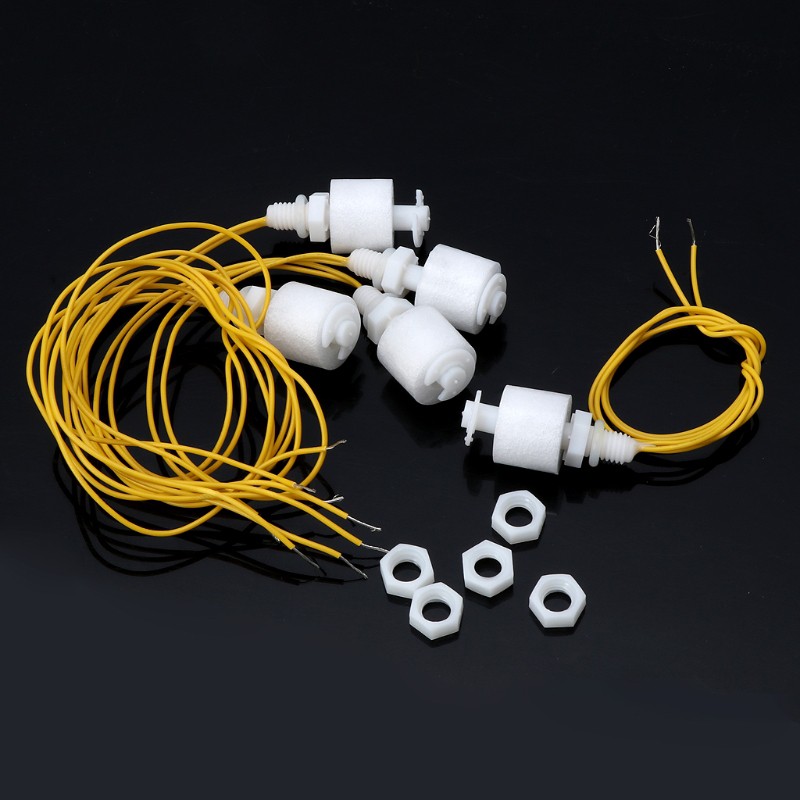

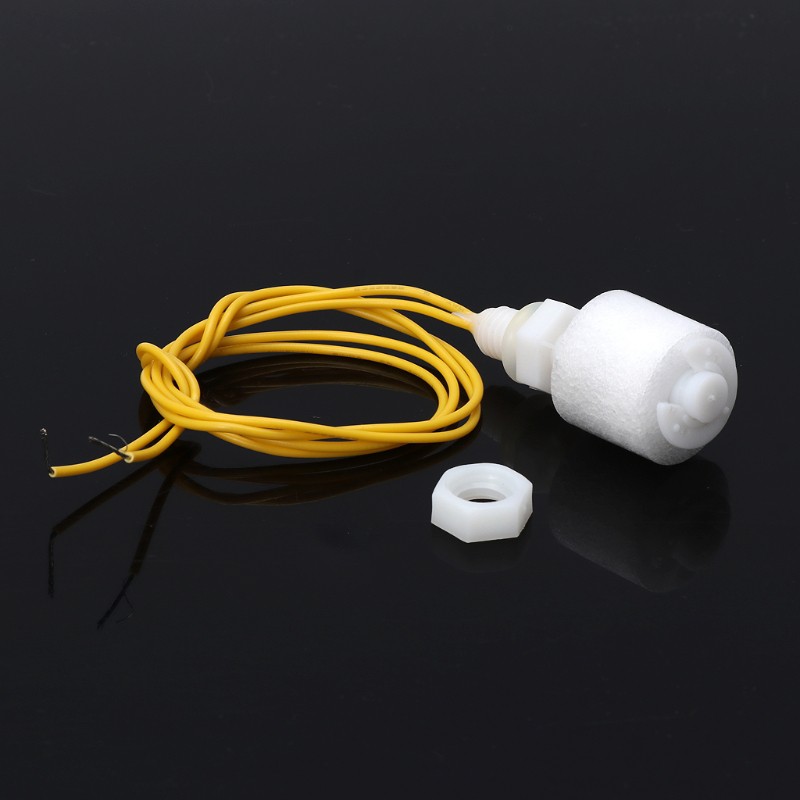

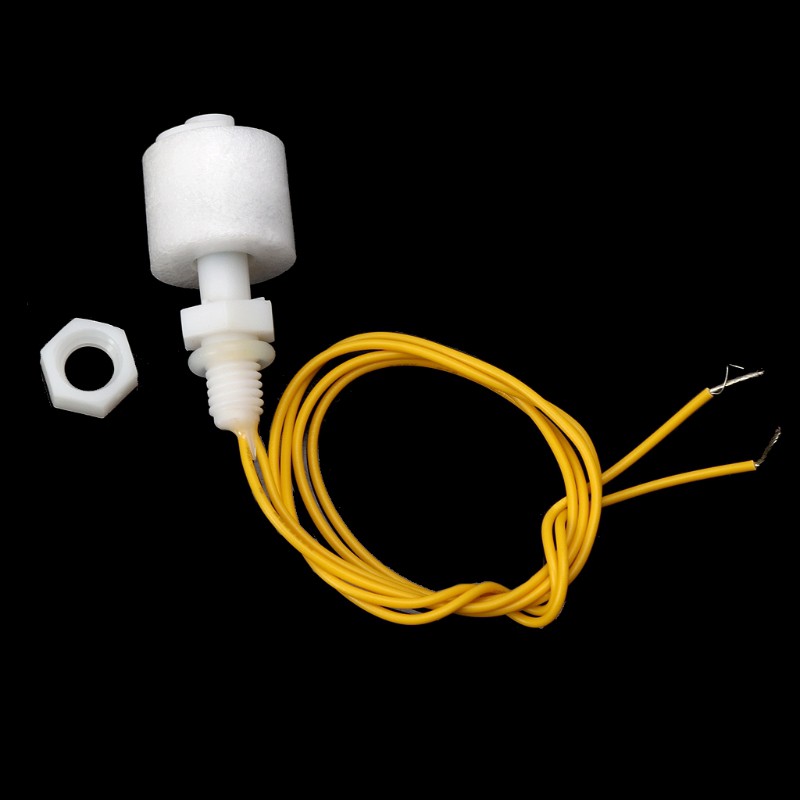

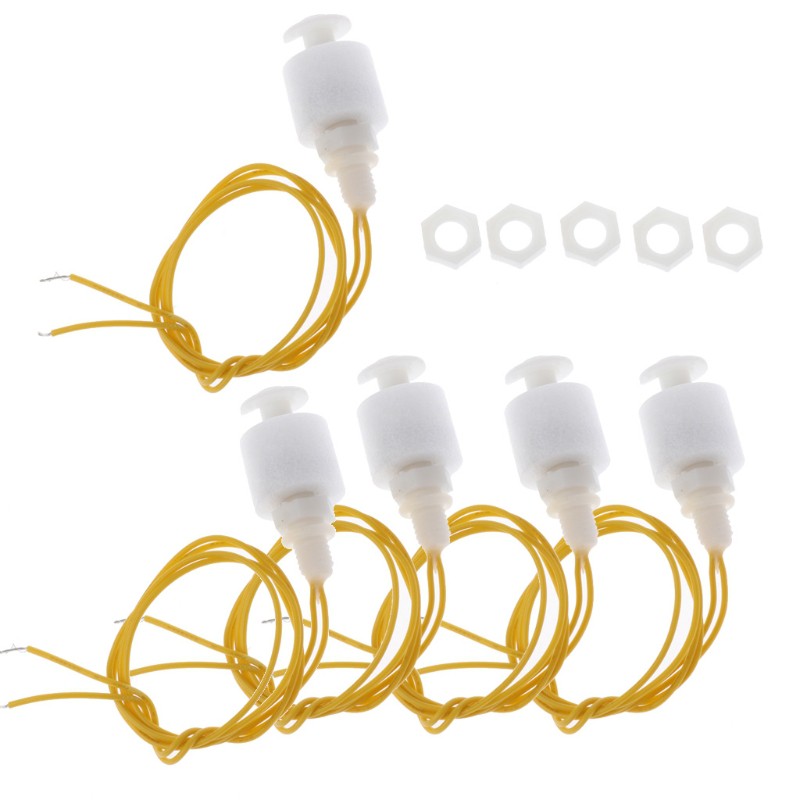

Hình ảnh sản phẩm
