Giới thiệu Bộ 50/100 đèn 2W 6V / 1W 3V 3535 SMD LED cho ti vi
Description:
Item type:Lamp beads
MODEL NAME : A127CECEBUP8C-607
Forward Current (IF ): 350mA Pulse
Forward Curren t1 (IFp): 500mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 5V (5mA)
Power Dissipation (PD): mW
Operation Tgemperature (Topr): -40 - +85 ° C
Storage Temperature (Tstg): -40 - +100 ° C
Soldering Temperature (Tsld): Reflow Soldering:260 ° C for 10secs Hand Soldering:350 ° C for 3secs
Junction Tnemperature (Tj ): 110 ° C
Forward Voltage (VF): 3.15-3.40V (350mA)
Luminous Flux (LM): 120-150lm (350mA)
Package Include:
50/100 x product, 1 x Manual, 1 x box packaging
Note:
The colors deviation might differ due to different monitor settings.

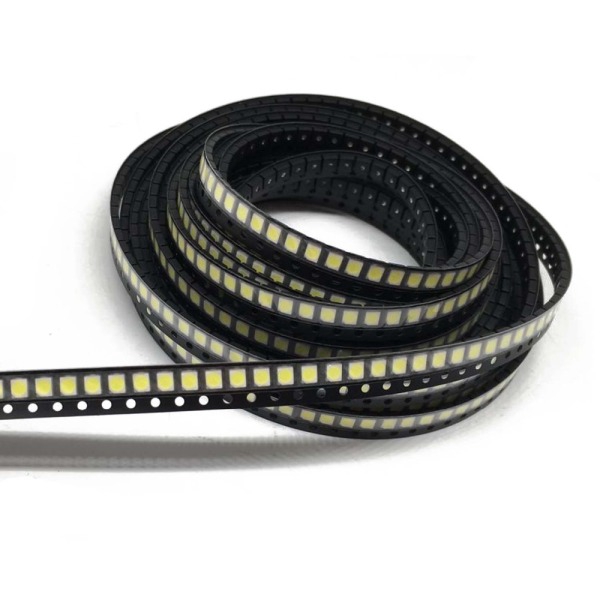

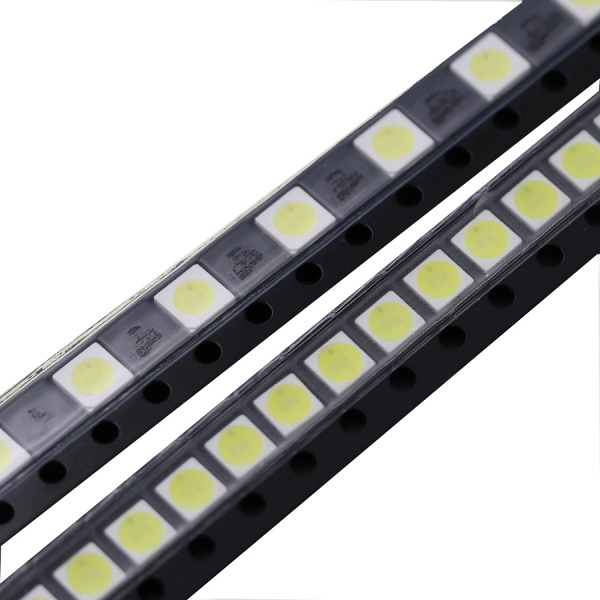

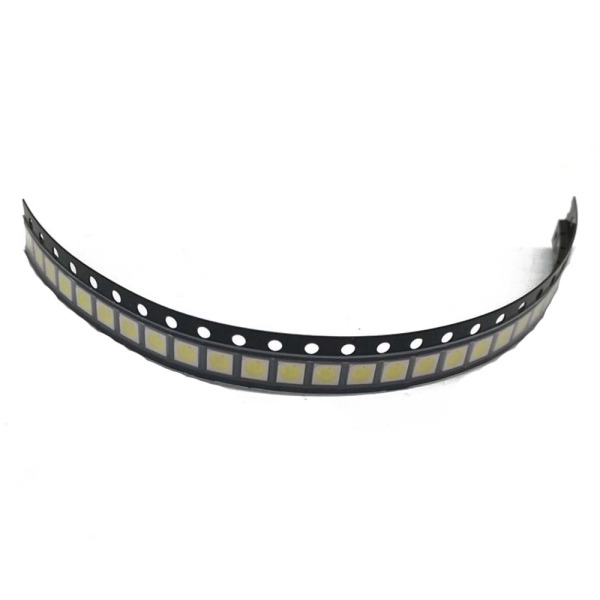

Hình ảnh sản phẩm
