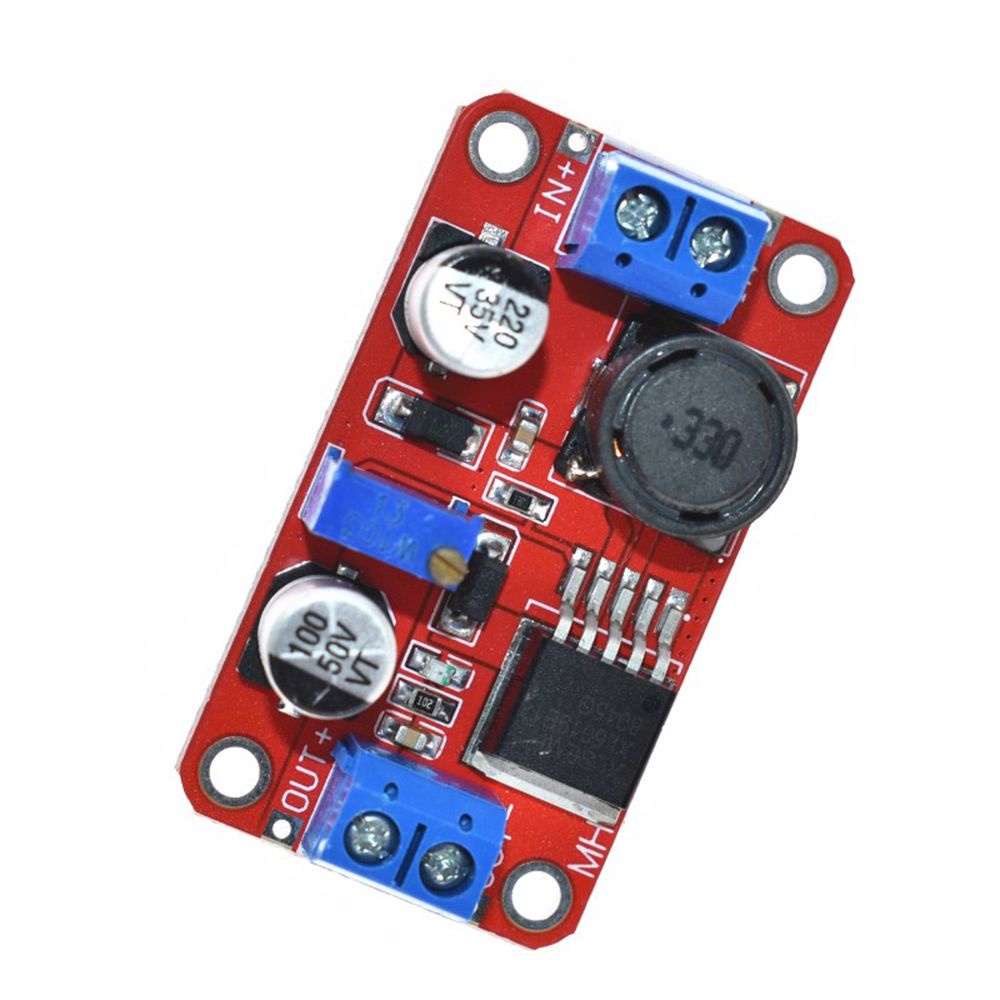

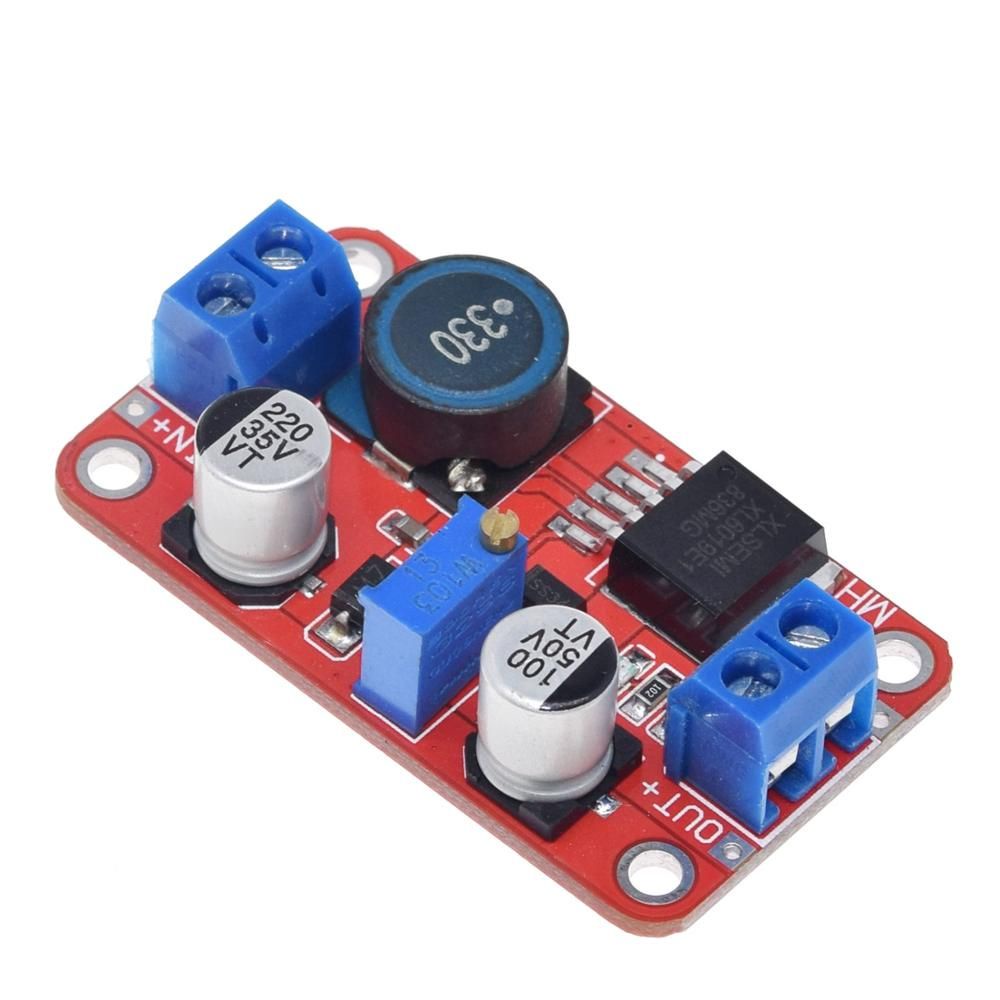

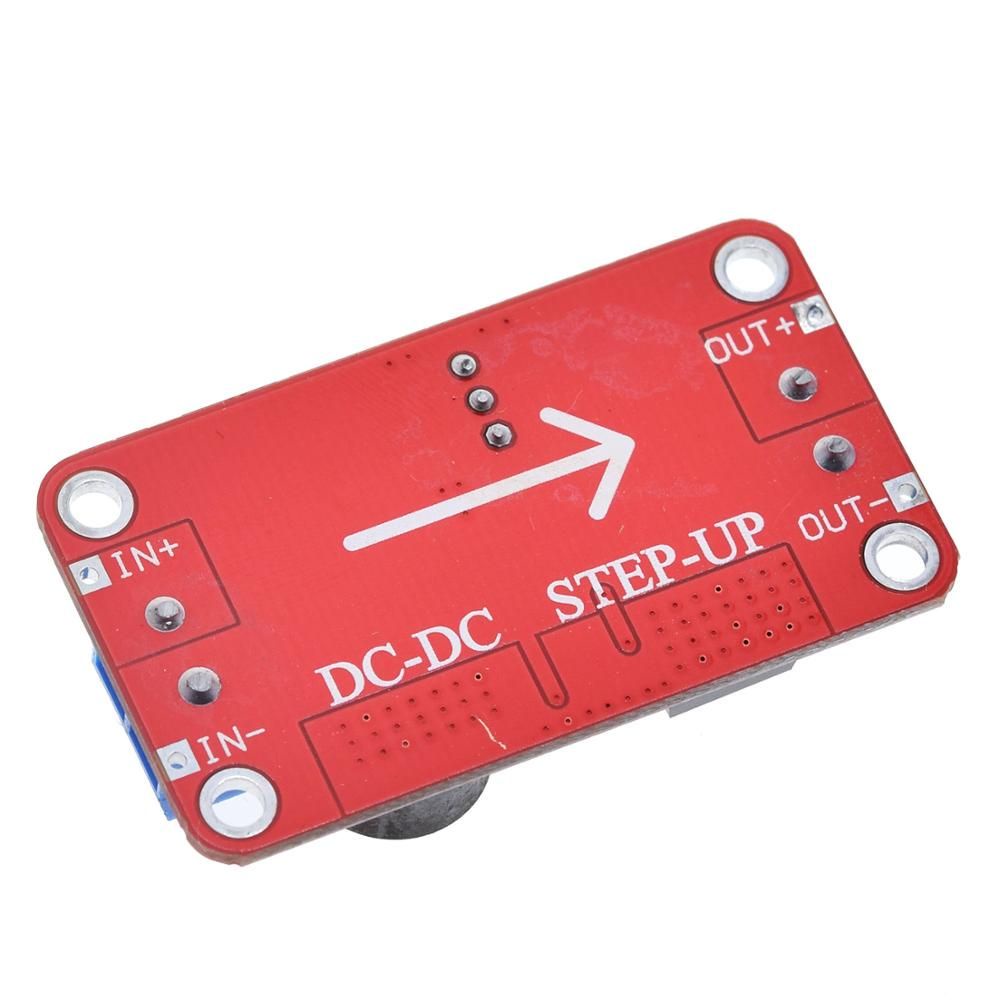

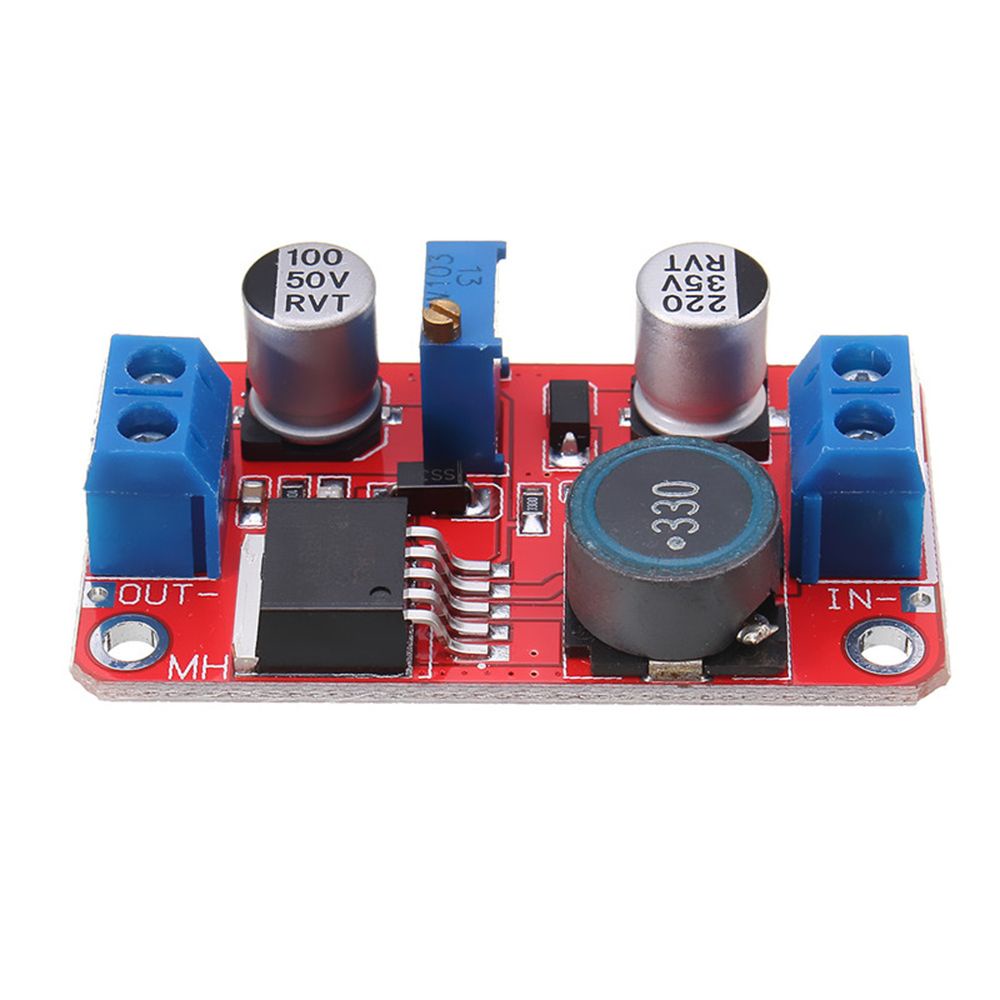

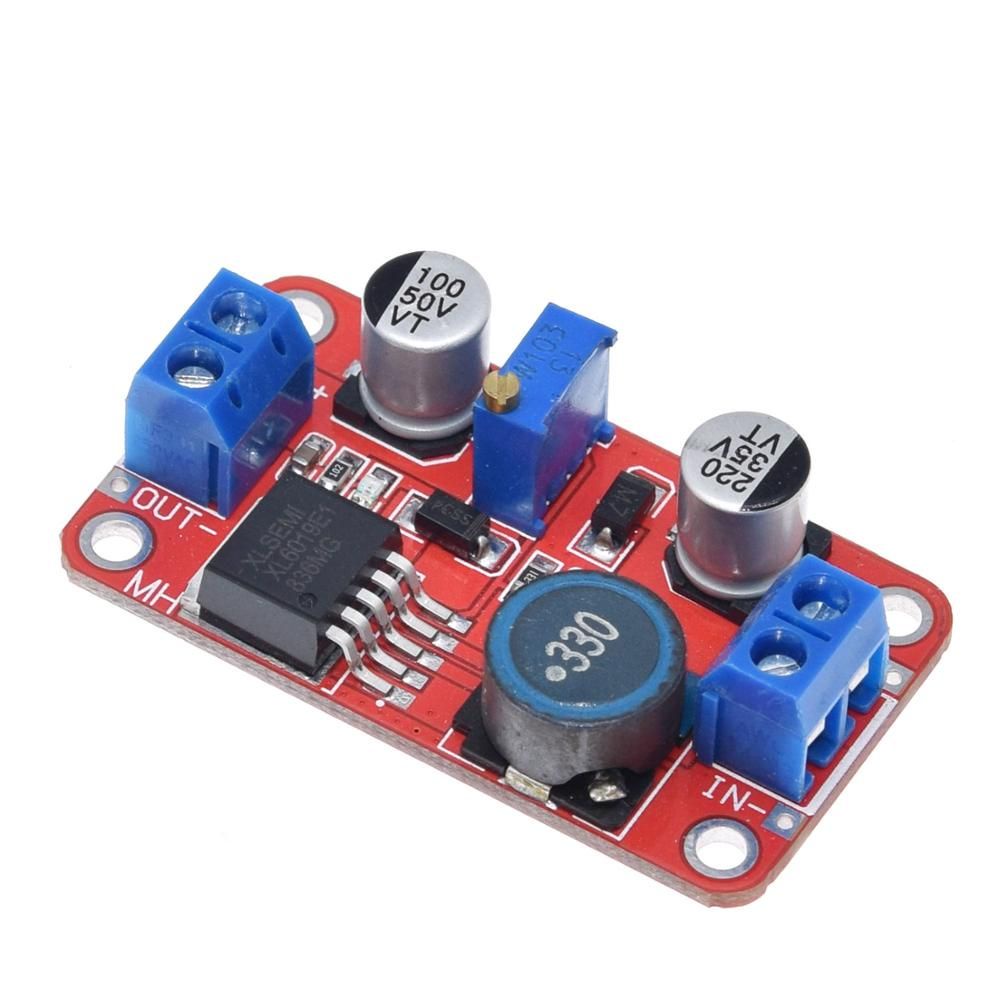

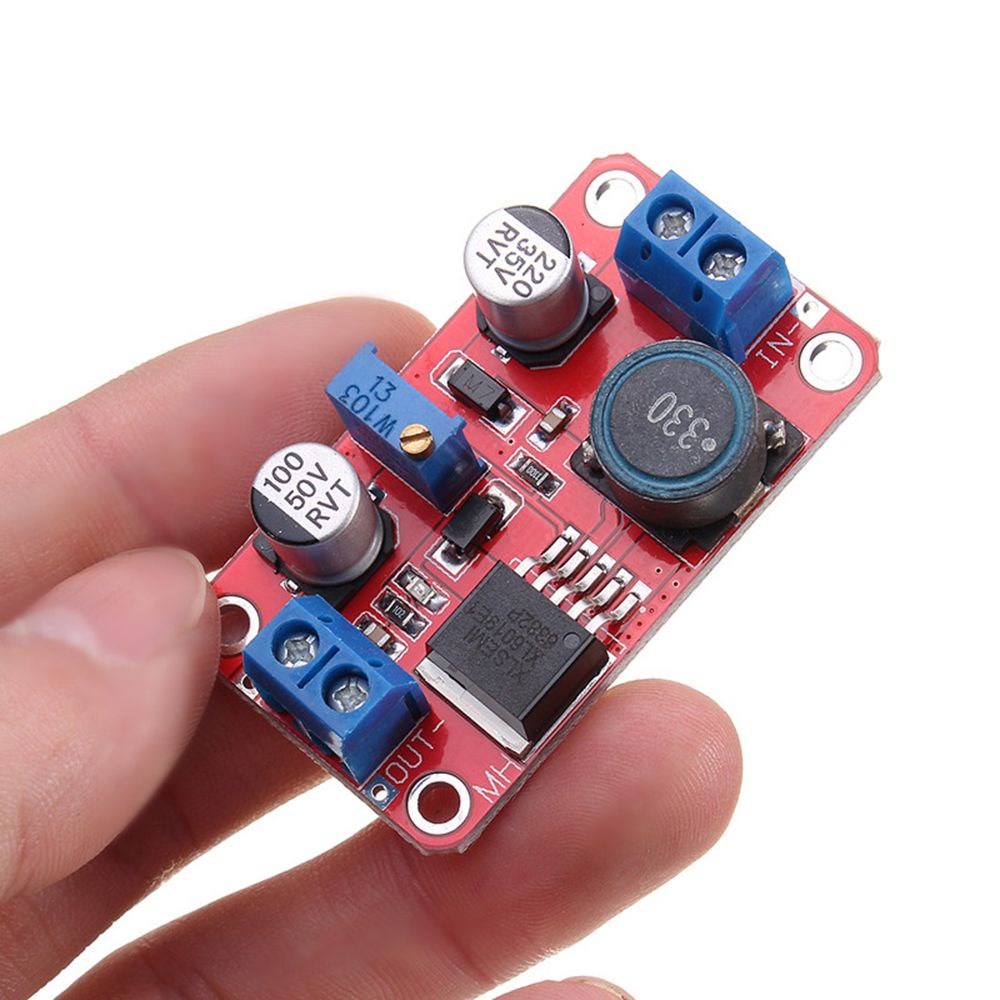

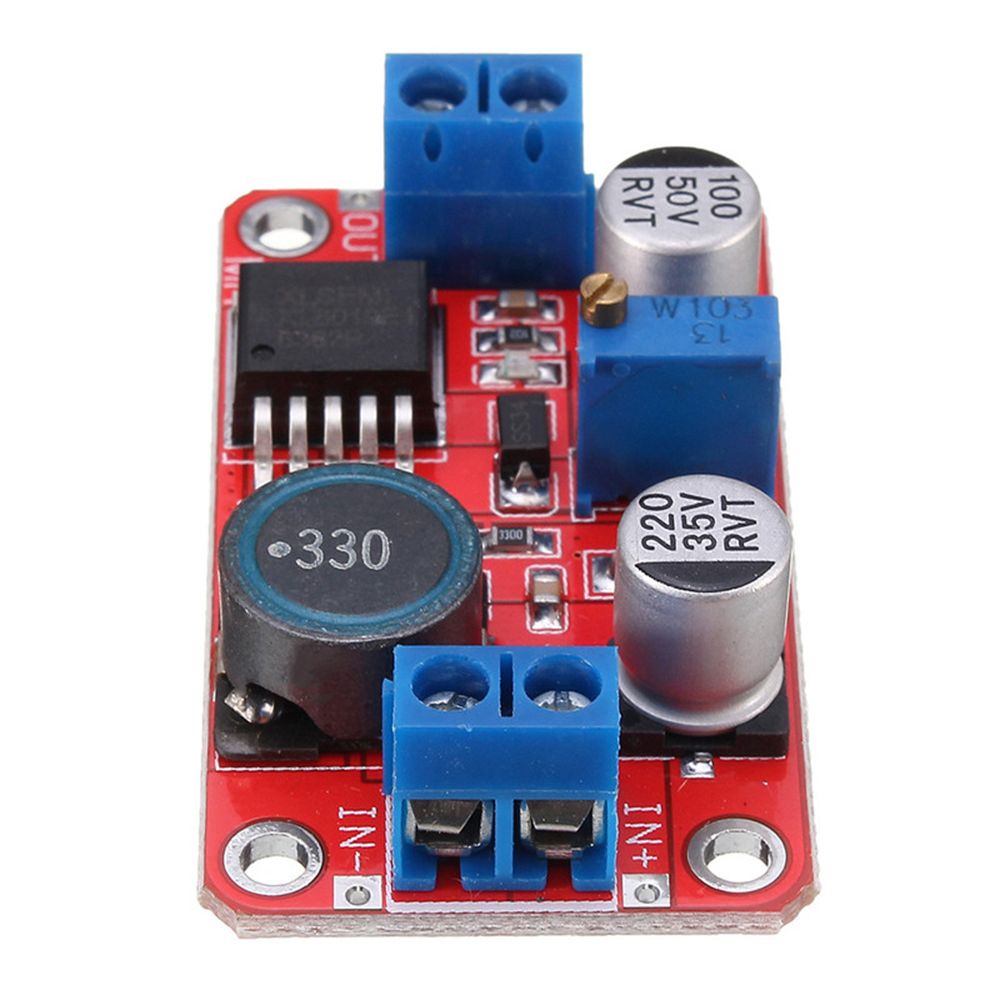

Aaron1 5a Mô Đun Tăng Áp Dc Sang Dc Xl6019 Nhiều Màu Sắc

Input Voltage: DC 3-35 V
Output ripple: 100mv (MAX)
Input Current: 5A (MAX)
Working Temperature: Industrial (-40 ° C to + 85 ° C)
MS + -> Positive; IN ---> Negative;
Voltage regulation: ± 0.5%
Conversion efficiency: 94% (MAX)
Load regulation: ± 0.5%
Switching Frequency: 220 kHZ
OUT + -> Positive; OUT ---> Negative
Package Includes:1 pc XL6019 Boost Module

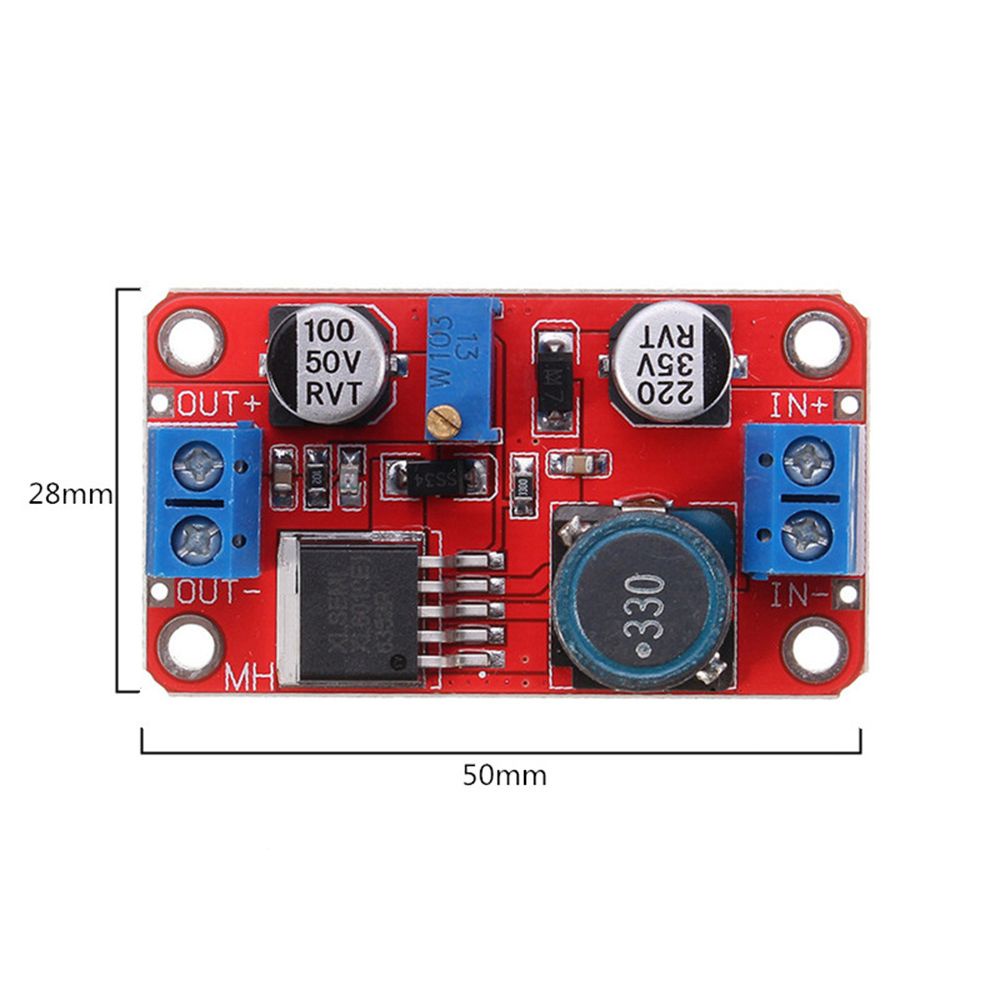

Size: Approx 50 * 28 * 13mm (L * W * H)
Output Voltage: DC 5-40V (Adjustable)
Instructions:
Input and Output must be connected correctly
Conventional Constant Voltage Output BOOST Fully Integrated Solutions, Integrated MOSFET, Fewer External Components, Smaller Cos System
Built-in over temperature protection, full set overcurrent protection circuit reliability, high reliability
TO263-5L standard package, suitable for 30W boost inside applications.
Power (3-35 V), power indicator light, module is working properly.
Adjust the blue knob of the potentiometer (counterclockwise general impulse, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage

NOTE:
Long hours working current is recommended for use at less than 2.5 M, while adding heatsink mass (10 W output above); Because it is boosting the module, in order to ensure stable output, please keep the minimum differential 1.5 V.
