All 10PCS Low Profile RGB Red Switch Cherry MX for LP Thiner for Key Switches DIY Switch Shaft for Gaming Mechanical Key

Giới thiệu All 10PCS Low Profile RGB Red Switch Cherry MX for LP Thiner for Key Switches DIY Switch Shaft for Gaming Mechanical Key

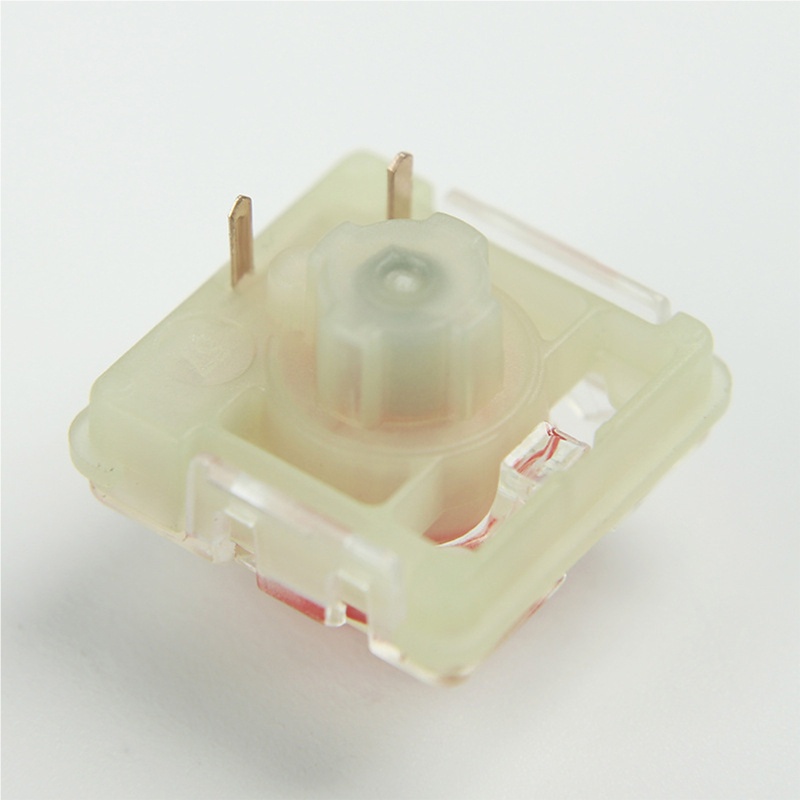

10PCS Low Profile RGB Red Switch Cherry MX for LP Thiner for Key Switches DIY Switch Shaft for Gaming Mechanical Keyboar
Features: brand new and high quality
Cherry-MX Low Profile RGB Red switch: Without pressure point, linear light actuation switching function with a defined force of approx. 45 cN without contact feedback
Designed for use with SMD LEDs (RGB or single colour)
More consistent lighting throughout the keycap due to optimized switch design
Option to use all 16.8 million RGB colours in high luminosity (scope of supply does not include LED)
SMD LEDs directly mounted on the circuit board for cost-efficient, fully automated production
High-precision mechanical switch with very low operating point tolerance
World exclusive Cherry Gold Crosspoint technology
Short bounce for time for high switching frequency (such as for fast typing)
Self-cleaning contacts;Switch resistant to dust and dirt
Over 50 million keystrokes with no loss of quality

Specifications: Technical Data
for Protection class: IP40
Operation characteristics: Low Profile, linear
Switching voltage: 12V AC/for DC max.
Dielectric strength: 500V / 50Hz
Durability: > 50 million actuations
Contact configuration: Single-pole contact
Actuator travel: 3.2 ± 0.25 mm
Pretravel: 1.2 ± 0.3 mm
Initial force: 40 cN min.
Actuation force: 45 ± 15 cN
Bounce time: typically 1 ms
Minimum lead spacing: 16 mm
Size:approx 2x2x1.8cm/0.79x0.79x0.71in
Lighting: SMD LED, mounted directly on the circuit board
Insulation materials: Thermoplastics
Spring: Stainless steel
Contacts: High-quality gold alloy
Storage Temperature: -40°C to 70°C
Operating Temperature: 5°C to 40°C
Humidity: Storage: average <50% max.

Package Includes: 10 PCS x for LP Switches

note: Pls pay attention: Cherry Low Switch only, not including other things
Due to manual measurement, please allow an error of 0-1cm. Please make sure you don’for t mind before bidding.
Due to the difference of different monitors, the picture may not reflect the actual color of the item. Thanks!
