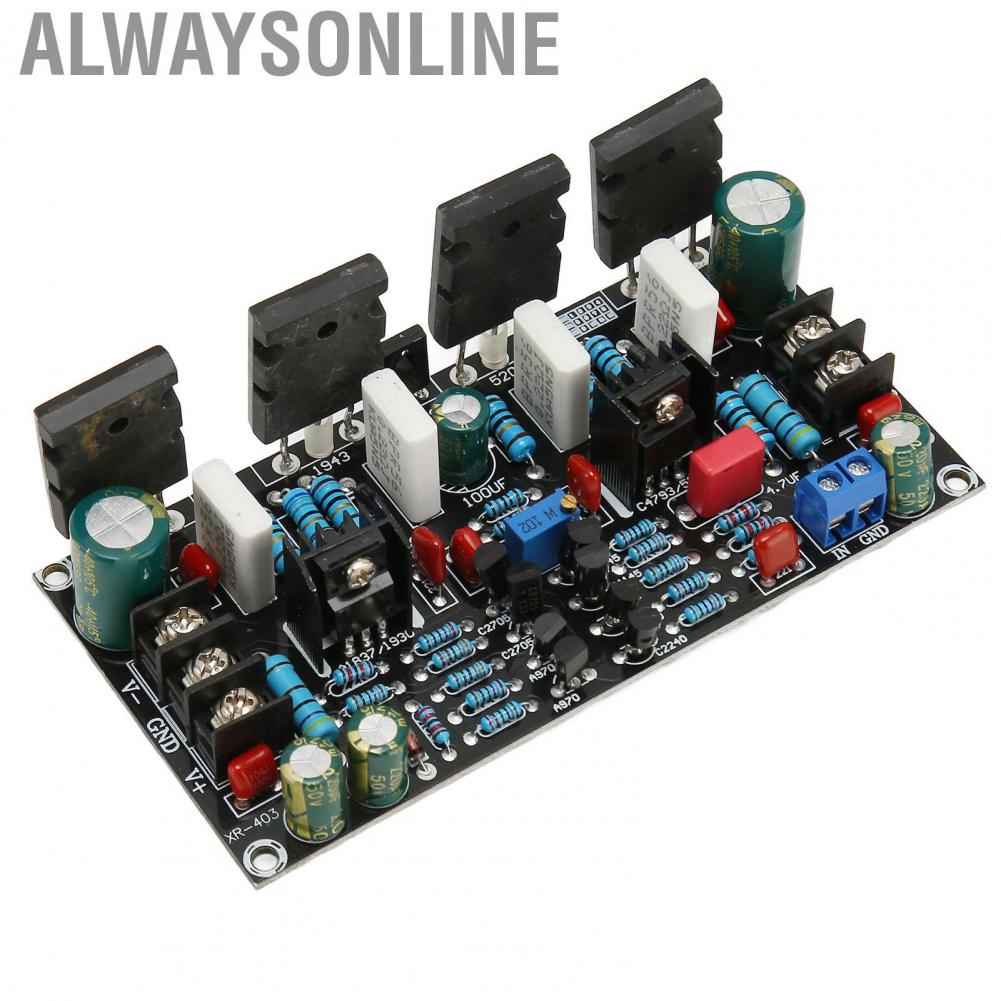

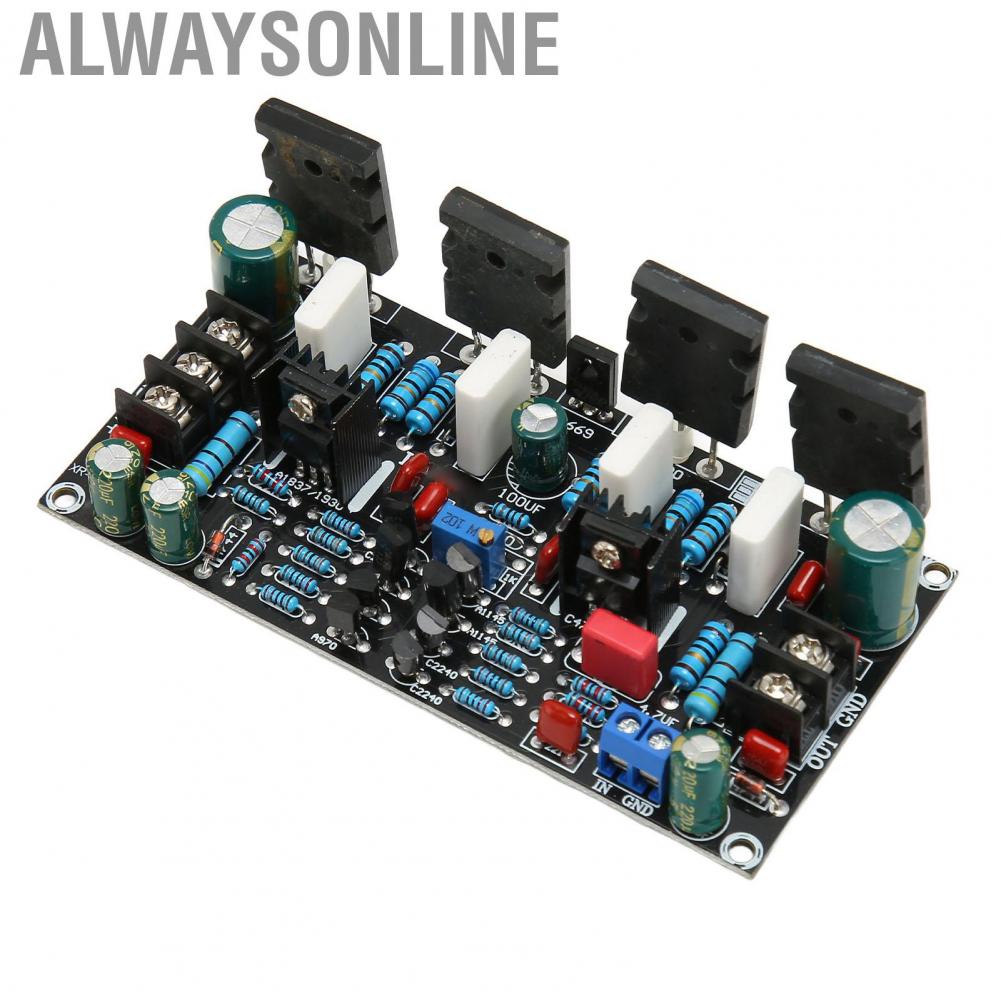

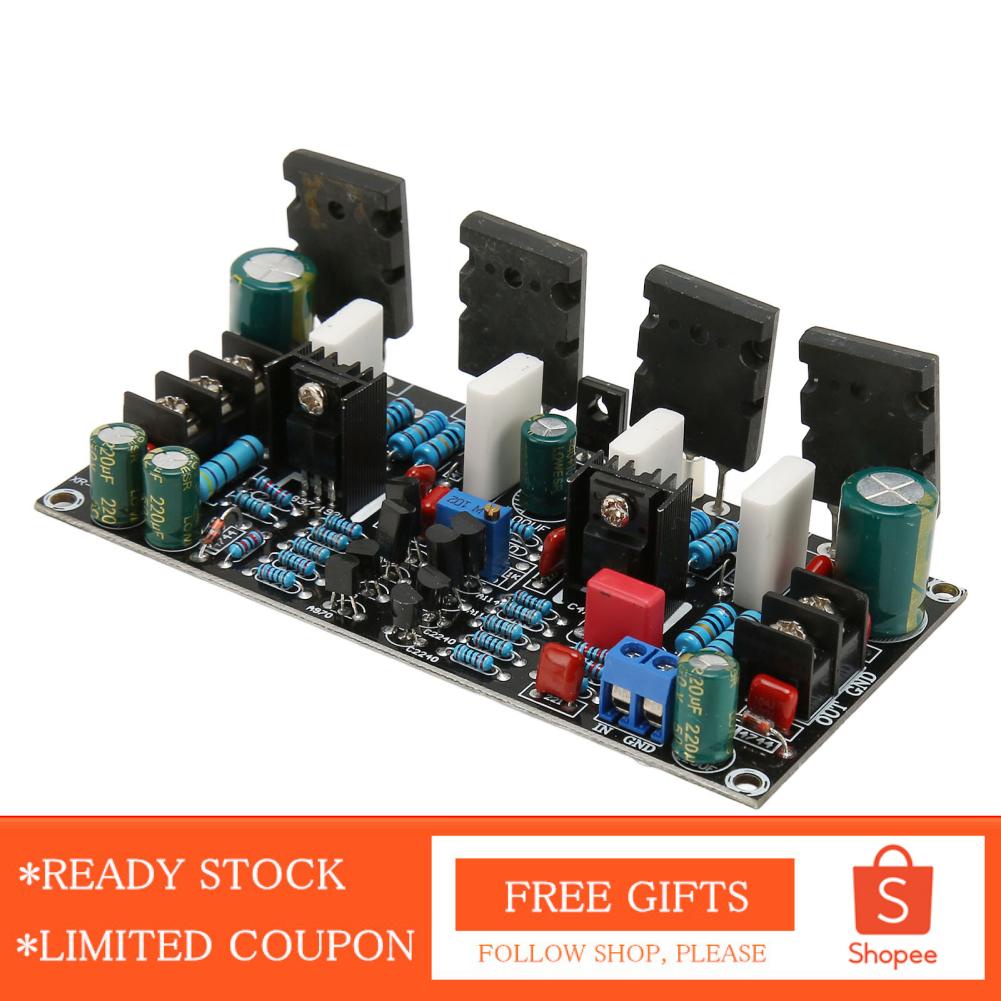

Alwaysonline 200W Digital Power Amplifier Board High A1943 C5200 Mono Amp Module AMP For

Giới thiệu Alwaysonline 200W Digital Power Amplifier Board High A1943 C5200 Mono Amp Module AMP For

___________________❀Alwaysonline❀___________________
Welcome to our store, we insist on the lowest price to sell the best quality items.
✔Ready Stock ✔Wholesale Price ✔Quality Checked

★Surprises for you★
☞Shop Voucher: Get More Discount
☞Follow Shop: Free Gifts
☞“Like” Items: Priority Shipping
( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)

★★Attention Please★★
✌We will be based on your guests in your country to send the corresponding adapter plug.

_______________❀Product Information❀______________


1. MONO: Digital power amp board for mono post amplifier board, if you need dual channel please buy 2 pieces.
2. HIGH POWER: Circuit design using A970 C2240, high voltage sound pair of dual differential circuit and A1145 C2705 for voltage amplification to promote the use of medium power pair of tubes A1837 C4793, the output stage using A1943 C5200 high power for Toshiba pair of tubes.
3. WIDE POWER SUPPLY RANGE: Mono power amplifier board power supply range is wide, DC positive and negative 20‑90V can be, as long as the supply of sufficient power.
4. FOR SPEAKERS: High power amplifier board easily reaches 200W with good sound quality and strong driving force board, pushing 15inch speakers without pressure.
5. ACTUAL POWER: Power amplifier board module without distortion power 200W, maximum power 300W.

Specification:
Item Type: Power Amplifier Board
Material: PCB
Power Supply: Dual Voltage, DC Positive and Negative 20‑90V
Actual Power: No Distortion Power 200W, Maximum Power 300W

Package List:
1 x Power Amplifier Board
