Giới thiệu Alwaysonline Amplifier Board Module Digital Power Mini
___________________❀Alwaysonline❀___________________Welcome to our store, we insist on the lowest price to sell the best quality items.
✔Ready Stock ✔Wholesale Price ✔Quality Checked
★Surprises for you★
☞Shop Voucher: Get More Discount
☞Follow Shop: Free Gifts
☞“Like” Items: Priority Shipping
( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)
★★Attention Please★★
✌We will be based on your guests in your country to send the corresponding adapter plug.
_______________❀Product Information❀______________
Feature:
1. 30Wx2 high‑power stereo power amplifier board, with powerful effect.
2. Using PWM modulation, stereo dual‑channel, clear and smooth sound quality.
3. DIY power amplifier module, strong adaptability, easy to install and assemble.
4. DY-AP3015 digital power amplifier board supports 12V/24V power supply.
5. Support power reverse connection protection, short circuit protection, self-recovery overheating protection.
Specification:
Item Type: Power Amplifier Board
Material: PCB

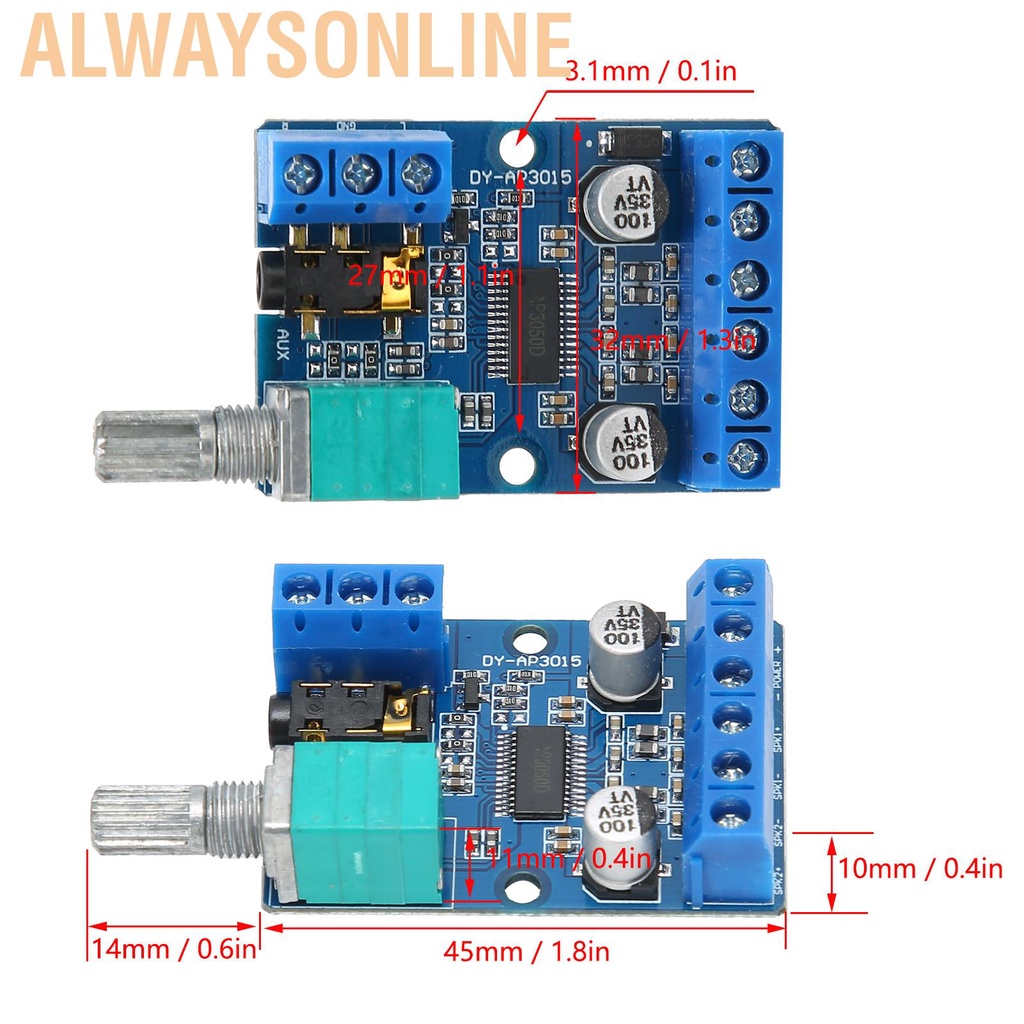

Product Size: Approx. 59x11mm / 2.3x0.4in
Product Name
30W stereo digital power amplifier module
Product Number
DY-AP3015
Operating Voltage
DC: 8-24V
Operating Mode
Class D (PWM modulation)
Number of Channels
Stereo (dual channel)
Output Power (at 1KHz)
18Wx2 at 12V 4Ω
10Wx2 at 12V 8Ω
15Wx2 at 16V 8Ω
20Wx2 at 20V 8Ω
30Wx2 at 24V 8Ω (heat sink required)
Adaptation Speaker (30W-150W)
4Ω (8-12V power supply)
8Ω (8-24V power supply)
Module Protection Mechanism
Power reverse connection protection
Short circuit protection
Self-recovery overheating protection
Package List:
1 x Power Amplifier Board
