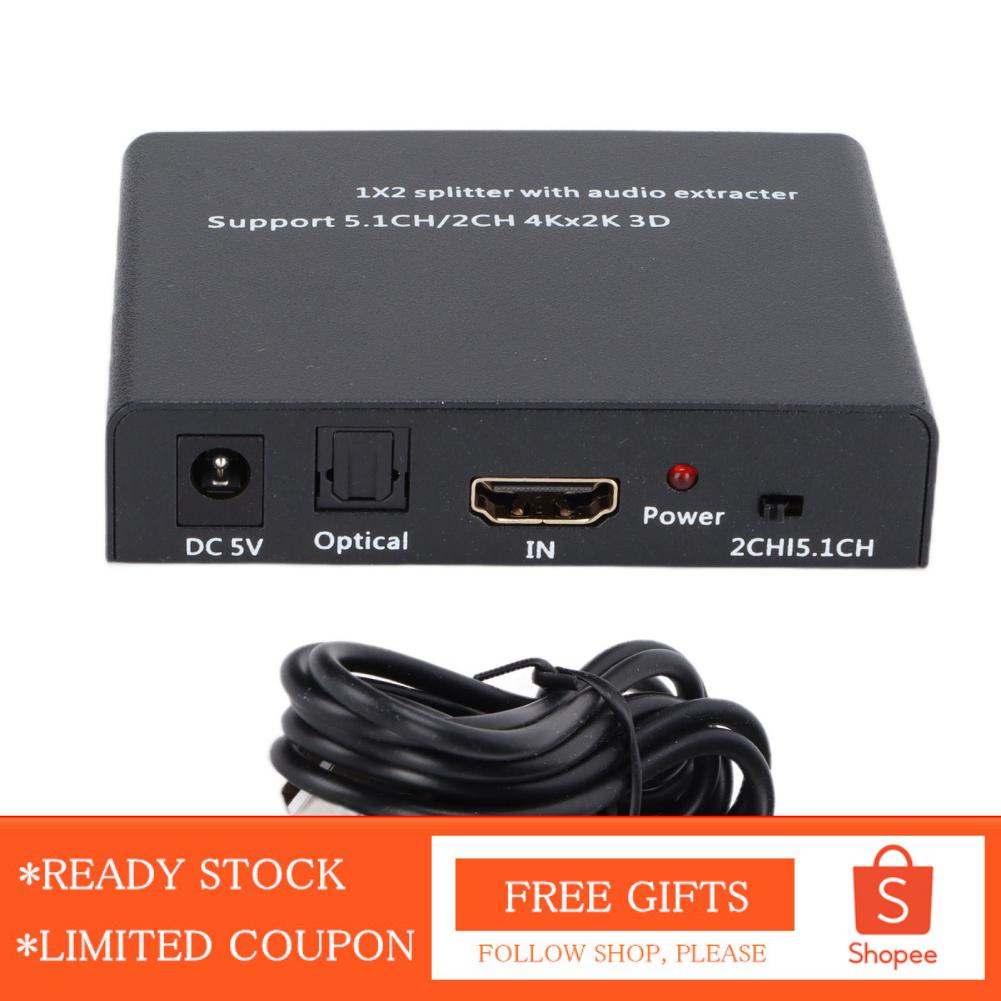

Alwaysonline Converter DAC Black Easy To Install Iron Box 4K HD Multimedia

Giới thiệu Alwaysonline Converter DAC Black Easy To Install Iron Box 4K HD Multimedia

___________________❀Alwaysonline❀___________________
Welcome to our store, we insist on the lowest price to sell the best quality items.
✔Ready Stock ✔Wholesale Price ✔Quality Checked

★Surprises for you★
☞Shop Voucher: Get More Discount
☞Follow Shop: Free Gifts
☞“Like” Items: Priority Shipping
( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)

★★Attention Please★★
✌We will be based on your guests in your country to send the corresponding adapter plug.

_______________❀Product Information❀______________


1. 1 HD Multimedia Interface signal input is allocated to 2 HD Multimedia Interface outputs, and the audio signal is separated synchronously.
2. Support 1 SPDIF optical digital audio output and 1 LR stereo analog audio output.
3. The resolution supports up to 4K/30fs and 3D. No signal loss, simple installation. Using 24bit/192KHz DAC to ensure high quality .
4. SPDIF optical fiber output supports Dolby Digital AC3, DTS, LPOM and other digital audio formats, and supports 5.1CH output.
5. Supports switching between 2 audio EDID reading modes (2CH/5.1CH) to select stereo or 5.1CH audio output.
6. With output status indicator light, when the corresponding output port is in working state, the corresponding indicator light will light up.

Specification:
Item Type: HD Multimedia Interface 1 to 2 Splitter
Material: Iron Box
Colour: Black
Function: 1 to 2 HD Multimedia Interface Video Distribution
HD Multimedia Interface Input and Output Resolution: Up to 4K/30fs
HD Multimedia Interface Supports Video Color Format: 24-bit/dark 30-bit/36-bit
Audio Formats Supported by HD Multimedia Interface: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Spdif Digital Audio Format: Dolby Digital (AC3)/DTS/LPCM
HD Multimedia Interface Maximum Transmission Bandwidth: 300MHz
HD Multimedia Interface Maximum Transmission Speed: 10.2 Gbps
Input and Output Tmds Signal: 0.5 - 1.5Vp-p(TTL)
Input and Output Ddc Signal: 5Vp-p (TTL)
Dac Sampling Frequency: 32~192 KHz
Dac Bit Rate: 16-24 Bits
RCA Analog Output (1KHz at 0db): 1V RMS
Snr at 0dB (CC1R/ARM)：≥90dB
Distortion: ≤0.1%
Frequency Response: 20hz-20khz
HD Multimedia Interface Input Cable Length: ≤7m AWG26 HD Multimedia Interface Standard Cable
HD Multimedia Interface Output Cable Length: ≤8m AWG26 HD Multimedia Interface Standard Cable

How to Use:
Plug and play.

Package List:
1 x Splitter

1 x Power Cable
1 x Manual
