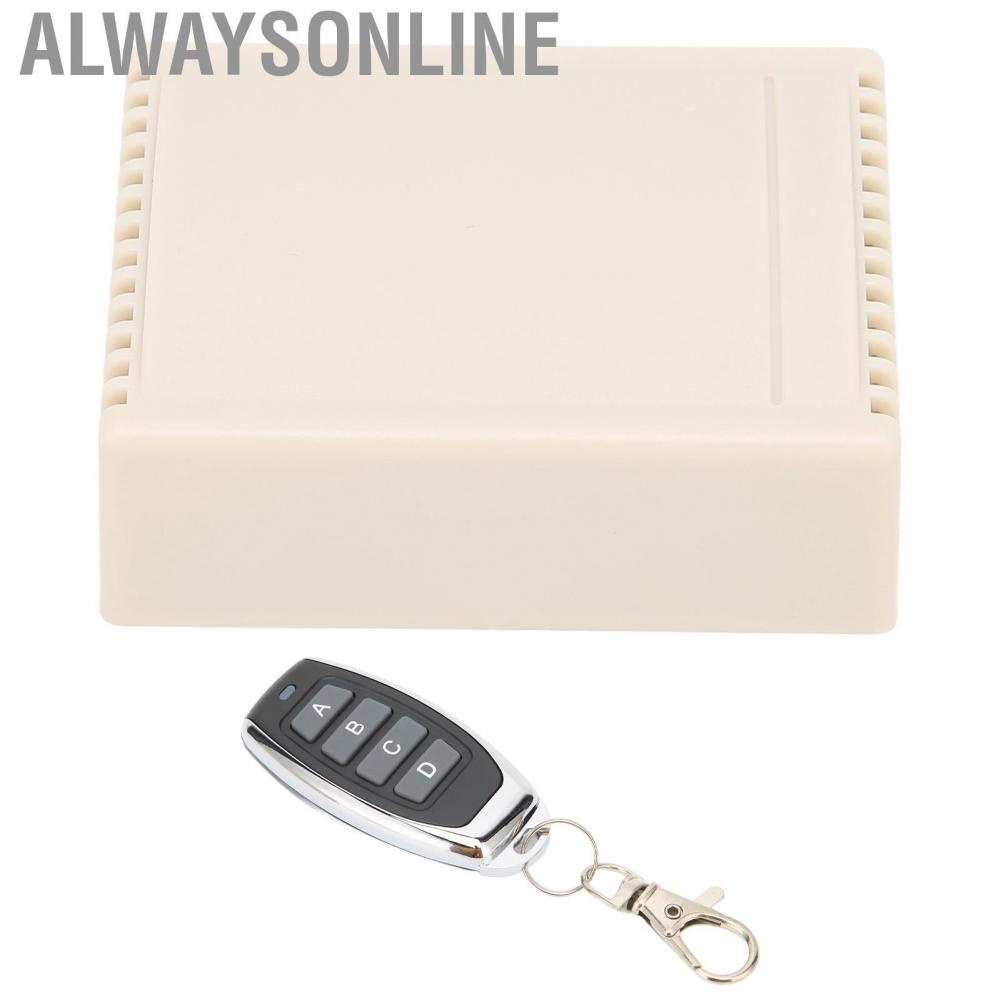

Alwaysonline Relay Switch 10A RF for Industrial Control

Giới thiệu Alwaysonline Relay Switch 10A RF for Industrial Control

___________________❀Alwaysonline❀___________________
Welcome to our store, we insist on the lowest price to sell the best quality items.
✔Ready Stock ✔Wholesale Price ✔Quality Checked

★Surprises for you★
☞Shop Voucher: Get More Discount
☞Follow Shop: Free Gifts
☞“Like” Items: Priority Shipping
( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)

★★Attention Please★★
✌We will be based on your guests in your country to send the corresponding adapter plug.

_______________❀Product Information❀______________


1. Multiple Modes: Self lock, interlock and point user free adjustment, can realize one control and many control one. It can meet the requirements of various special control procedures.
2. Maxmium 10A Current: Receiving can withstand 10A current per circuit, can directly drive DC and AC load, each relay has a set of normally open (normally closed) contacts.
3. Widely Used: The RF is suitable for burglar alarm, electric doors and windows, signal control, industrial control, lifting equipment and other electrical control circuit.
4. Simple Operation and Professional Manufacture: It is remotely controlled, RF is easy to install and use. Produced to meet or exceed standard specification, strictly follow factory quality control.
5. Stable Performance and Material: Small size, high receiving sensitivity, used with the to form a complete intelligent system. Made of ABS and PCB material, sturdy and durable.

Specification:
Item Type:  RF
Material: ABS+PCB
Frequency: 433 Mhz
Reception Sensitivity: -105dB
Parameters:
Launch Range: 20-50m/65.6-164.0ft
Built-in : 2 x CR2016 (75mah)

How to Use:
Change the working mode through the jumper on the pin
1. Instantaneous: The jumper is not connected to any two pins.
Relay: press ‑> open; Release ‑> Close.
2. Switch: Connect the jumper to pin "3" and pin "4".
Relay: press ‑> open; Press the same button again ‑> Close ·
3. Lock: jumper connection pin "1" and pin "2".
Relay: press ‑> open; Press other buttons ‑> Close.
4.2CH Instantaneous +2CH lock: Jumper on "1 and 2" + jumper on "3 and 4"
Instantaneous ‑‑‑‑‑‑ press transmitter button A, receiver relay A connected; Release button A, receiver relay A disconnects, same as B/C/D
Switch ‑‑‑‑‑ press transmitter button A once, receiver relay A is connected; Press button A again, receiver relay A disconnects, same as B/C/D

Package List:
1 x Relay Switch
1 x  1 x Description
