Giới thiệu Alwaysonline Stereo Amplifier Module High Power Board Safety PWM Modulation for Audio

___________________❀Alwaysonline❀___________________
Welcome to our store, we insist on the lowest price to sell the best quality items.
✔Ready Stock ✔Wholesale Price ✔Quality Checked

★Surprises for you★
☞Shop Voucher: Get More Discount
☞Follow Shop: Free Gifts
☞“Like” Items: Priority Shipping
( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)

★★Attention Please★★
✌We will be based on your guests in your country to send the corresponding adapter plug.

_______________❀Product Information❀______________

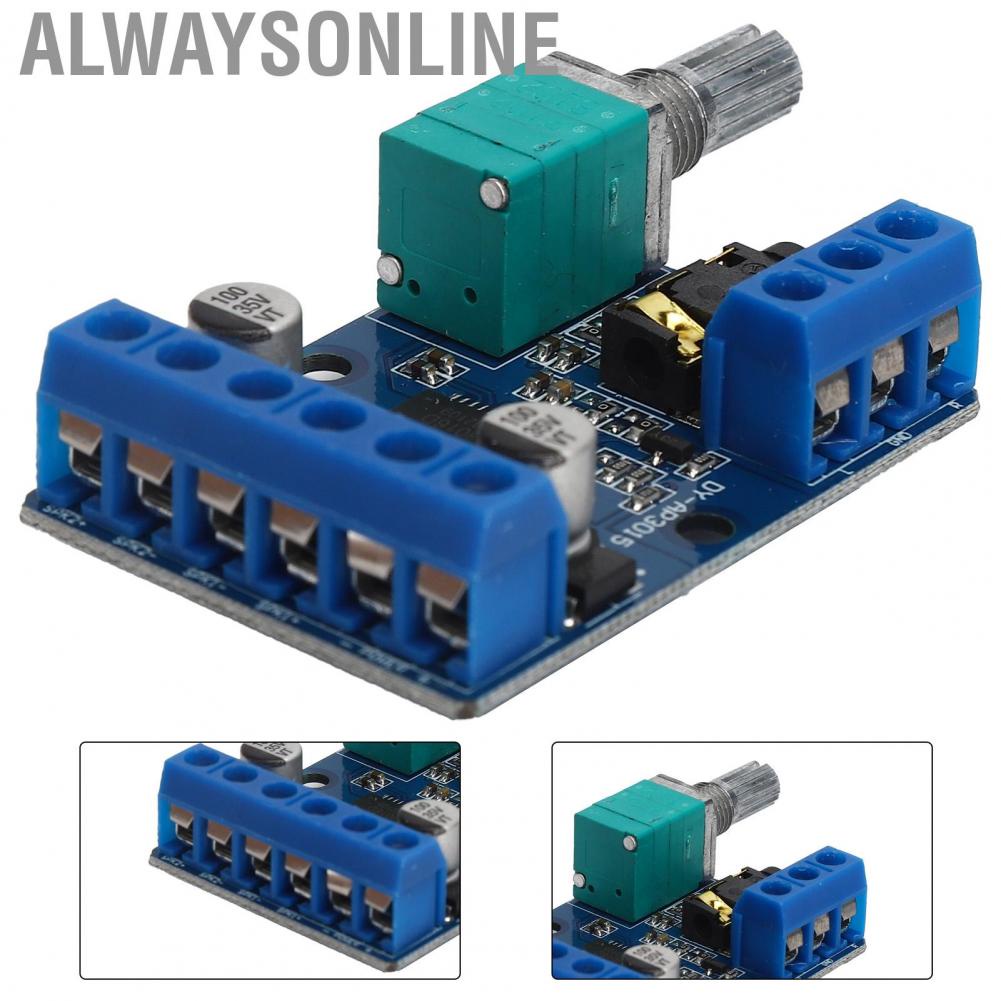

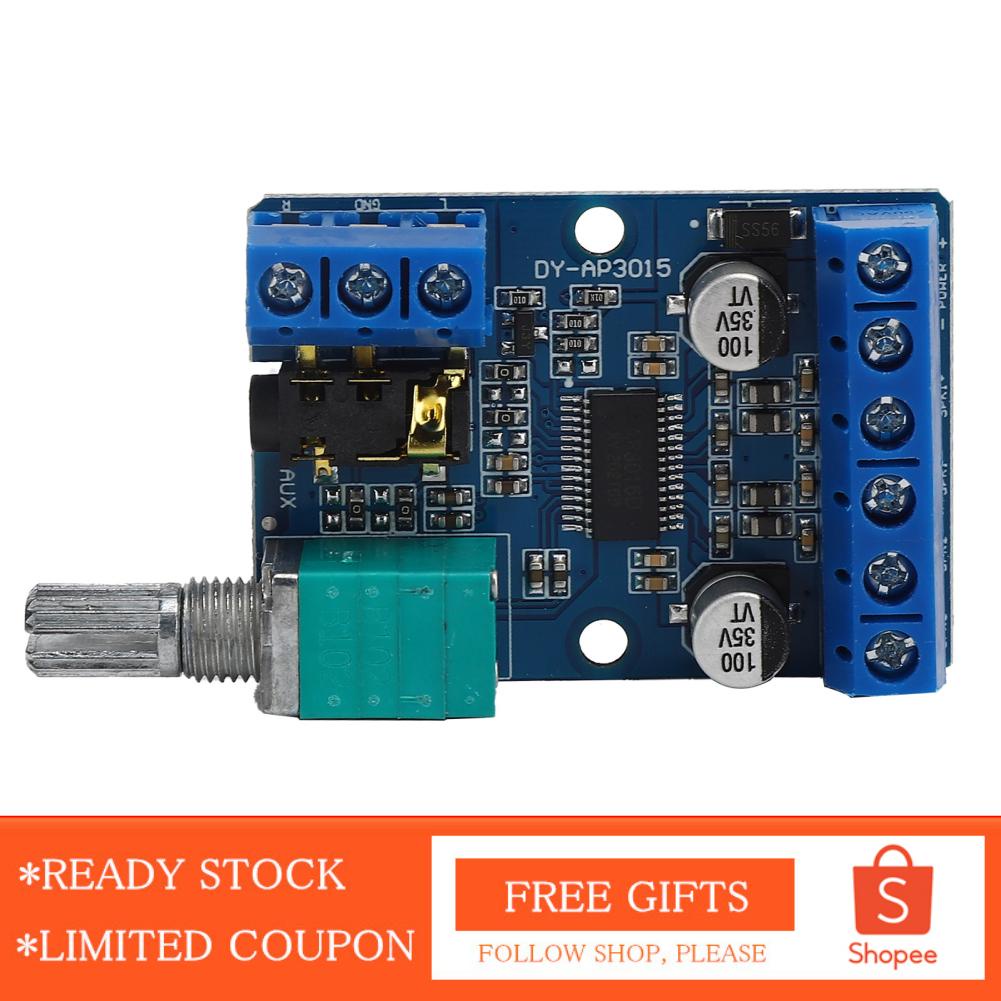

1. Stereo digital power amplifier module, dual‑channel, excellent quality.
2. 30Wx2 high power, using D‑type PWM modulation, stable and reliable.
3. DY‑AP3015 digital power amplifier board supports 12V/24V power supply.
4. Easy to assemble and connect, suitable for DIY amplifier enthusiasts.
5. With power reverse connection protection, short circuit protection, self‑recovery overheating protection.

Specification:
Item Type: Power Amplifier Board
Material: PCB
Product Name 30W stereo digital power amplifier module
Product Number DY-AP3015
Operating Voltage DC: 8-24V
Operating Mode Class D (PWM modulation)
Number of Channels Stereo (dual channel)
Output Power (at 1KHz) 18Wx2 at 12V 4Ω
10Wx2 at 12V 8Ω
15Wx2 at 16V 8Ω
20Wx2 at 20V 8Ω
30Wx2 at 24V 8Ω (heat sink required)
Adaptation Speaker (30W-150W) 4Ω (8-12V power supply)
8Ω (8-24V power supply)
Module Protection Mechanism Power reverse connection protection
Short circuit protection
Self-recovery overheating protection

Package List:
1 x Power Amplifier Board
