Giới thiệu Alwaysonline Switch DC12V 4 Way Copy with Relay Receivers for Window Control System
___________________❀Alwaysonline❀___________________Welcome to our store, we insist on the lowest price to sell the best quality items.
✔Ready Stock ✔Wholesale Price ✔Quality Checked
★Surprises for you★
☞Shop Voucher: Get More Discount
☞Follow Shop: Free Gifts
☞“Like” Items: Priority Shipping
( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)
★★Attention Please★★
✌We will be based on your guests in your country to send the corresponding adapter plug.
_______________❀Product Information❀______________

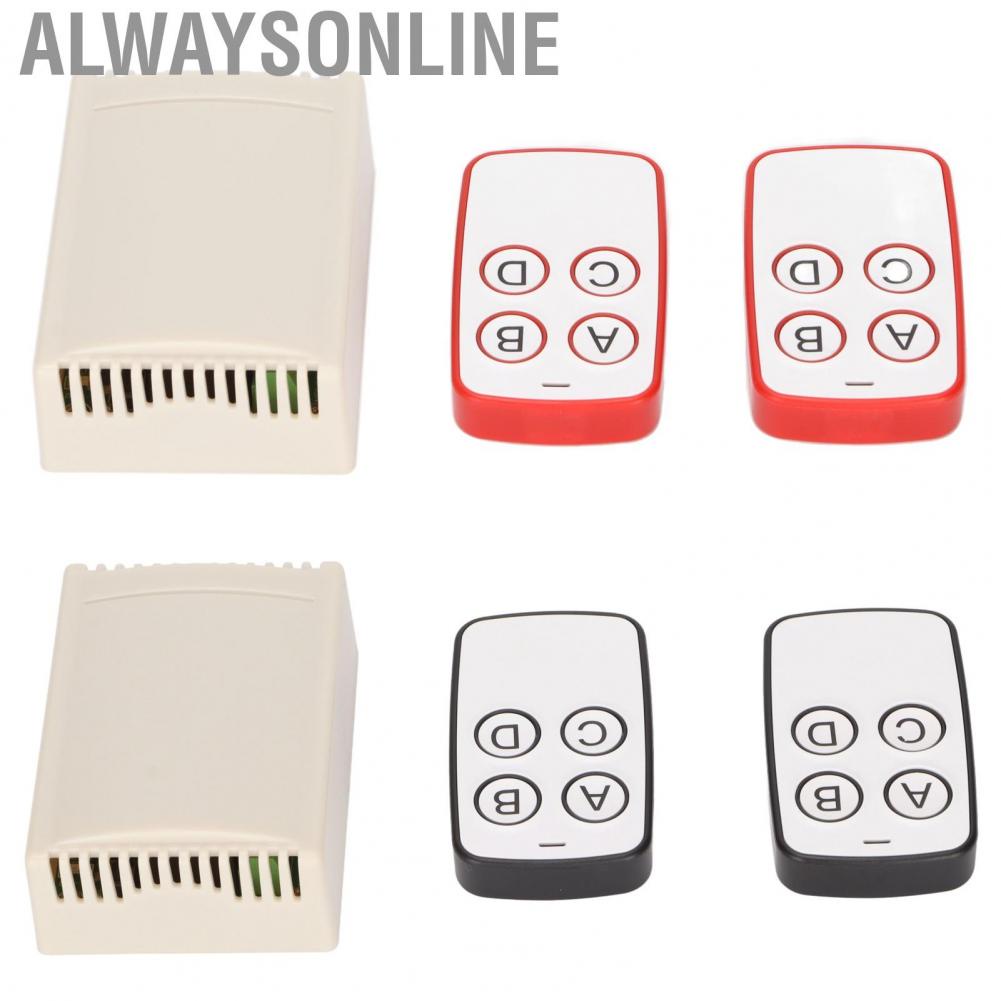

1. Four Way Intelligent Receiving Controller: With 4 relays, it can meet the requirements of various special control procedures.
2. Application: It can enable the equipment to be controlled to achieve the forward and reverse of the , or the on and off conversion of the switch.
3. Stable Performance: Small size, high receiving sensitivity, used with the to form a complete intelligent system.
4. of Application: Mainly used in electric doors, windows, lifting equipment, lifters and security industries and other fields.
5. Widely Used: It is suitable for imported wired door and window control system and theft alarm to realize the system switch from wired to .
Specification:
Item Type:
Material: ABS
Working Voltage: DC12V
Static Working Current: ≤6mA
Working Temperature: -40℃+80℃
Receiving Sensitivity: ≥-105dBm
Working Frequency: 433MHz
Output Current: ≤10A
Built In in the : CR2016(75mAh) x 4
How to Use:
Output method
A. Self‑locking‑connect the 2\3 position with a short circuit
B. Non‑locking‑short‑circuit, vacant and unconnected
C. Interlock‑connect the 1\2 position with a short circuit
Learning/clearing methods and steps
1. Press the learning button once, the indicator light is off, let go, press any button on the control, the indicator light flashes three times and then stays on, indicating successful learning;
2. It can learn more than 20 2262 chips with different address codes, and 1527 chips are equivalent to the frequency control;
3. Clear: Long press the learning button for about 8 seconds, the indicator light will turn from off to steady on, indicating that all the stored information has been successfully cleared.
Package List:
2 x
1 x Receiver
2 x Lanyard
1 x Manual
