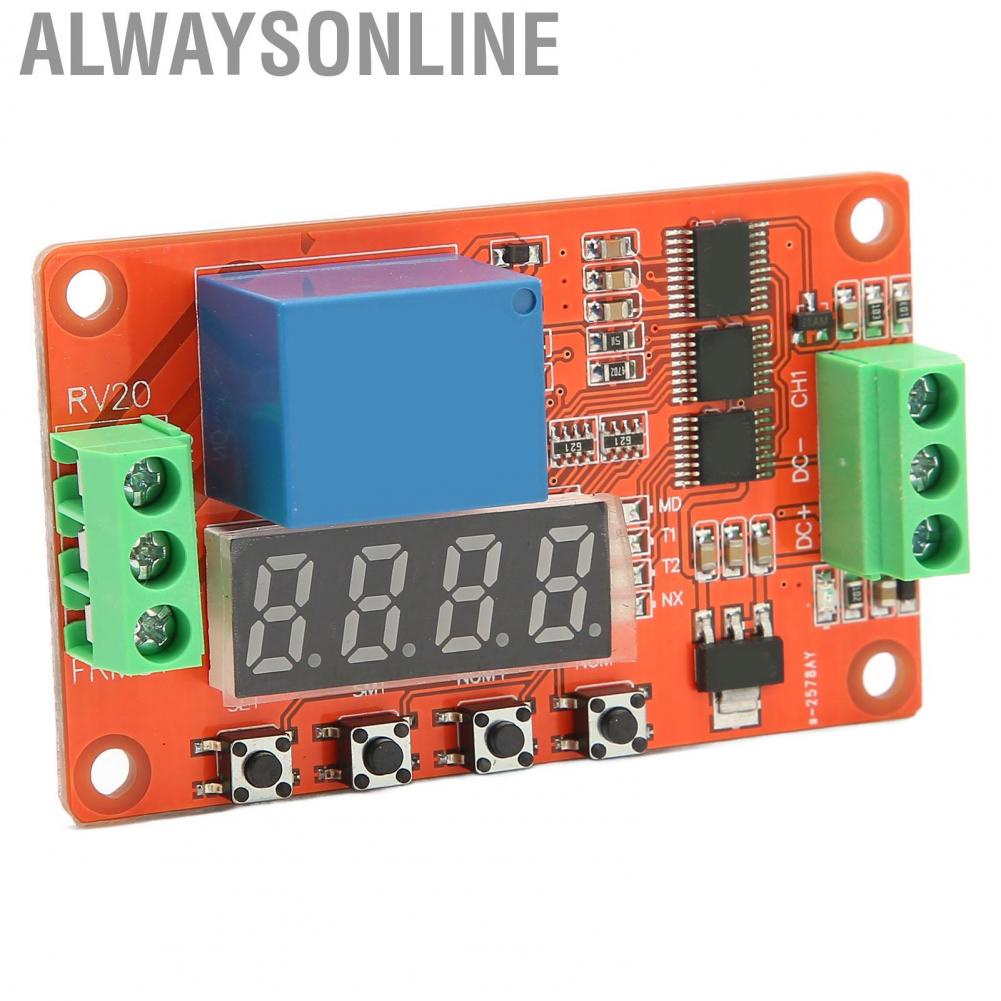

Alwaysonline Timer Relay Time Delay Module High Withstand Voltage for Automatic Control

Giới thiệu Alwaysonline Timer Relay Time Delay Module High Withstand Voltage for Automatic Control

___________________❀Alwaysonline❀___________________
Welcome to our store, we insist on the lowest price to sell the best quality items.
✔Ready Stock ✔Wholesale Price ✔Quality Checked

★Surprises for you★
☞Shop Voucher: Get More Discount
☞Follow Shop: Free Gifts
☞“Like” Items: Priority Shipping
( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)

★★Attention Please★★
✌We will be based on your guests in your country to send the corresponding adapter plug.

_______________❀Product Information❀______________


1. 18 Kinds Of Functions: Newly upgraded to version 2.0, the module functions have been increased from the previous 8 to 18 to meet more application needs.
2. Power Supply Reverse Connection: Increase the power supply reverse connection function, so that the module will not be damaged due to wrong power connection.
3. High Withstand Voltage: The high withstand voltage power supply module is used to replace the previous discrete power supply, and the system is more stable and reliable.
4. 0.1s Timing Function: Added 0.1 second timing function, and the timing accuracy has been upgraded from 0.1 second to 0.01 second.
5. Automatic Power Saving: Add automatic power saving function, users can set it by themselves.

Specification:
Item Type: Time Delay Relay Module
Product Material: PCB
Module Console: 3 Wire Interface, All Interfaces Have Terminals
DC+: Positive Pole Of DC Power Supply
DC-: Negative Pole Of DC Power Supply
CH1: Input Detection Interface, Active High
Relay Output: 3 Wire Interface, All Interfaces Have Terminal Blocks
NO: Relay Normally Open Interface, The Relay Is Suspended Before Closing, And Short Circuited With COM1 After Closing
COM: Relay Common Interface
NC: Relay Normally Closed Interface, Short Circuit With COM1 Before The Relay Picks Up, And Hangs After Picking Up

Package List:
1 x Control Module

Note:
The user can select one of the following 18 functions through the keys and display, and can set and save the function parameters, as well as view the parameters of the current function. Instructions for setting operations can be obtained from the seller. Tips: Functions 1‑8 will start automatically when powered on, and functions 9‑18 require a high level pulse signal (the high level duration is not less than 20ms, the same below) to trigger the start.
