Giới thiệu Ăng ten 915MHz UWB 10DB cao cấp

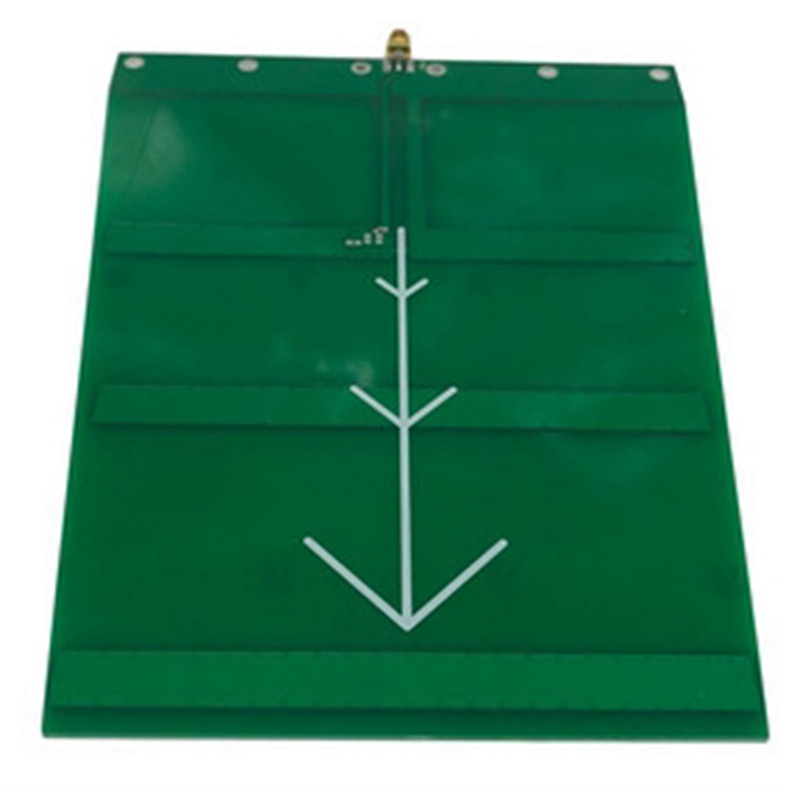

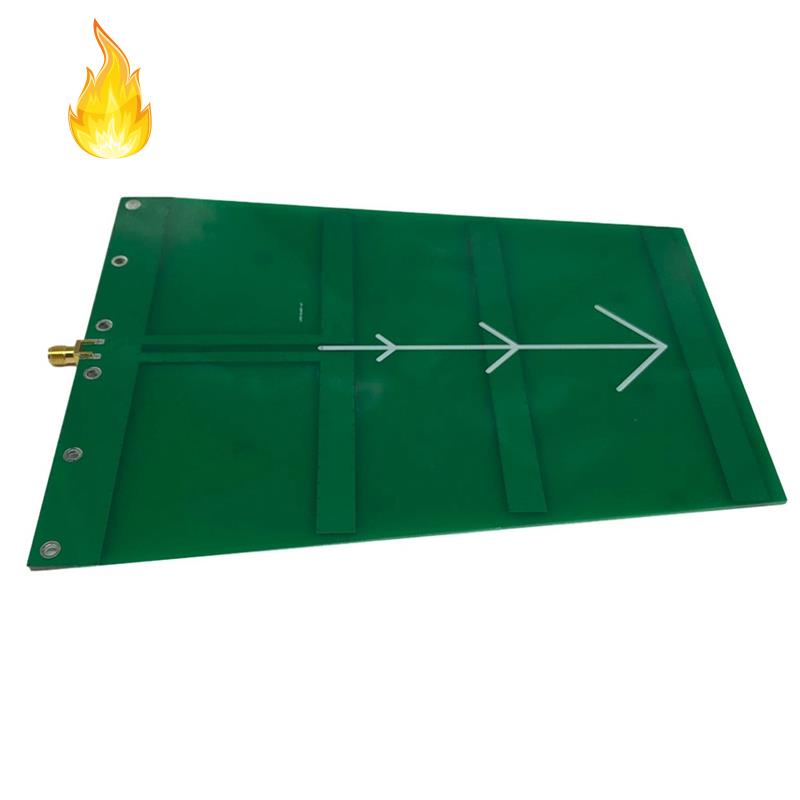

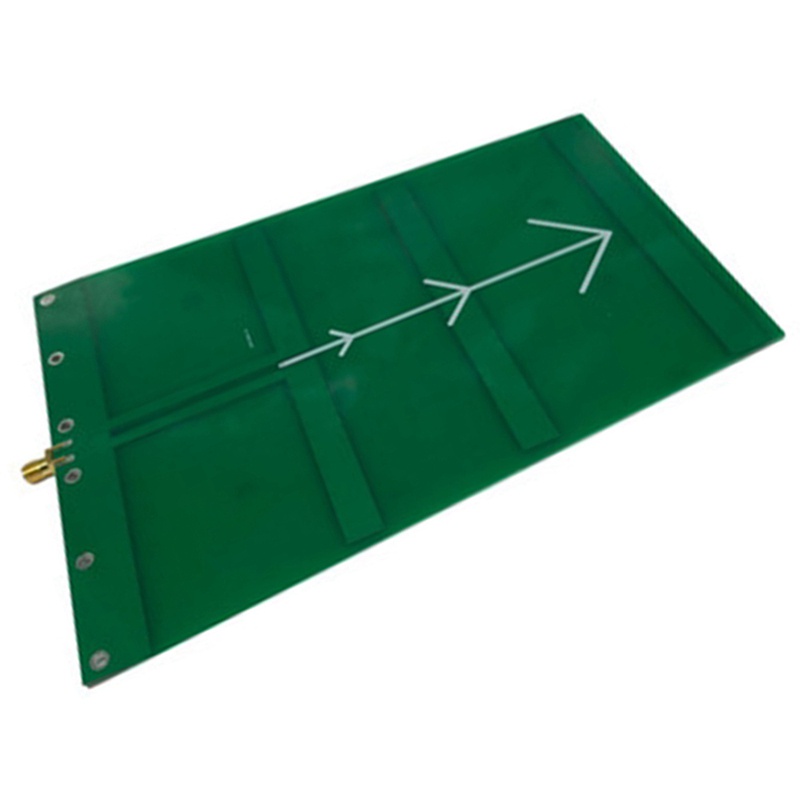

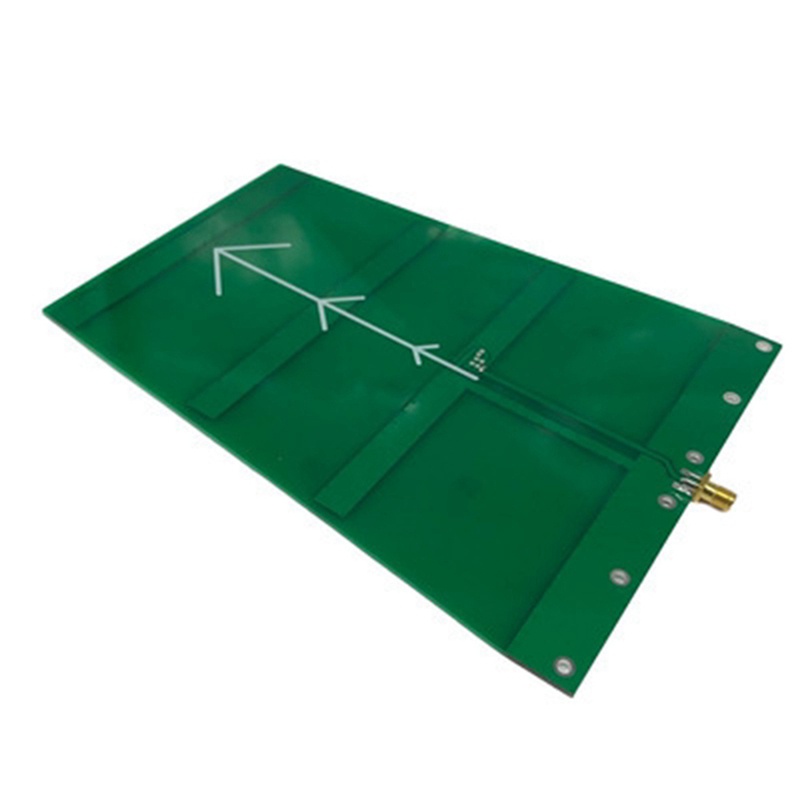

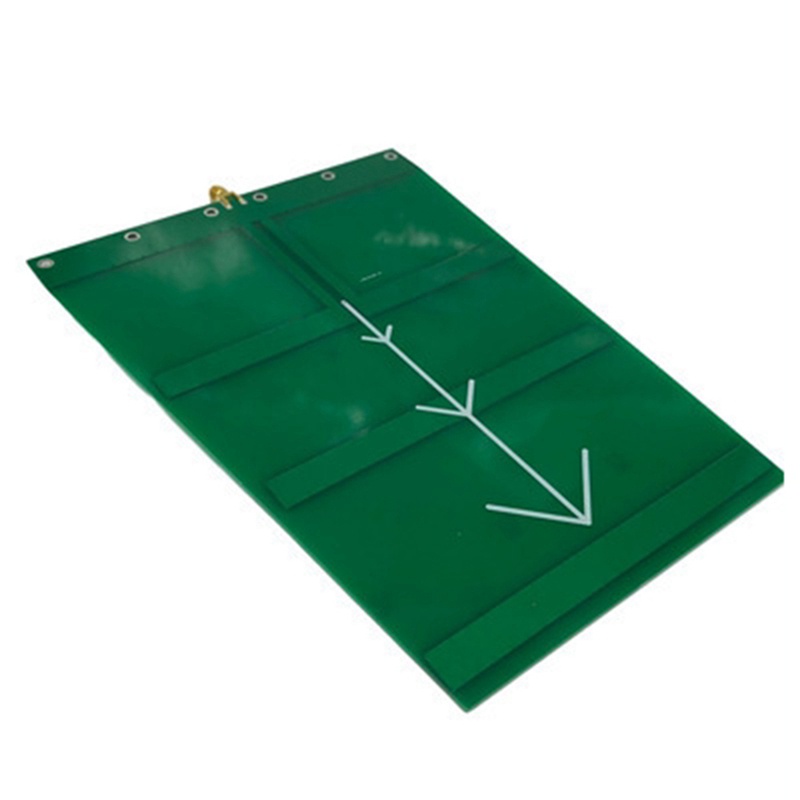

The high gain directional wideband antenna is suitable for directional radio signal transmission and reception, signal source reconnaissance and direction finding, broadband signal testing and the like.Oneepiece molding without burrs, smooth surface, simple and convenient installation.
Have high receiving frequency, increase the use range, with high work efficiency and strong practicability.
With stable performance and high reliability, mainly used for ultraawideband positioning and communication.
Small in size and light in weight, convenient to carry and use at any time, very convenient and practical.
1) Frequency range: 915+-30MHz
2) Dimensions: 20 x 15cm (excluding connectors)
3) Polarization method: linear polarization
4) Rated gain: 9.5dBi
5) Return loss: 10dB
6) Voltage standing wave: less than 2.0
7) Power capacity: 30W
8) Interface form: SMA female (outer screw and inner hole)
name:Antenna
colour:Green
Material:PCB
Package Contents:
1 x AntennaOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
