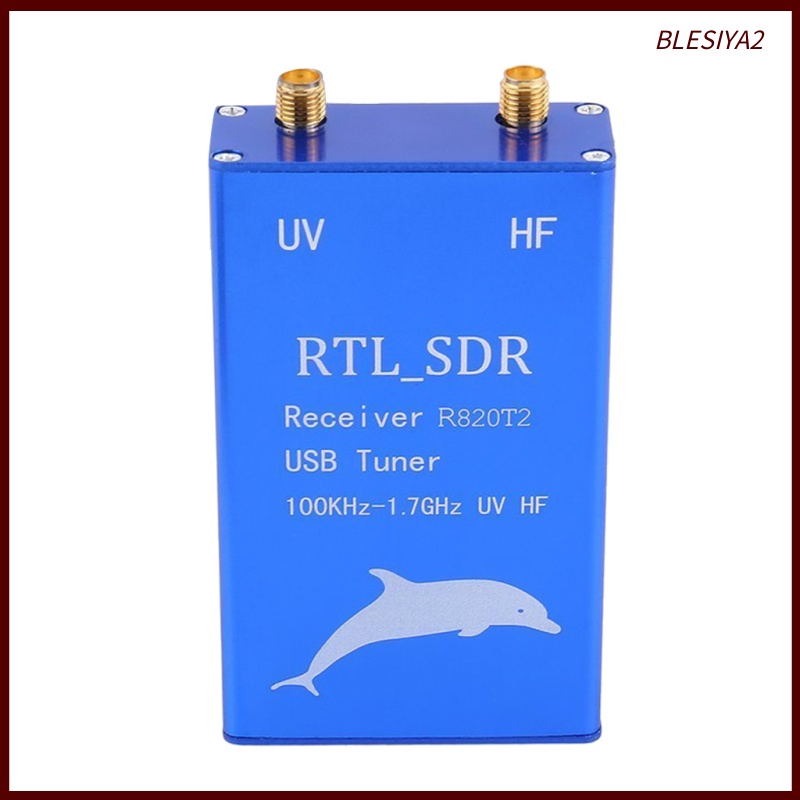

Ăng Ten Thu Sóng Cổng USB RTL2832U + R820T2 0.1MHz-1.7GHz UHF VHF HF RTL-SDR

Giới thiệu Ăng Ten Thu Sóng Cổng USB RTL2832U + R820T2 0.1MHz-1.7GHz UHF VHF HF RTL-SDR

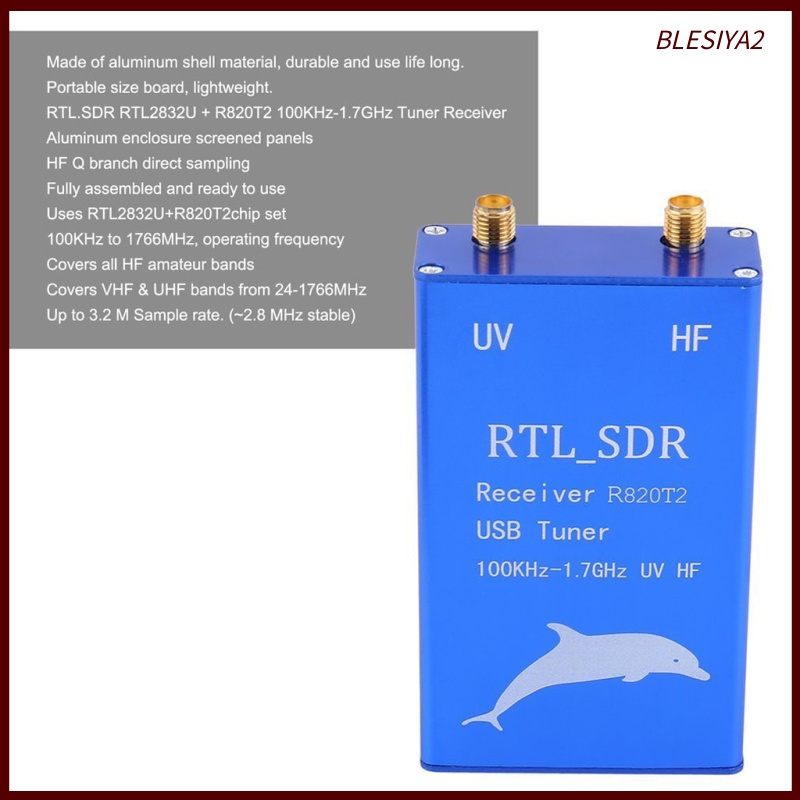

Description:

Uses RTL2832U+R820T2 chip set.
100KHz to 1766MHz, operating frequency
Covers all HF amateur bands
1 PPM temperature compensated oscillator (TCXO)
Covers VHF & UHF bands from 24-1766MHz
Up to 3.2 M Sample rate. (~2.8 MHz stable)
Receiver modes AM, NFM, FM, DSB, USB, LSB and CW
HF Shortwave Q branch direct sampling
8-bit ADC giving ~50 dB dynamic range
50 Ohm input impedanceAluminum enclosure screened panels
Independent antenna inputs for Shortwave and VHF

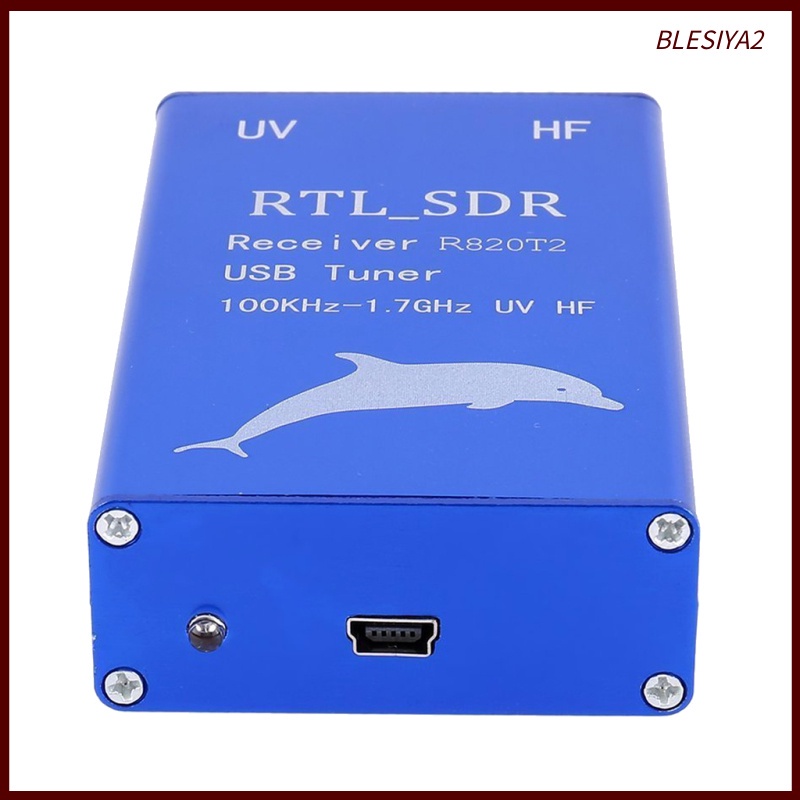

USB computer connection ( mini usb) Powered by common USB


Specification:

Material: PCB Board
Color: As Pictures Shown

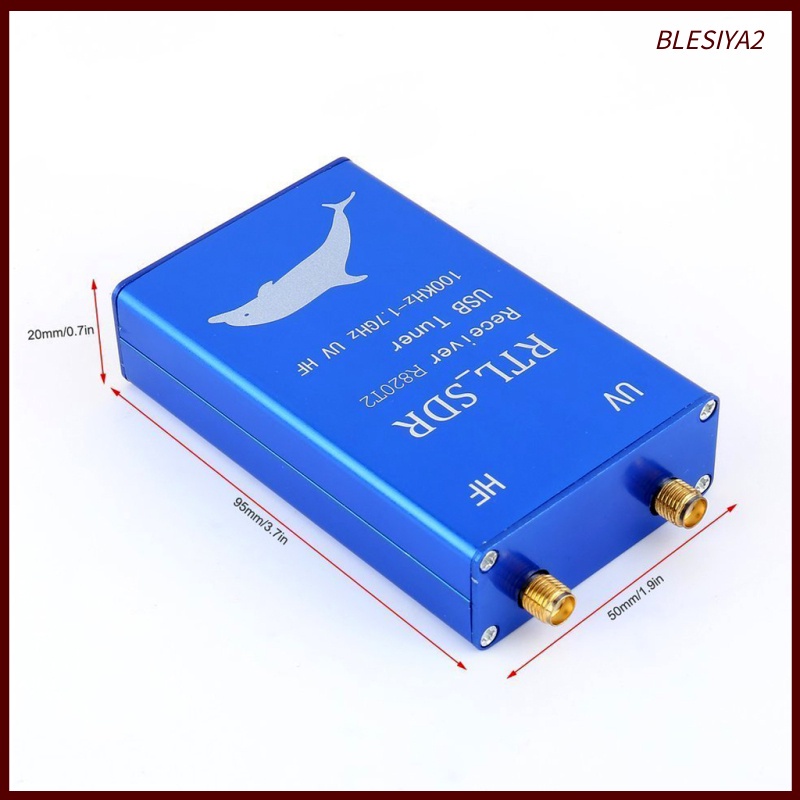

Borad Size: Approx. 20x 50mm/ 0.79x 1.97inch

USB Cable Length: Approx. 80cm/ 31.50inch
Antenna Length: Approx. 1.5m/ 4.92ft

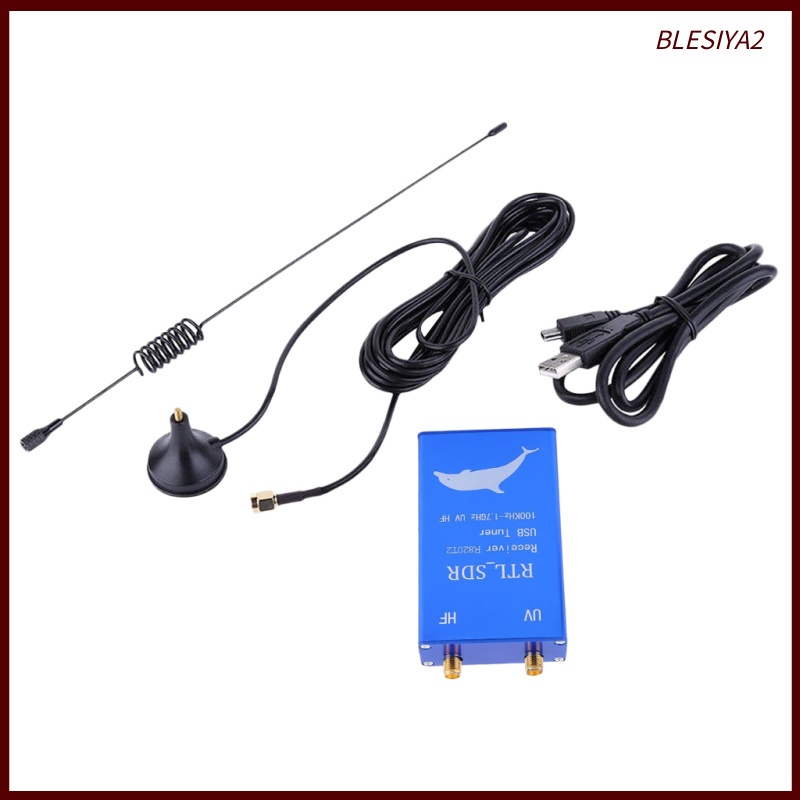

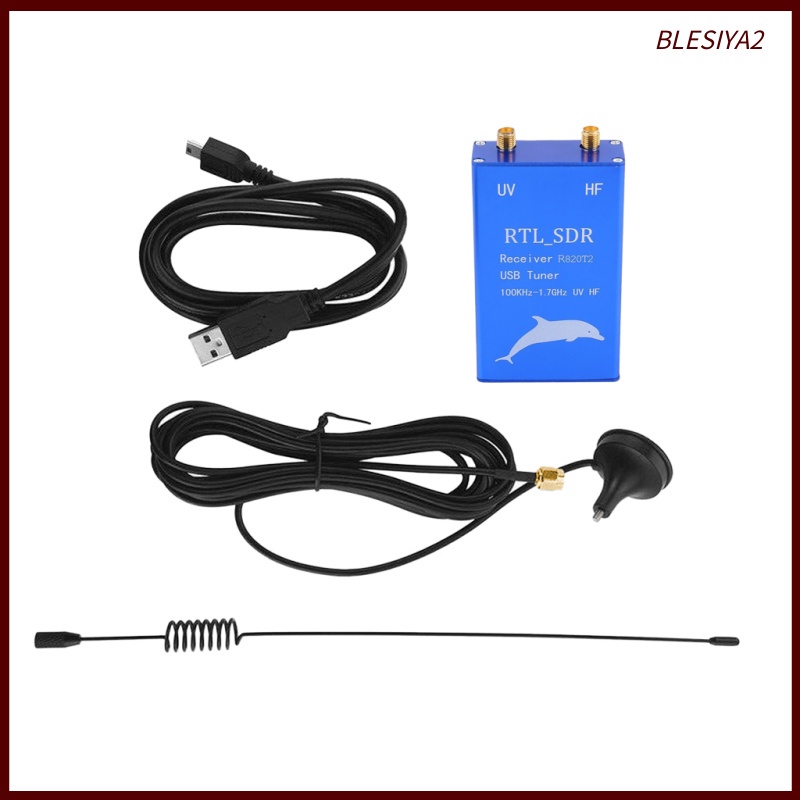

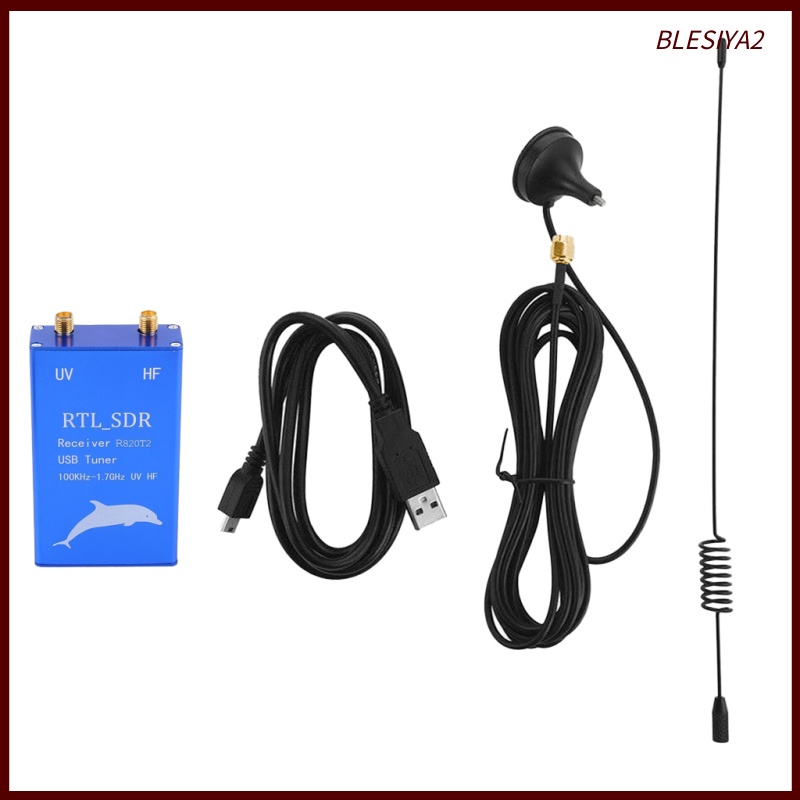

Package Includes:

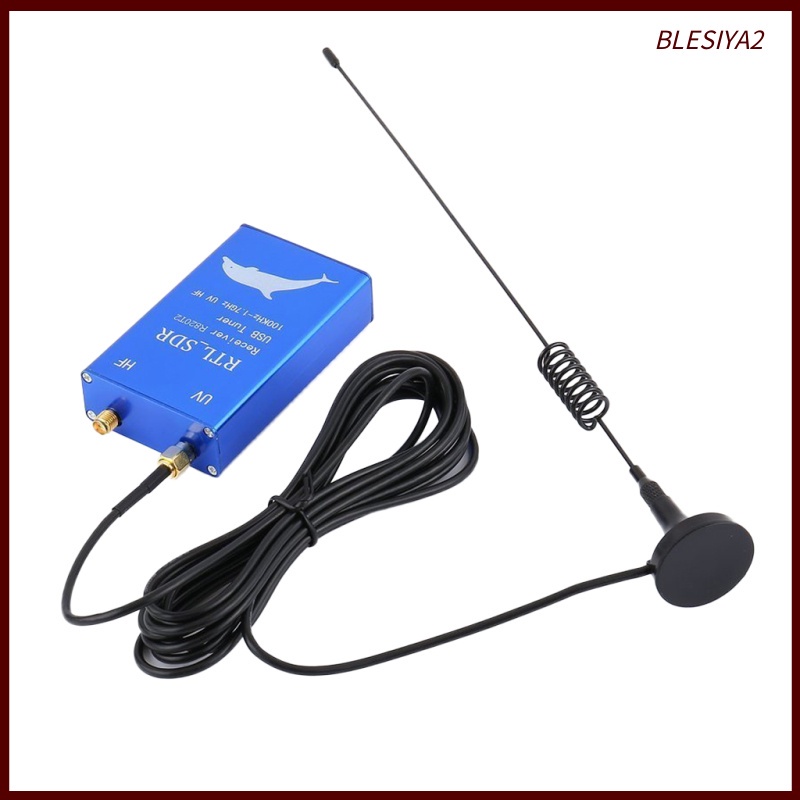

1 Piece 100Khz-1.7GHz Full Band UV HF RTL SDR+Upconverter USB Tuner Receiver
1 Piece Testing Telescopic Antenna1 Piece USB Cable

Note:

The color may have different as the difference display, pls understand.
Please allow 1-3mm error due to hand test.
