Features:
Stainless steel mast, a good AM / FM acceptable performance, the operating current of less than 0.5A
Noise less than 50DB, the service life of more than 50,000 times greater than the top edge 4KG
Waterproof performance, easy to install, optional multiple mounting head
Built-in import micro relays, 3C-2V coaxial cable, cable length according to customer set
Economy car automatic antenna
Five stainless steel mast
Mast length 39 inches
FM radio works well
Low noise, good waterproof
Easy installation
Wiring (three) connection: Red wire to the positive power supply
The black wire with grounding lug
The green line has two configurations: one is a direct positive power supply, so that the antenna with the power-off and landing, one is connected to another control lines, so the antenna can always control movements
Suitable for :
1996-2005 Mercedes-Benz S430 All All
1991-2001 Acura NSX All All
1984-1998 Jeep Grand Cherokee All All
1982-2001 Pontiac Firebird All All
1960-1999 Cadillac Eldorado All All
1985-2001 Toyota Camry All All
1974-1989 Porsche 911 All All
Specification:
Material:Stainless Steel
Current: 0.7±0.2A
Working Voltage : DC12V
Voltage Range: DC10-14V
Cable length: 1200mm
Extend Around: 750mm
Under fender: 325mm
Cable: 75ohms cables,line length 1.5m
Plug: ISO DIN plugs
Installation Angle: 30°,23°,15°,8°,3°

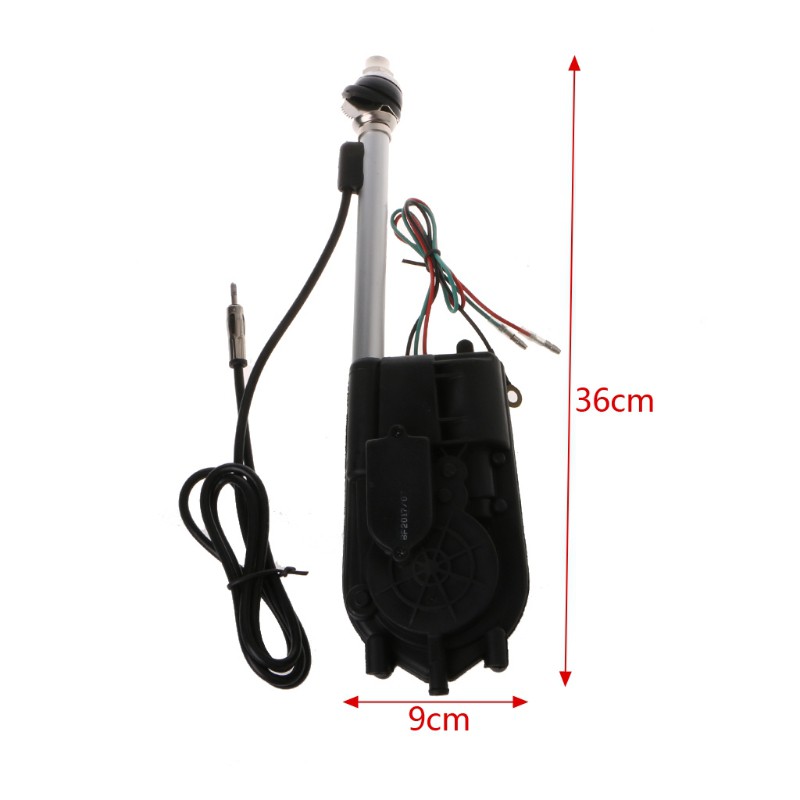

Size: 36x9cm
Quantity: 1 Set
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
