Asvn❤ Mô Đun Phát Tín Hiệu FG-100 DDS Mới

Giới thiệu Asvn❤ Mô Đun Phát Tín Hiệu FG-100 DDS Mới

Feature:

1. Small size, complete functions, simple operation and easy to carry

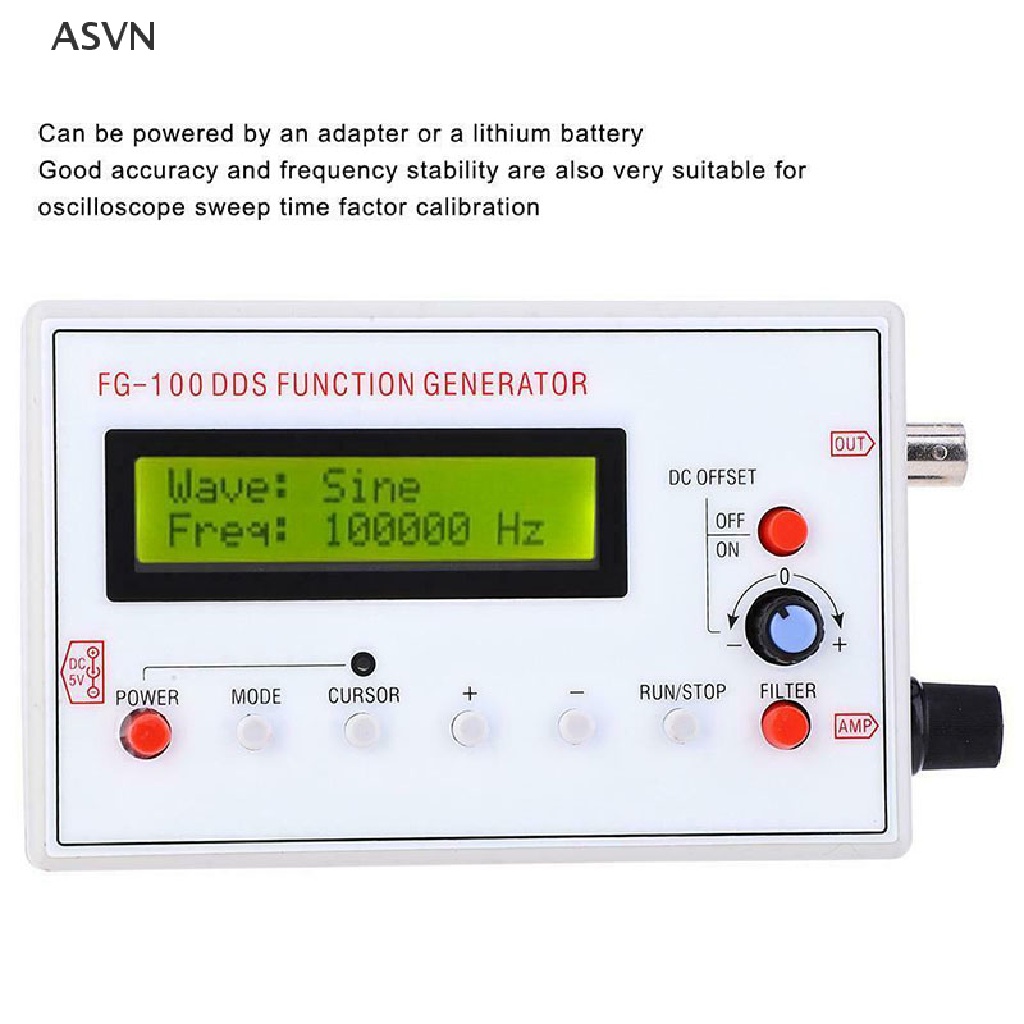

2. Can be powered by an adapter or a lithium battery
3. Together with the oscilloscope, it can be used for testing and debugging of electronic circuits, testing and measuring the frequency characteristics and impulse response of audio amplifiers.
4. Good accuracy and frequency stability are also very suitable for oscilloscope sweep time factor calibration
5. The output waveform includes Sine, square, triangular, CW sawtooth and CCW sawtooth


Specification:

Item Type: Function Signal Generator
Frequency Range: Sine wave 1Hz-500kHz, Other waveforms 1Hz-20kHz
Resolution: 1Hz
Output Waveform: Sine, square, triangular, sawtooth, reverse sawtooth
Sine Wave Distortion: <1% below 1kHz, <0.5% above 1kHz
Output Amplitude: Maximum ± 10V(P-P)
Output Impedance: 50Ω
DC Offset: Maximum ± 10V, with shutdown function
There are filters that can be turned on and off, which can well adapt to sine and pulse waveform output
Power: DC3.5-10V
It is recommended to choose DC5V when using adapter, and 3.7V lithium battery when battery powered

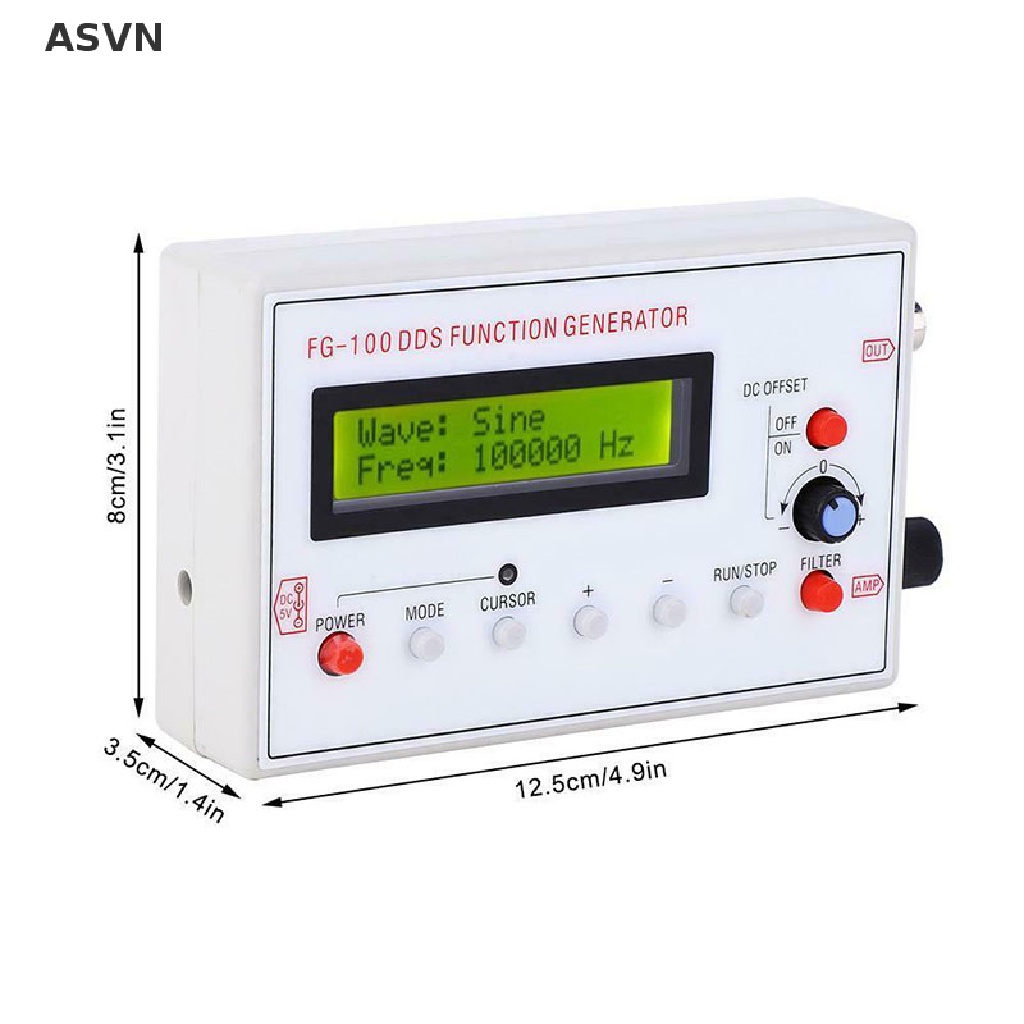

Machine Size: Approx. 12.5 x 8 x 3.5cm / 4.9 x 3.1 x 1.4in


Package List:

1 x Signal Generator

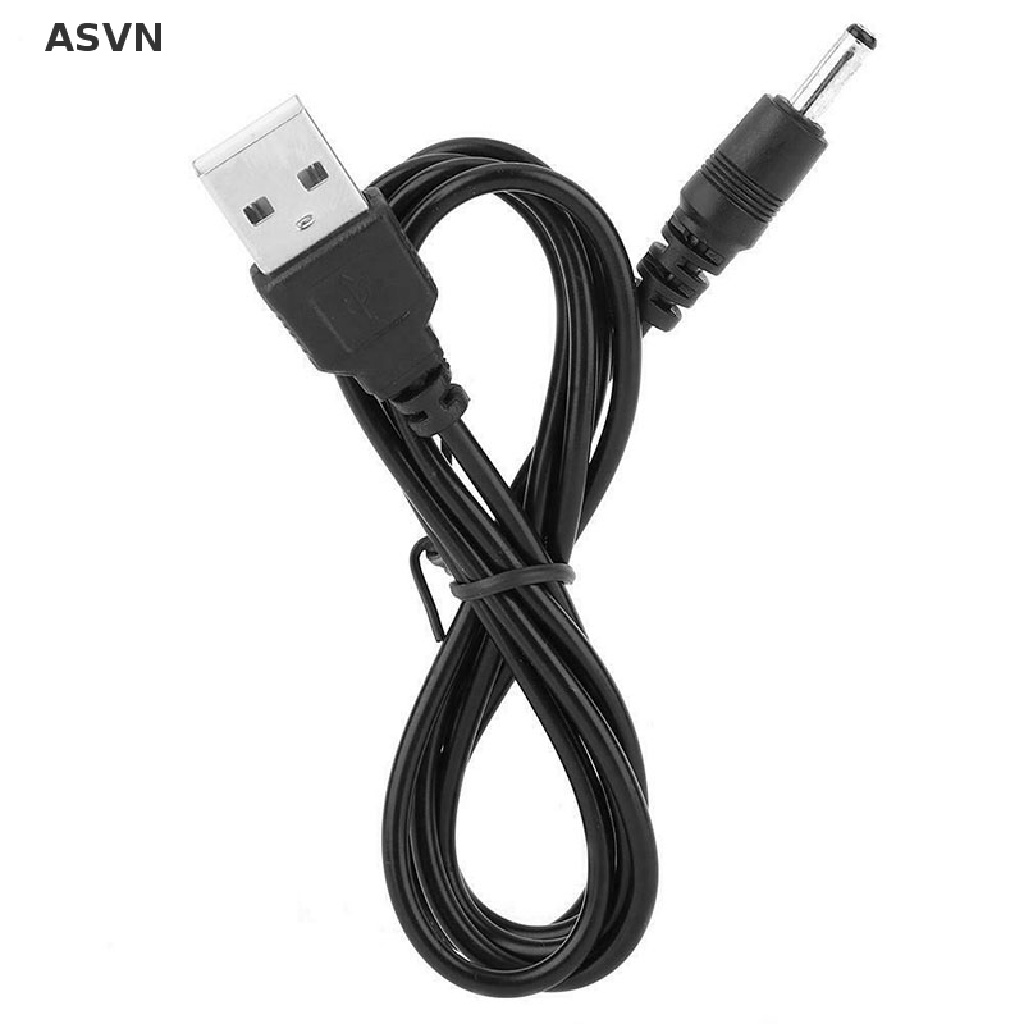

1 x USB Cable

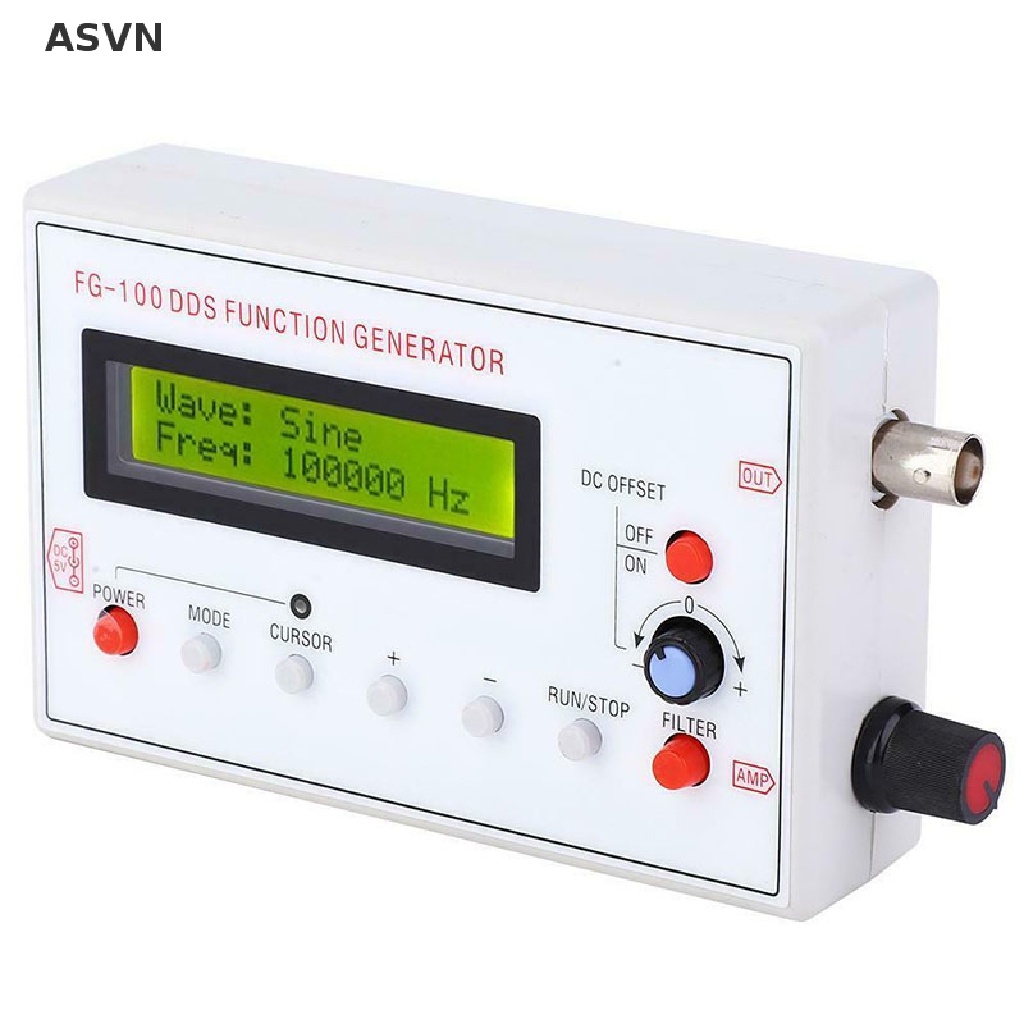

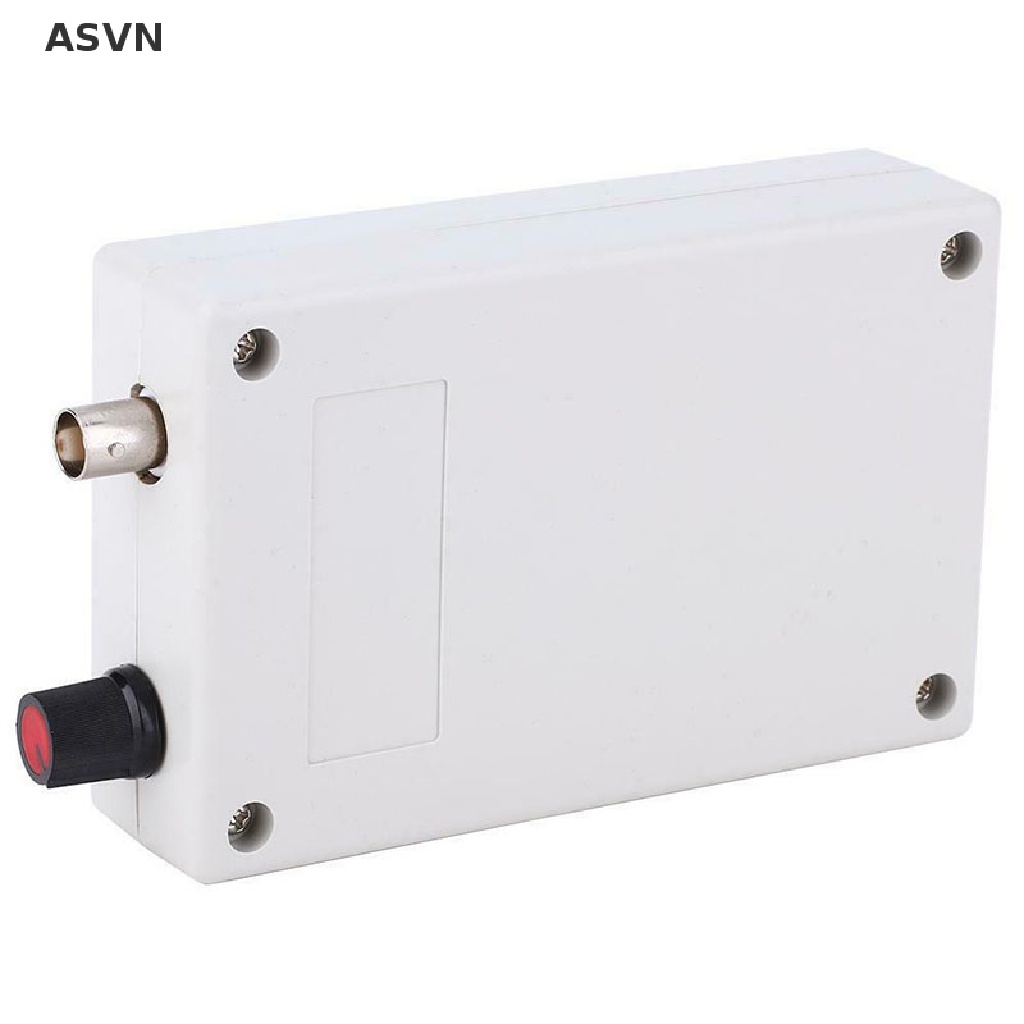

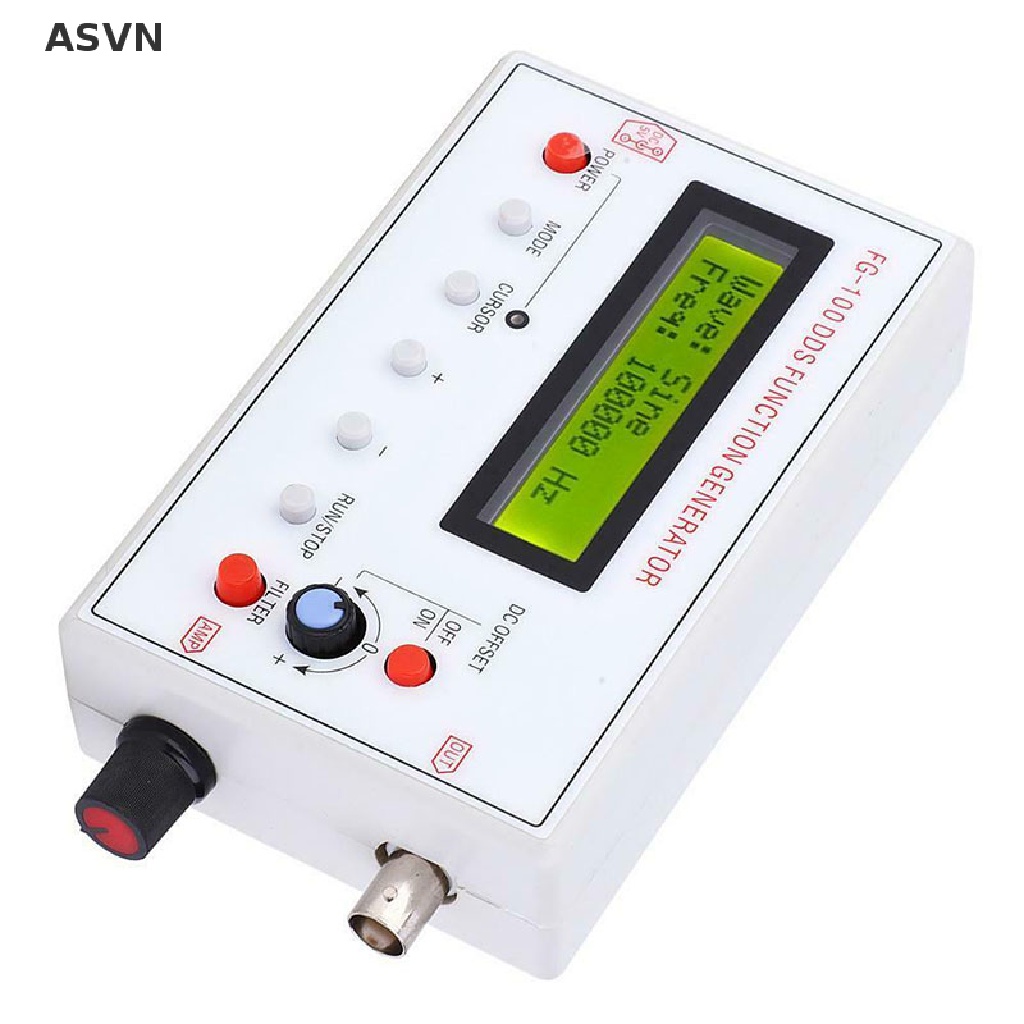

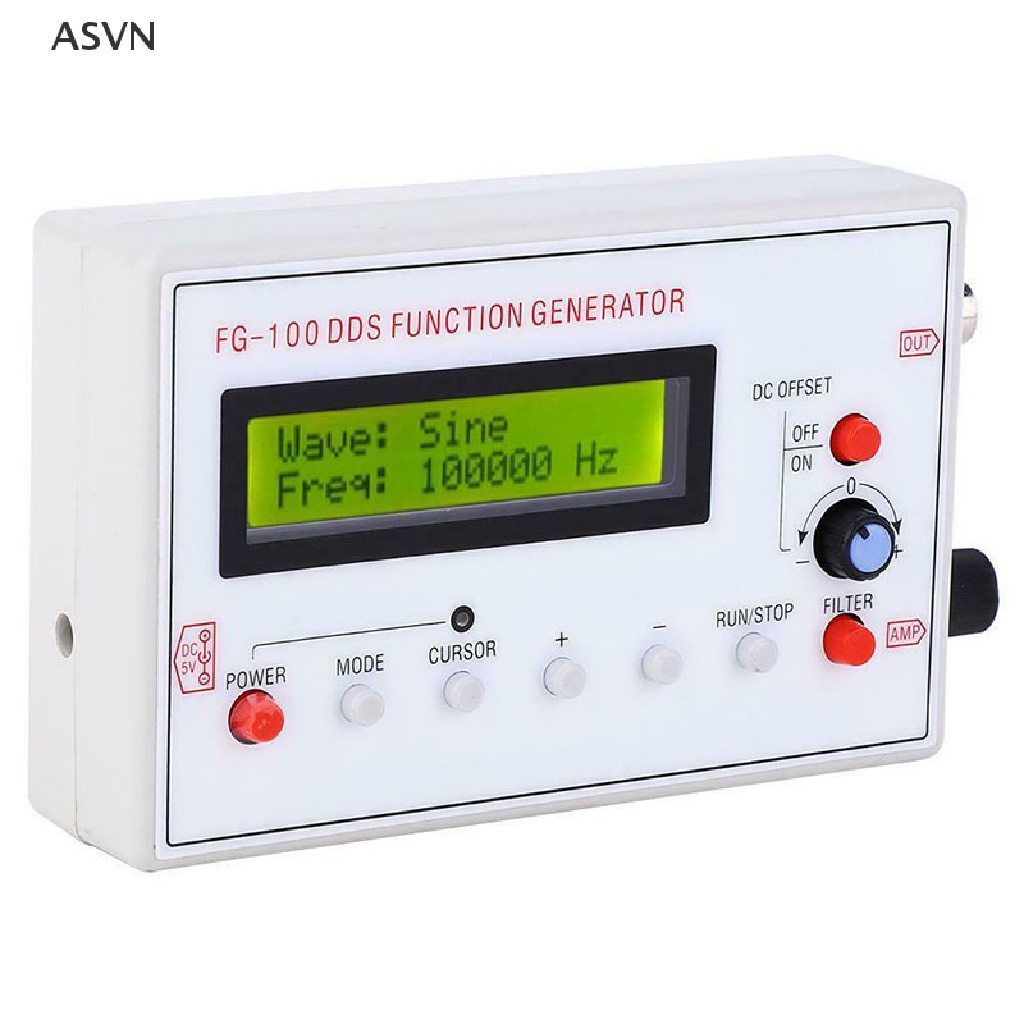

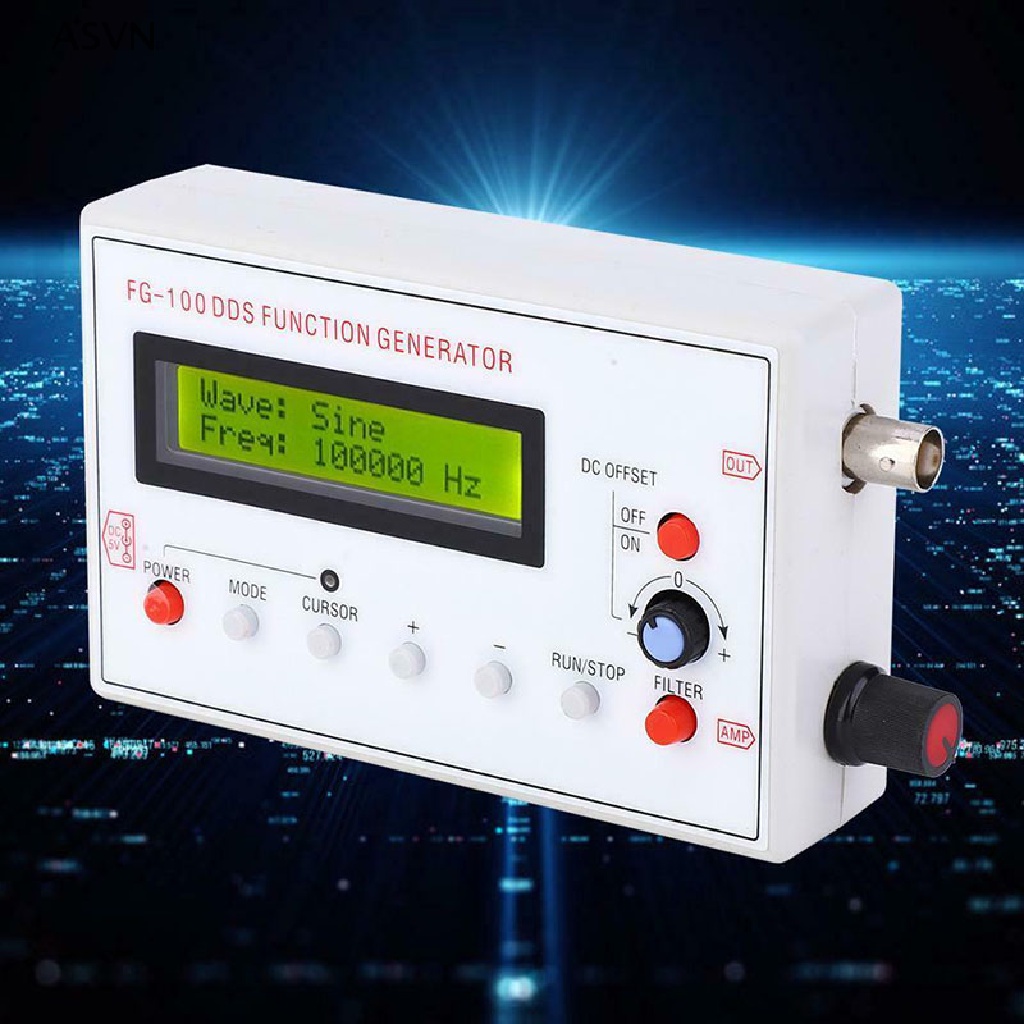

Hình ảnh sản phẩm
