Giới thiệu Bảng điều khiển liên tục tiện dụng cho TV LED 10-42 inch
100% brand new and high quality
Material: Electrical components
Color: See pictures
Common Electronic symbolic code of Backlight:
VCC: The positive of voltage supply、Circuit supply voltage (voltage is usually 12V or 24V)
ON/OFF,ON,EN,ON_BL:Switch signal pin
PWM,PDIM,VDAJ,BL-PWM:Brightness adjusting pin
GND: Ground (negative electrode)
LED+: the positive electrode of Light emitting diode (lamp)
LED-: the negative electrode of Light emitting diode (lamp)
Application:
Product features:

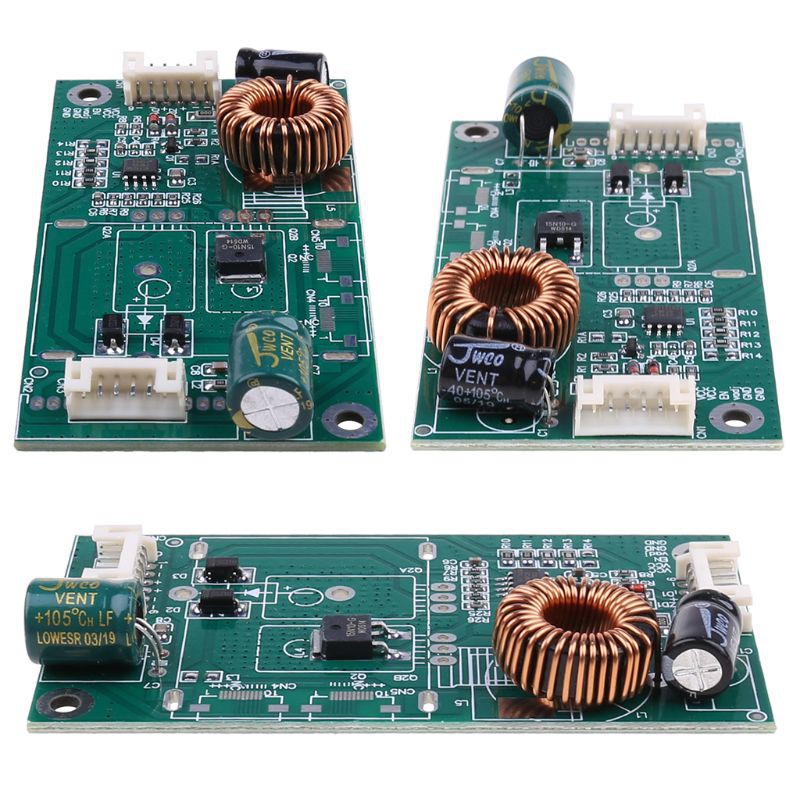

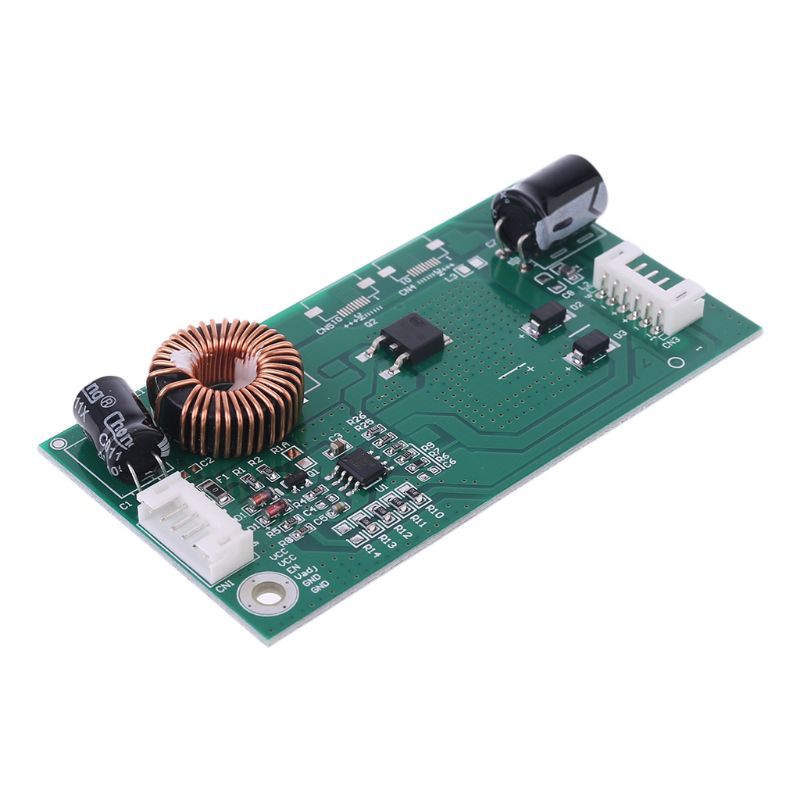

10-42 inch LED Backlight Lamp Driver Board Constant current board
BOOST structure
Conversion efficiency reached more than 92%
You can use the 12V power supply to reduce the system cost!
This product is constant current board, voltage is automatically adapted
The temperature rise is controlled at about 25℃(Temperature rise = device surface temperature - ambient temperature)
Limit parameters:
When to 24V input: Vout = 75V Vout = 720mA maximum or 60W
When to 12V input: Vout = 75V Iout = 400mA maximum or 30W
No Retail Packages
Quantity:1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
