Bảng mạch 6 kênh không dây IOR DC12V 433MHz

Giới thiệu Bảng mạch 6 kênh không dây IOR DC12V 433MHz

DC12V 6 Way Wireless Switch Transmitter Receiver Learning Code Remote Control 6 Channel Module PCB Board 433MHz Frequency
Description:
100% brand new and high quality
Feature:
This 6-way wireless receiving controller can output switching signals for 6 relays.
It can make the equipment to be controlled can reach the forward and reverse rotation of the motor, and achieve the on-off switching of switches and various special control program requirements.
Has high sensitivity, stable working performance, low power consumption.
Easy and convenient to use, Only the wireless signal transmitted by the remote controller needs to be received and stored by the receiving controller, and the matched use can be realized.
Support jog, self-locking, interlocking or 1-3 relay self-locking, 4-6 relay interlocking and other function settings.
Mainly used in electric doors, windows, lifting equipment, LED light, lifter, industrial control and security protection fields.

Output Method:
Unlocked signal-press No. 1 key of remote control to learn
Signal self-locking-press No. 2 key on the remote control to learn
Signal interlocking-press key 3 on the remote control to learn
1-3 way non-locking, 4-6 way self-locking-press No. 4 key on the remote control to learn
1-3 way non-locking, 4-6 way interlocking-press No. 5 key of remote control to learn
1-2 way non-locking, 3-6 way interlocking-press No. 6 key of remote control to learn

Learning methods and steps:
1.Press the learning button of the receiving module-the light is on, indicating that the learning state is entered.
2.Press any key on the remote control-the light flashes to off, indicating that the learning has been successful.

Clear saved information:
Press and hold the learning button of the receiving module for about 8 seconds until the indicator light is off, indicating that the stored information has been successfully cleared.

Specifications:

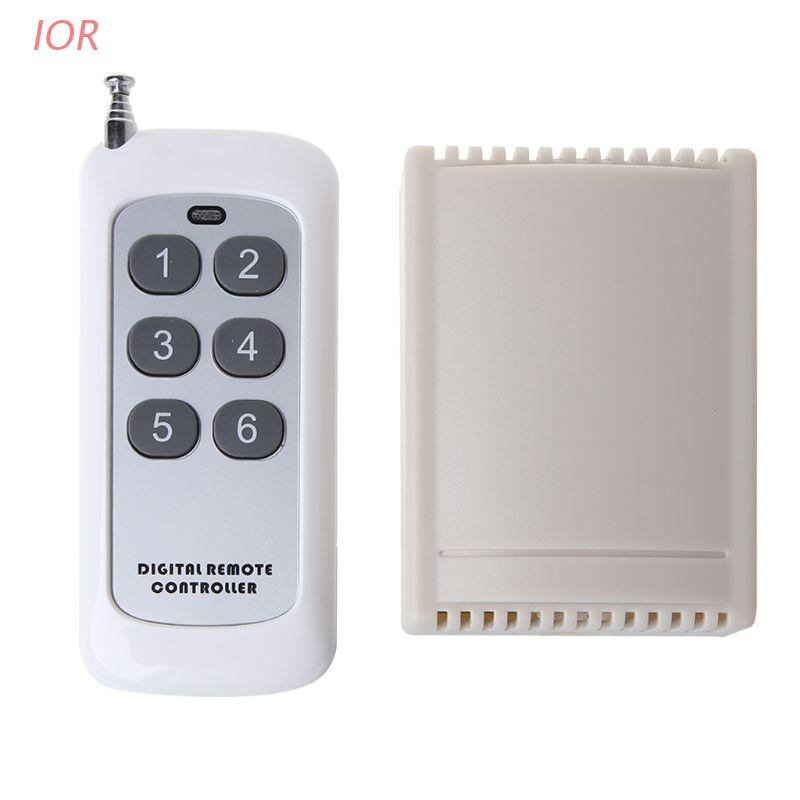

Item Type: Receiver+Remote Control
Material: ABS
Size: receiver: 74x53x28mm/2.9x2.08x1.1in, remote control: 40x92x14mm/1.5x3.6x0.5in
Color: White
Working frequency: 433MHz
Channel: 6 CH
Working Voltage: DC12V
Max power: 120Wx6
Standby current: 6mA
Sensitivity: -110dBm
Modulation: AKS
Remote control distance: app.300m(open space)
Quantity: 1 Set

Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x Receiver
1 x Remote Control

Hình ảnh sản phẩm
