Bảng Mạch Bảo Vệ Pin 16s 48v 20a 18650 Lifepo4

Giới thiệu Bảng Mạch Bảo Vệ Pin 16s 48v 20a 18650 Lifepo4

16 string 48V LiFePo4 battery protection board. With equalization, the same port 30A, 4-16 string universal, can be directly downgraded.
Scope of application: 18650 special lithium battery protection board, scooter, drift car protection board, solar street light, LED protection board, motorcycle lithium battery protection board, tricycle power protection board, backup power lithium battery protection board.
Continuous Discharge Current: 20A
Instantaneous discharge current:100A
Charging voltage: 60V
Maximum charging current: 20A
Overcharge detection voltage: 3.75 +/- 0.025V
Overcharge protection delay: 100ms
Overcharge release voltage: 3.6 +/- 0.05V
Battery balance detection voltage: 3.6 +/- 0.025V
Battery balance release voltage: 3.6 +/- 0.05V
Battery balance current: 40 +/- 5A
Overdischarge detection voltage: 2.1 +/- 0.08V
Overdischarge detection delay: 100ms
Overdischarge release voltage: 2.3 +/- 0.1V
Overcurrent detection voltage: 200mV
Overcurrent detection delay: 15ms
Overcurrent protection current: 120 +/- 20A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: Less than or equal to 15 mohm
Working current: Less than or equal to 60uA
Sleep current (when the battery is over-discharged): Less than or equal to 10uA
Temperature range: -30/+80 Celsius
Colour: sier + green
Material: metal + PCB

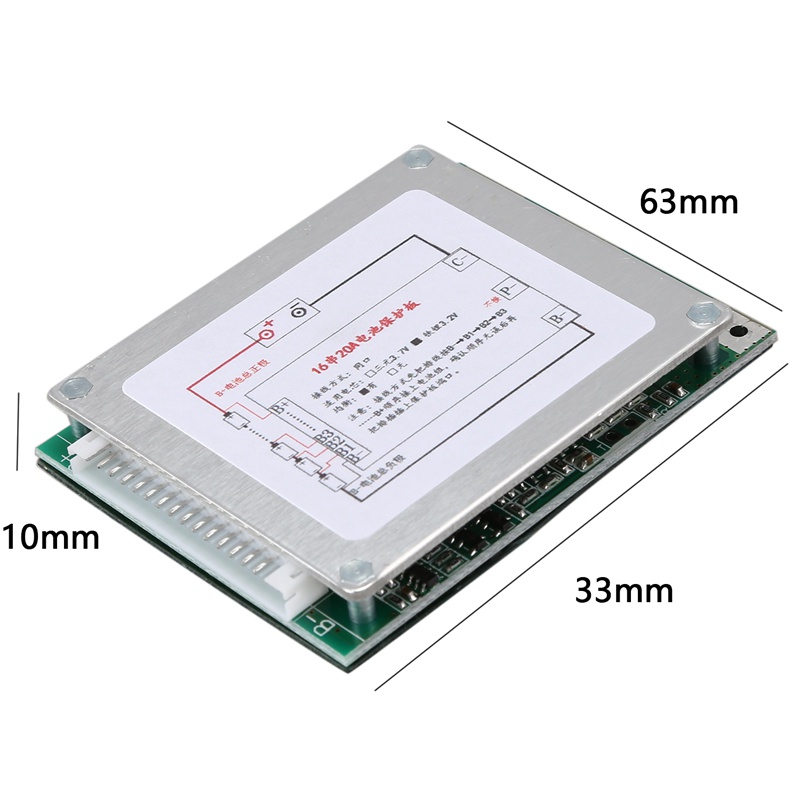

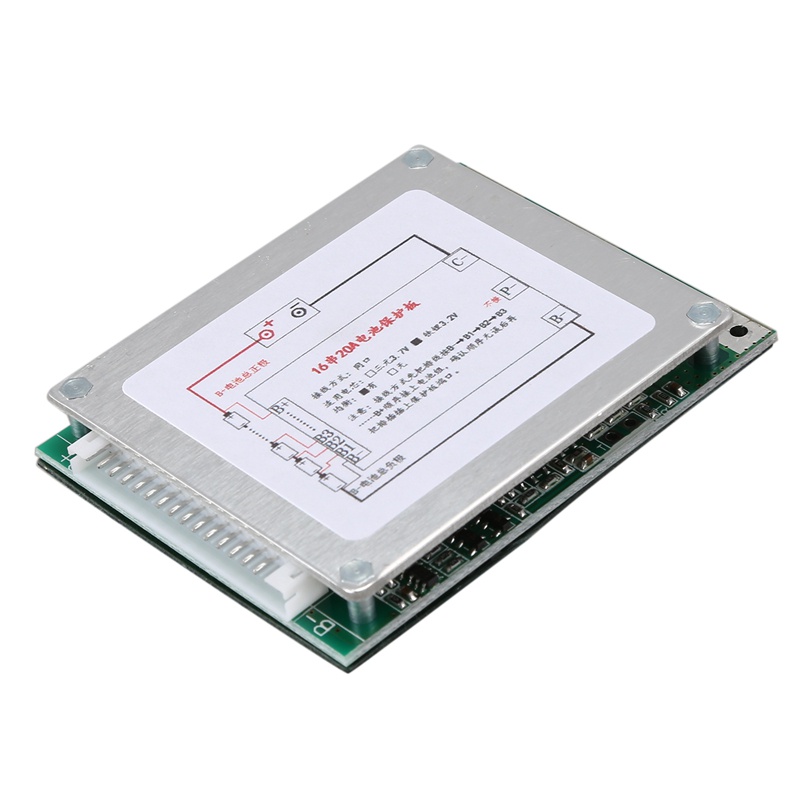

Size: 63*33*10mm
Package Contents:
1 x Li-ion Battery Protection Board

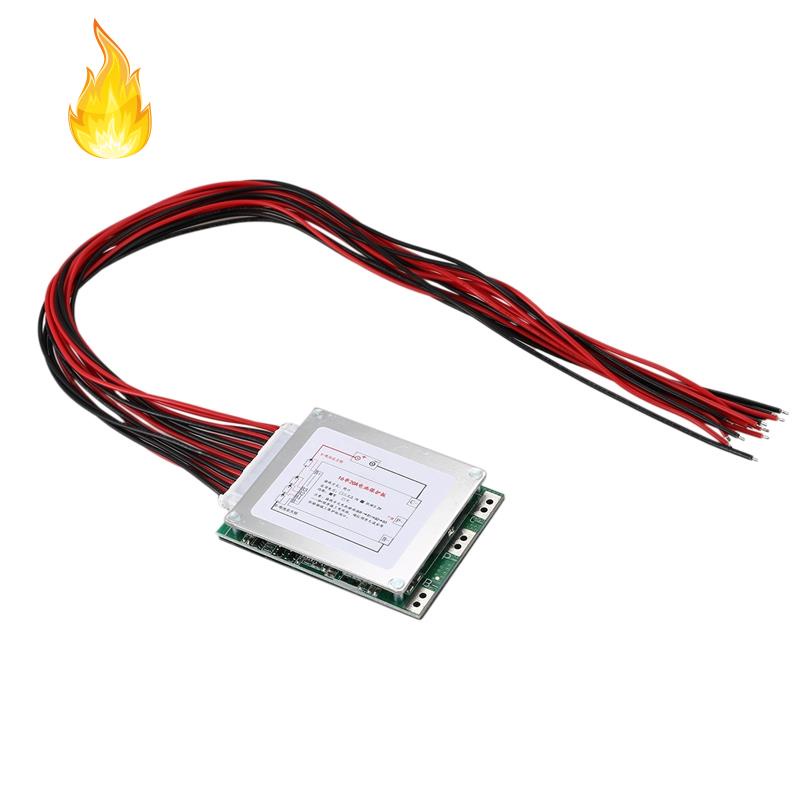

1 x Set of terminal linesOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

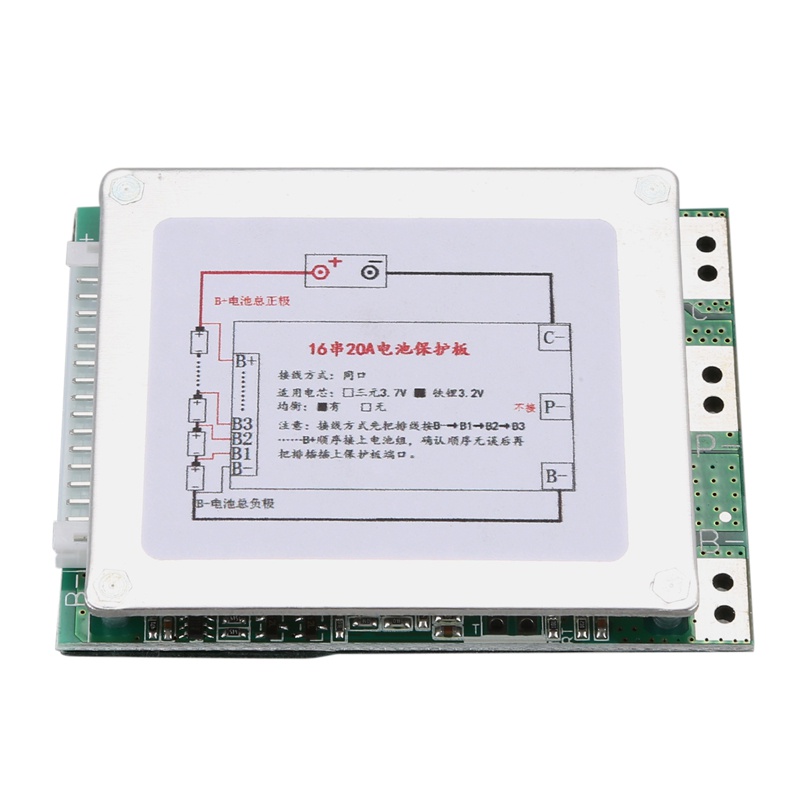

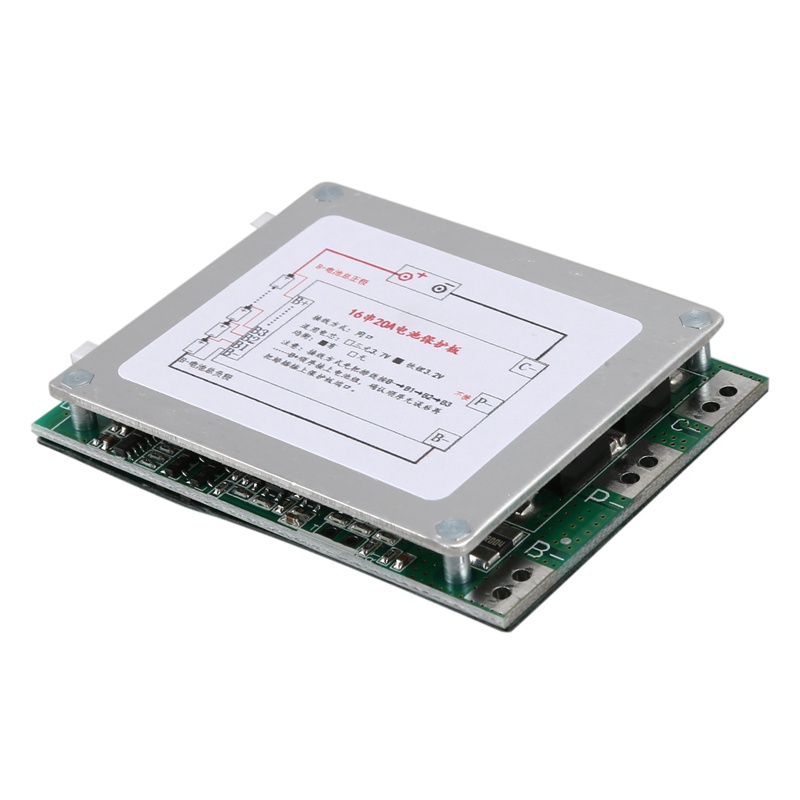

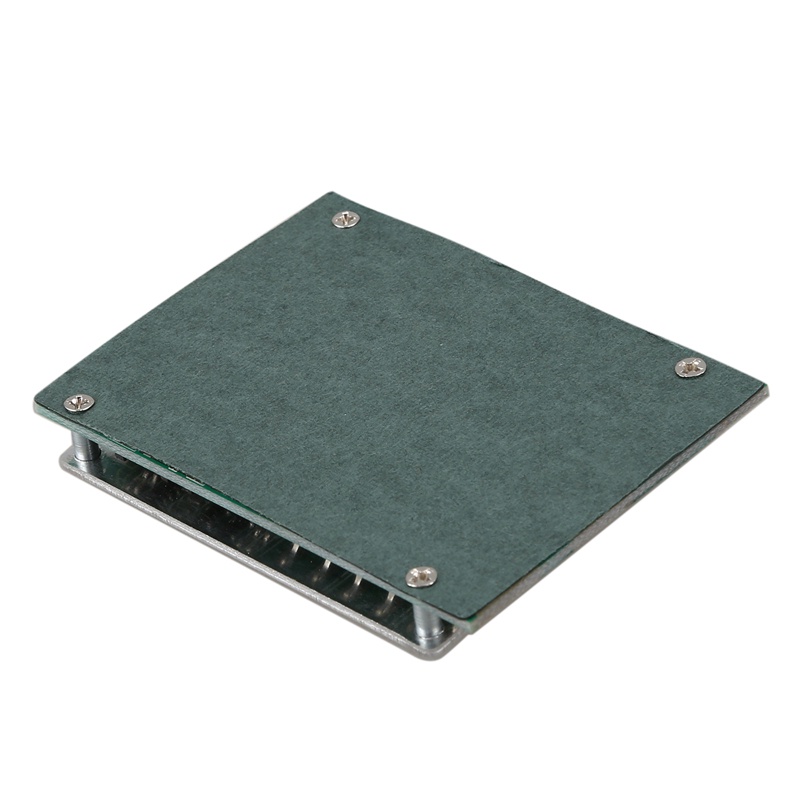

Hình ảnh sản phẩm
