Giới thiệu Bảng mạch bảo vệ pin Li-ion 18650 10S 36V 30A
10S 36V 30A Battery Protection Board Li-ion Cell 18650 Battery Protection BMS PCB Board100% brand new and high quality.
Features:
The protection board is for 10 series cell Li-ion batteries, it can be used for 3.7V ternary batteries, manganese acid batteries and cobalt acid batteries.
Support overcharge protection, over-discharge protection and short circuit protection.
It is suitable for electric car, electric power assistant car, skateboard car, inverter, etc.
With temperature control protection function, safe and reliable.
Specifications:
Applicable voltage: 36V
Applicable power: <1000w
Max. working current: 30A
Continuous maximum current: 20A
Overdischarge protection voltage: 2.6v
Overcharge protection voltage: 4.25v
Charging current: max. 20A
High temperature discharge: 75 ℃
Low temperature charge: - 7 ℃
Weight: about 60g

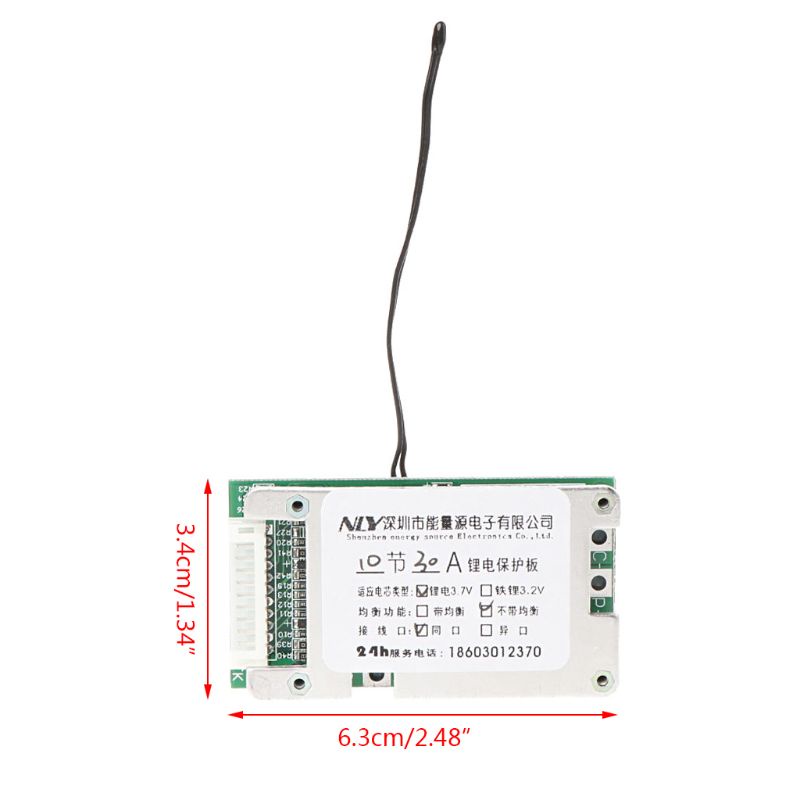

Size: 64mm*35mm*9mm
Note:
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:

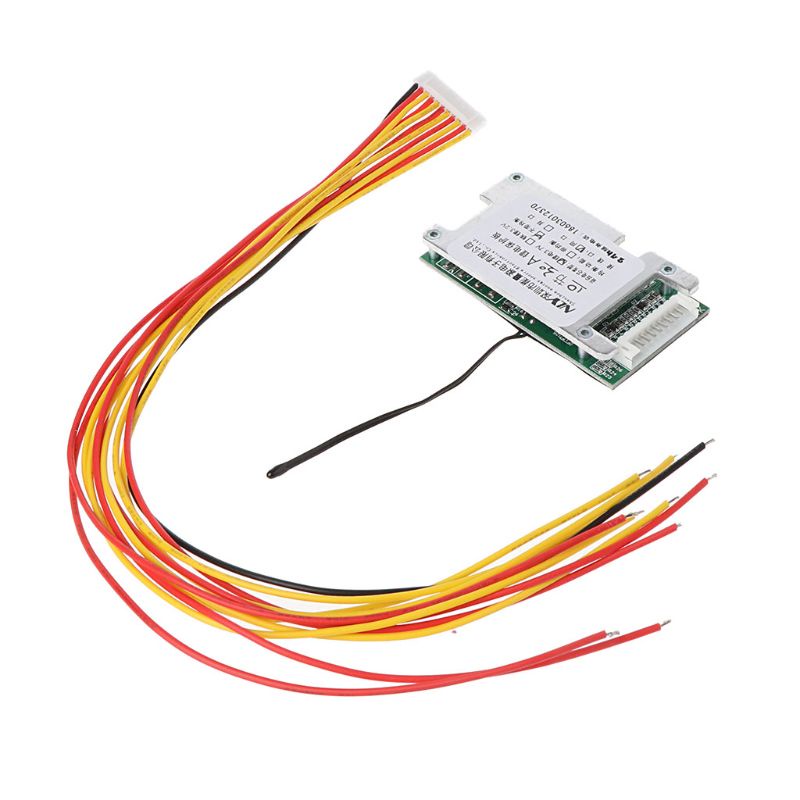

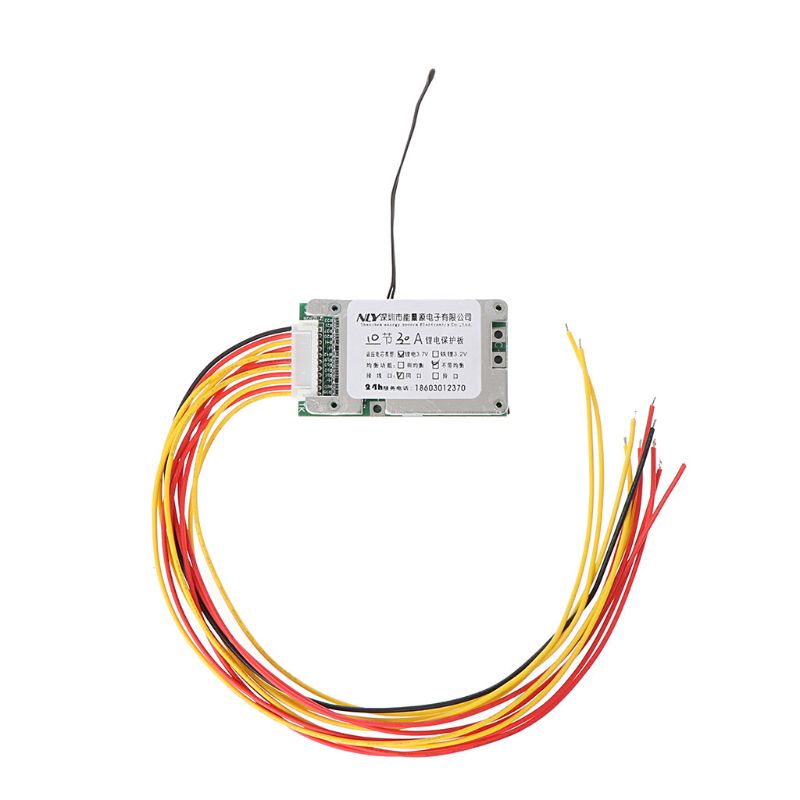

1 × Protection Board

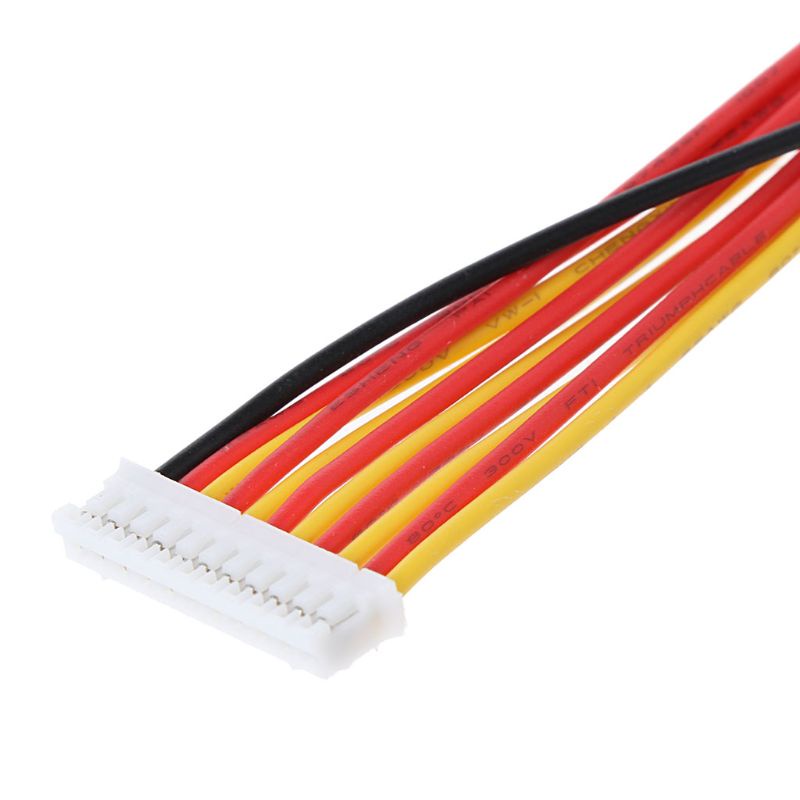

1 × Cable
