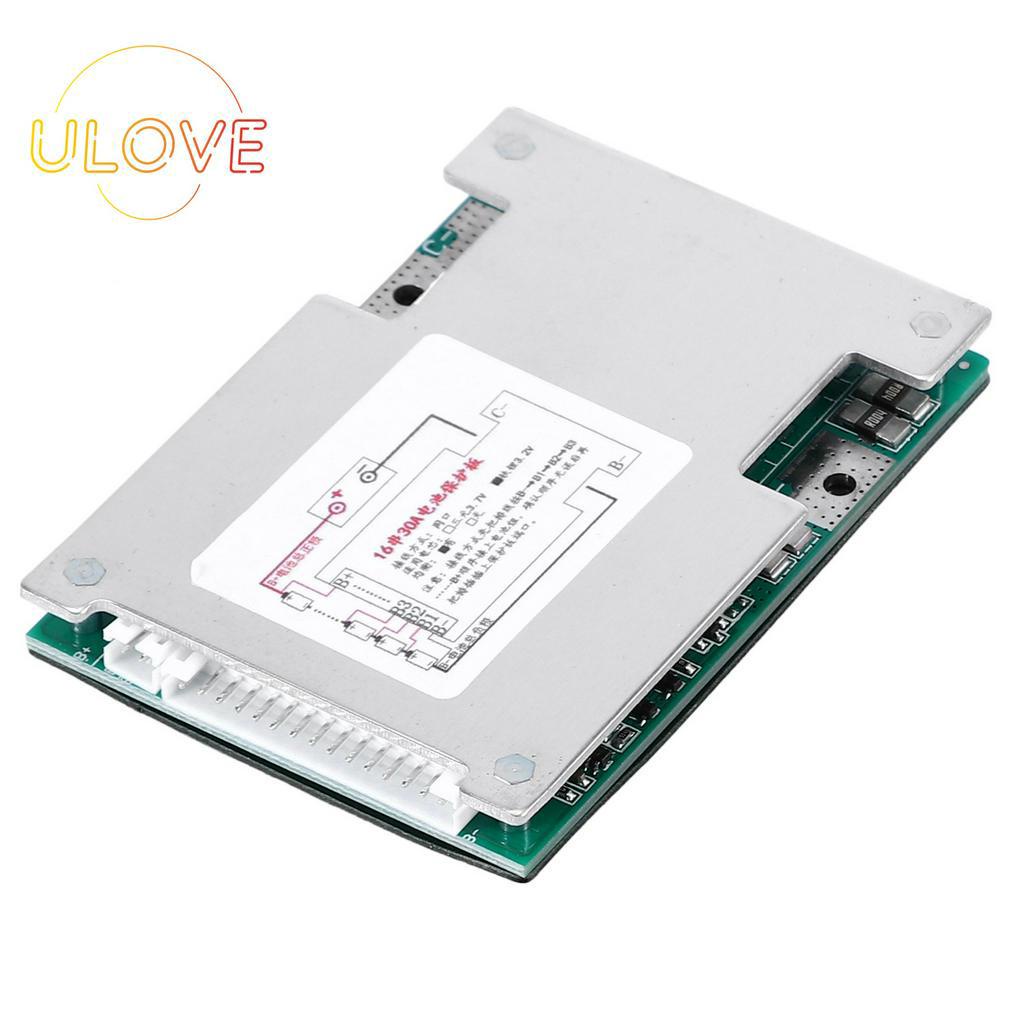

Bảng Mạch Bảo Vệ Pin Lithium 16s 48v 30a Lifepo4

Giới thiệu Bảng Mạch Bảo Vệ Pin Lithium 16s 48v 30a Lifepo4

16 string 48V LiFePo4 battery protection board. With equalization, the same port 30A, 4-16 string universal, can be directly downgraded, no need to
Scope of application: 18650 special lithium battery protection board, scooter, drift car protection board, solar street light, LED protection board, motorcycle lithium battery protection board, tricycle power protection board, backup power lithium battery protection board
Continuous Discharge Current: 30A
Instantaneous discharge current:100A
Charging voltage: 60V
Maximum charging current: 30A
Overcharge detection voltage: 3.75±0.025V
Overcharge protection delay: 100±30ms
Overcharge release voltage: 3.6±0.05V
Battery balance detection voltage: 3.6±0.025V
Battery balance release voltage: 3.6±0.05V
Battery balance current: 36±5A
Overdischarge detection voltage: 2.1±0.08V
Overdischarge detection delay: 100ms
Overdischarge release voltage: 2.3±0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 10ms
Overcurrent protection current: 130±20A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: less than equal 15mΩ
Working current: less than equal 50uA
Sleep current (when the battery is over-discharged): less than equal 10uA
Temperature range: -30/+80°C
Size: 80*55*10mm
colour:Sier + green
Material:Metal + PCB
Package Contents:
1 * Li-ion Battery Protection Board
1 * Cabel wireOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
