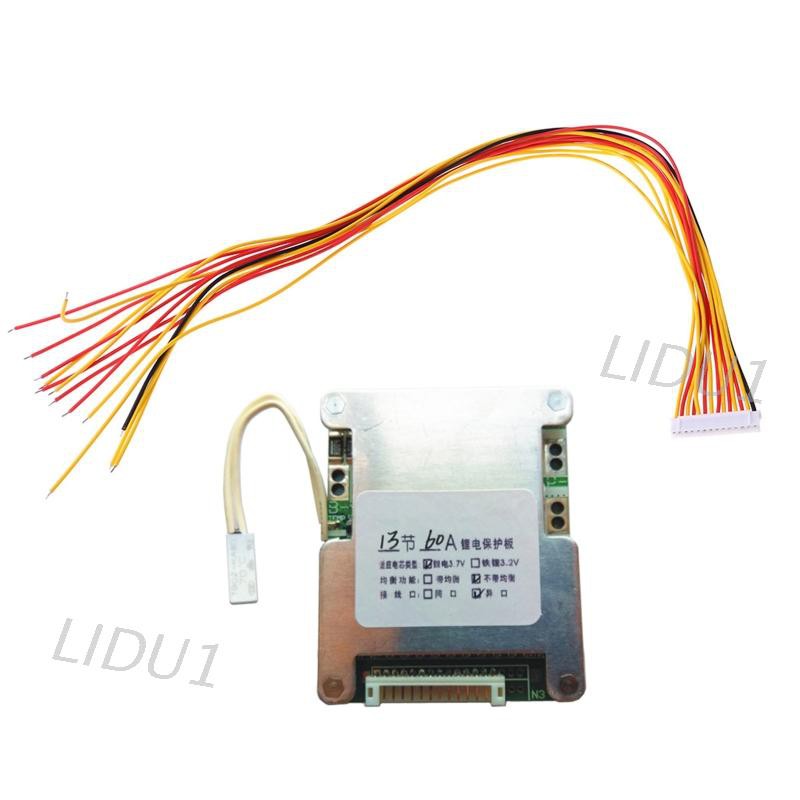

Giới thiệu Bảng Mạch Cân Bằng Pin Li-Ion Bms Pcb 13s 48v 60a
#13S #48V #60A #Battery #Protection #Board #Li-ion #Cell #Battery #BMS #PCB #Equalizer #Board13S 48V 60A Battery Protection Board Li-ion Cell Battery BMS PCB Equalizer Board
Features:
100% brand new and high quality.
The protection board is for 13 series cell Li-ion batteries, it can be used for 3.7V ternary batteries, manganese acid batteries and cobalt acid batteries.
Support overcharge protection, over-discharge protection, overcurrent protectionand short circuit protection.
It is suitable for electric car, electric power assistant car, skateboard car, inverter, etc.
With temperature control protection function, safe and reliable.
Specifications:
Applicable voltage: 48V
Applicable power: ＜2500W
Max. working current: 60A
Continuous maximum current: 40A
Overdischarge protection voltage: 2.6V
Overcharge protection voltage: 4.25V
Charging current: max. 10A
High temperature discharge: 75 ℃
Low temperature charge: -7 ℃
Weight: about 60g
Size: 70×56×9mm
Note:
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 × Protection Board
1 × Cable
